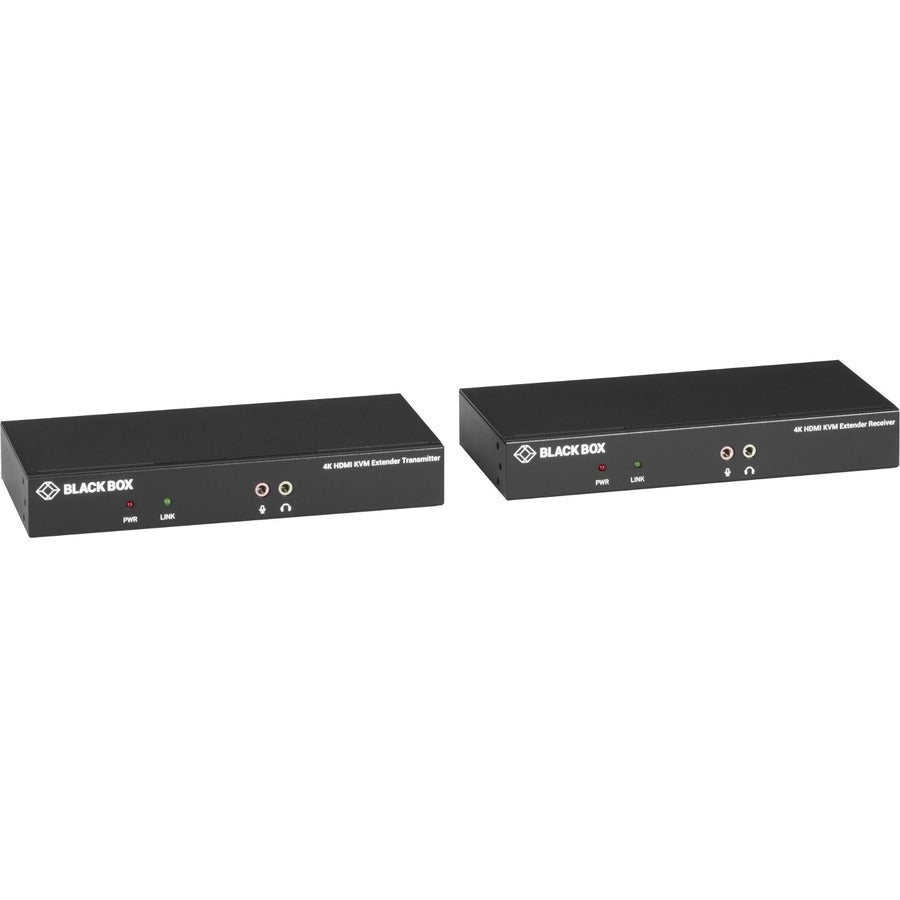

Black Box KVXLCH-100 Video Extender Transmitter/Receiver
The KVX HDMI KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 328 feet (100 meters). PC connection cables are included with this product, making it a solution that is ready to use right out of the box.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.
KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.
KVX is TAA compliant and backed by free lifetime technical support.
KVX is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
- HDMI video resolution up to UHD 4K (3840x2160 at 30Hz)
- Remote access up to 100 meters over CAT5/6
- Transparent USB 2.0 extension supports HID devices, mass storage devices
- Supports RS-232 peripheral (serial) devices
- Bi-directional audio via speaker/mic connection
- Local video port loopback for monitoring on transmitter (TX) unit
- Supports EDID pass-through
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.83"
Transmitter Width: 3.27"
Transmitter Depth: 7.09"
Receiver Height: 0.83"
Receiver Width: 3.27"
Receiver Depth: 7.09"
Transmitter Weight (Approximate): 13.12 oz
Receiver Weight (Approximate): 13.28 oz
Taa Compliant: Yes
Country Of Origin: United States
Product Series: KVX
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: KVXLCH-100
Product Name: KVXLCH-100 Video Extender Transmitter/Receiver
Manufacturer Part Number: KVXLCH-100
Manufacturer Website Address: http://www.blackbox.com

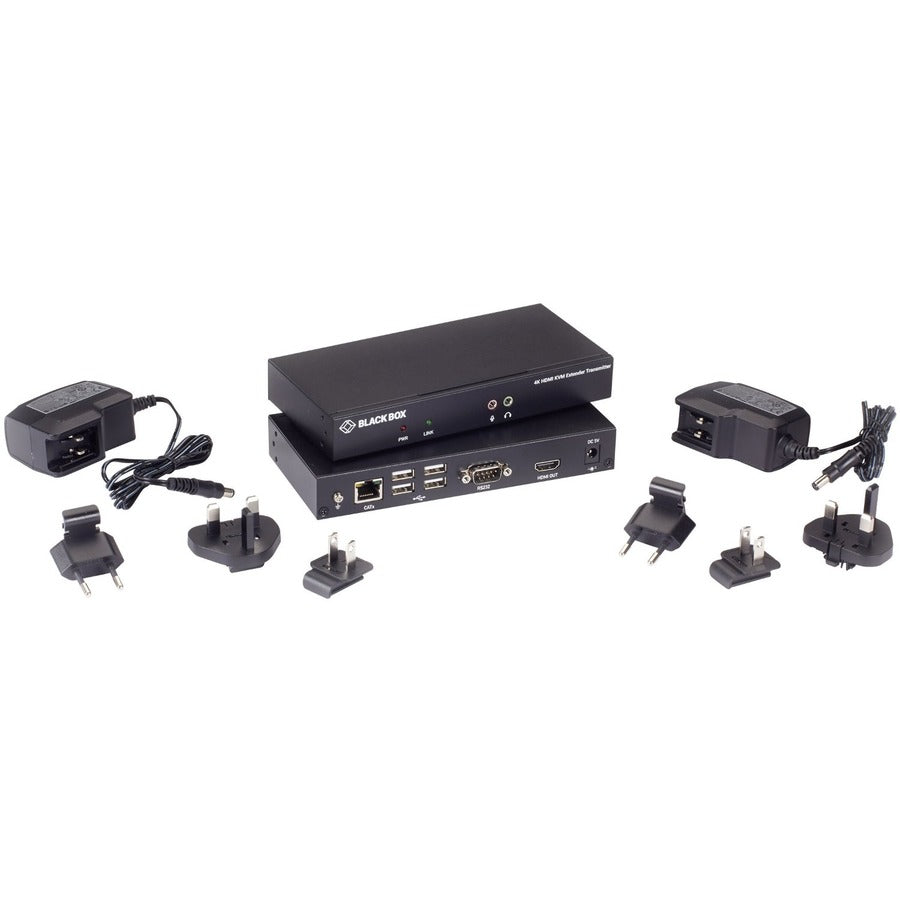

Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
- 1 x HDMI cable 1.2m (4 ft.)
- 1 x 3.5mm audio cable 1.8m (6 ft.)
- 1 x USB-B to USB-A cable 1.8m (6 ft.)
- 2 x Deskmounting brackets (with screws)
Limited Warranty: 2 Year
