Black Box Industrial Ethernet Extender Multi-Drop Unit - G-SHDSL 2-Wire, 15-Mbps
Ethernet extension, especially in harsh environments, is now incredibly easy and economical. You can connect industrial Ethernet devices and remote LANs over your existing CATx voice-grade twisted pair cable at speeds and distances you didn't think possible.
Get the best possible speed.
Make connections at speeds up to 15 Mbps and across distances ranging from 0 to 6.4 miles (10km). An auto-rate feature senses the ideal speed/distance configuration and ensures that you achieve the highest possible speed on each connection. While you can configure your desired rate via DIP switches or Telnet, if conditions aren't ideal, the extender will automatically set the rate.
Use as a repeater in multidrop applications
Need to connect multiple devices? Use the extender as a repeater to transmit 4.3 miles per hop. Now you can stretch your Ethernet links more than four miles to connect multiple industrial devices, such as cameras, kiosks, train switches, etc., daisychain style. It's the ideal solution for transportation, security, stadium, campus, highway, and other industrial applications
Withstands temperature extremes

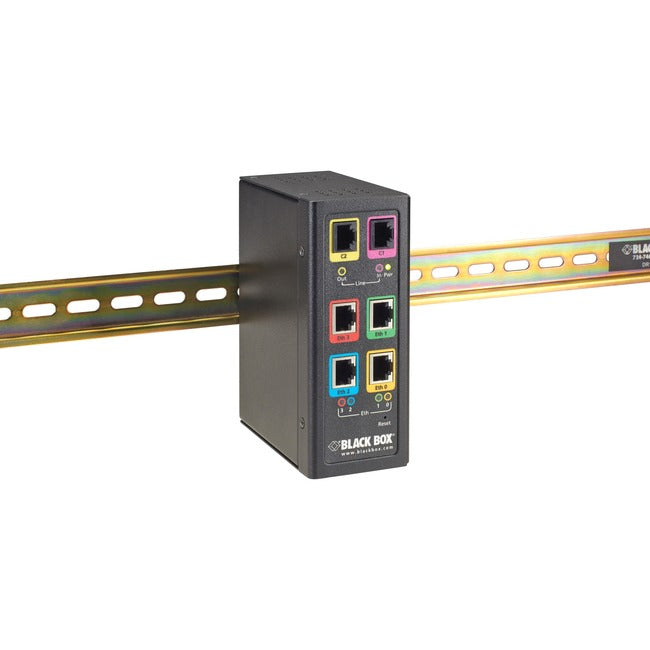

This rugged extender can withstand temperature extremes of -40° F to 185° F so you can use it to connect Ethernet-enabled industrial devices such as sensors, cameras, security equipment, etc. It's ideal for use in transportation systems, manufacturing, and other harsh, remote environments. The aluminum enclosure meets IP40 specifications and a DIN rail clip is included. The unit is designed to be used in a controlled environment and not to be exposed to the weather.
Clear, reliable transmissions
You can go far beyond the 100-meter Ethernet distance on an existing twisted-pair cable and be assured of clear, reliable transmissions, even in noisy environments. You'll eliminate the expense and hassle of installing new fiber or low-capacitance cable.
Use in pairs
This MDE units are designed to be used with the local unit as the starting point. You'll need one MDE unit for each connection.
Quadruple your connections

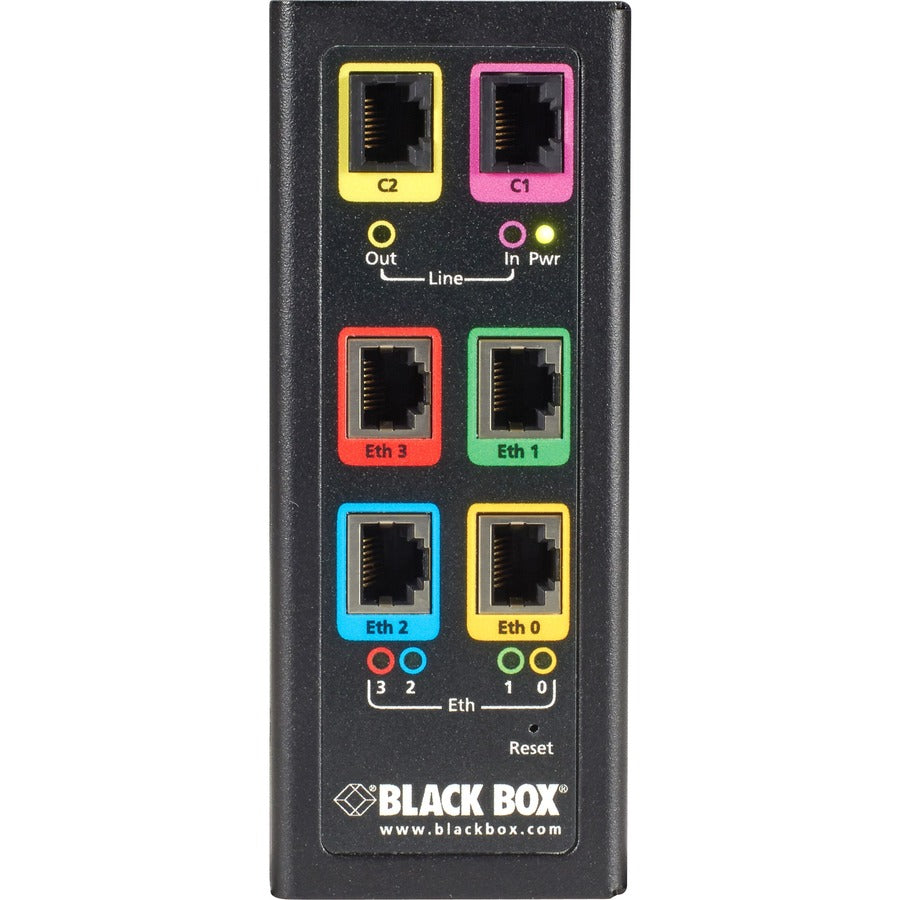

The remote extender features a built-in, four-port, auto-sensing 10-/100BASE-TX Ethernet switch so you can connect four additional devices. A built-in auto-MDIX (automatic medium-dependent interface crossover) means you can use either straight-through or crossover cable, whichever is handy, to connect your Ethernet devices.
Easy setup
Plug-and-play means that you'll be up and running in seconds. The auto-MDIX also detects the polarity of the cable on each port and automatically configures the signaling to match. There's no user configuration on your part whatsoever.
The extender operates at layer 2 and transparently passes all higher-layer protocols including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO. In addition, the extender features automatic learning, aging, and filtering to keep local, traffic local ensuring efficient utilization of the long-range link.
LB532A-MDE Distance per Hop
Distance on CAT5/5e/6 UTP, 24 AWG (0.5 mm)
Far reach
The extender has a max reach of 30 km.
Line Rate (kbps)Mileskm 192 4.3 6.9 256 4.3 6.9 512 4.2 6.7 768 3.7 5.5 1024 3.5 5.6 1280 3.5 5.6 1536 3.5 5.6 2048 3.1 5.0 2304 3.1 5.0 4608 2.1 3.4 5696 1.7 2.7
- Use as a repeater in multi-drop applications and get distances of 6.4 miles per hop
- Economical - use your existing CAT5/5e/6 voice-grade twisted pair cable
- Tough - meets IP 40 specs and withstands temperatures of -40° F to 185° F
- Ideal for connecting remote offices, kiosks, guard stations, traffic lights, train sensors, cameras, and other industrial equipment
- Plug-and-play! Just plug it in, power it on, and it's up and running
- Autosenses the data rate up to 15.3 Mbps to provide the most reliable connection depending on your environment
- Select rates via DIP switches or console Telnet
- Includes a built-in, four-port, auto-sensing 10-/100-BASE-TX switch
- Built-in auto-MDIX means you can use straight-pinned or cross-over cable
- Transparently passes high-layer protocols with support for 802.1Q VLAN tagging
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Industrial Ethernet Extender Multi-Drop Unit - G-SHDSL 2-Wire, 15-Mbps
Manufacturer Part Number: LB532A-M-R2
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
