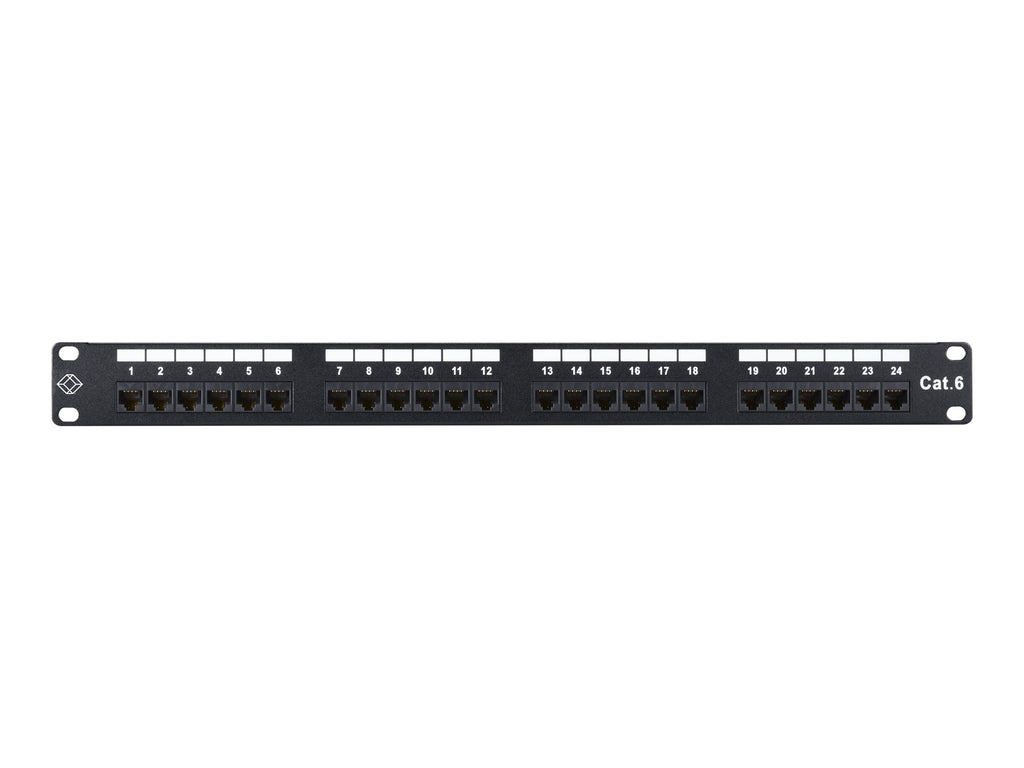

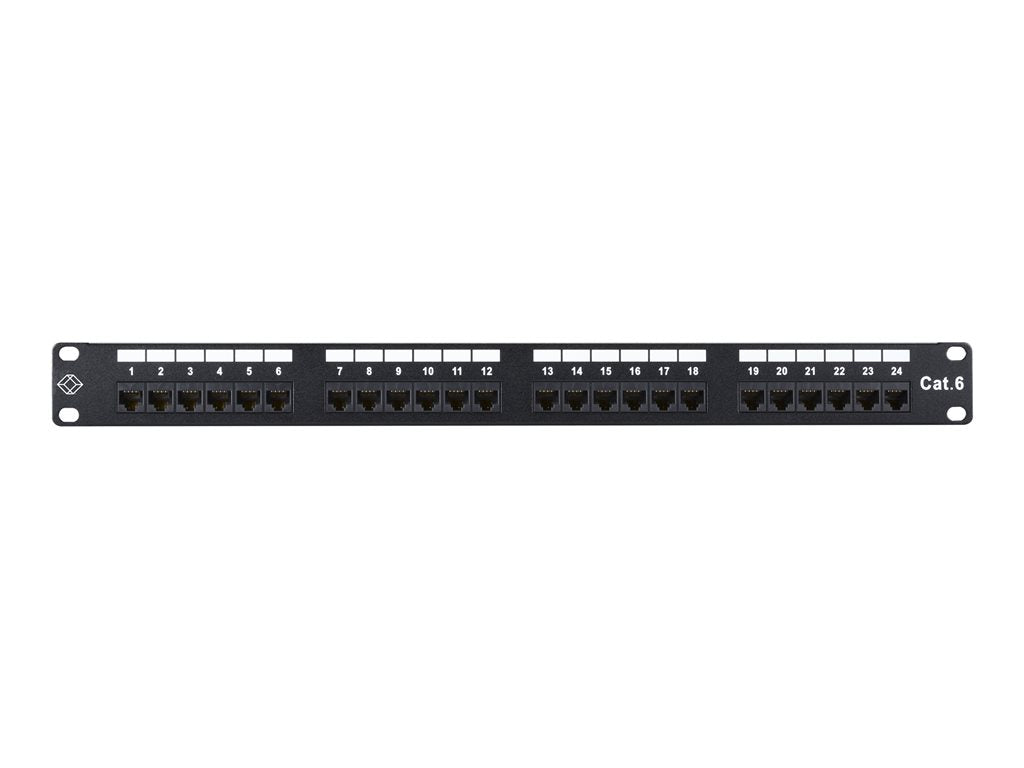

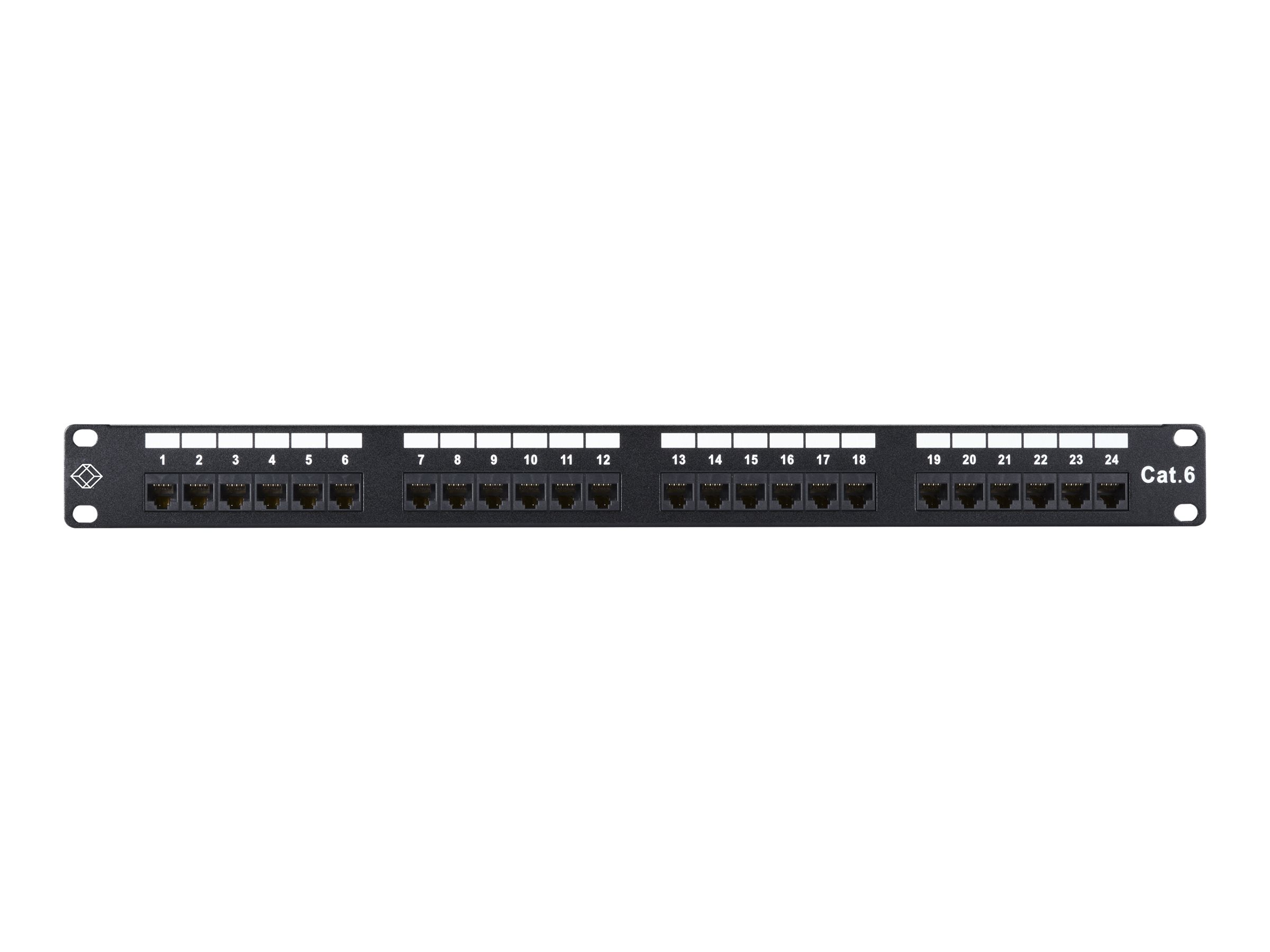

Black Box GigaTrue - Patch panel - unshielded - rack mountable, cabinet mountable - CAT 6 - RJ-45 X 24 - 1U - 19",Black Box GigaTrue patch panel - 1U - 19" - unshielded"
Component level tested patch panel for better performance. Component level tested panel that provides better performance and stability in the overall channel the panel by itself can pass CAT6. Includes cable management bars that make organization easier. Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications. Tested for NEXT Power Sum NEXT FEXT Return Loss and attenuation to 250 MHz. Universal wiring- panel is supplied with labeling for both T568A and T568B. Paired punchdown sequence enables pair twist within 1-2" of termination. Redesigned IDC 110 block features peaks to make lacing cable easier. Rolled-edge construction provides superior panel rigidity to eliminate flex during termination. Includes cable ties and mounting hardware.
- Component level provides better performance and stability in the overall channel

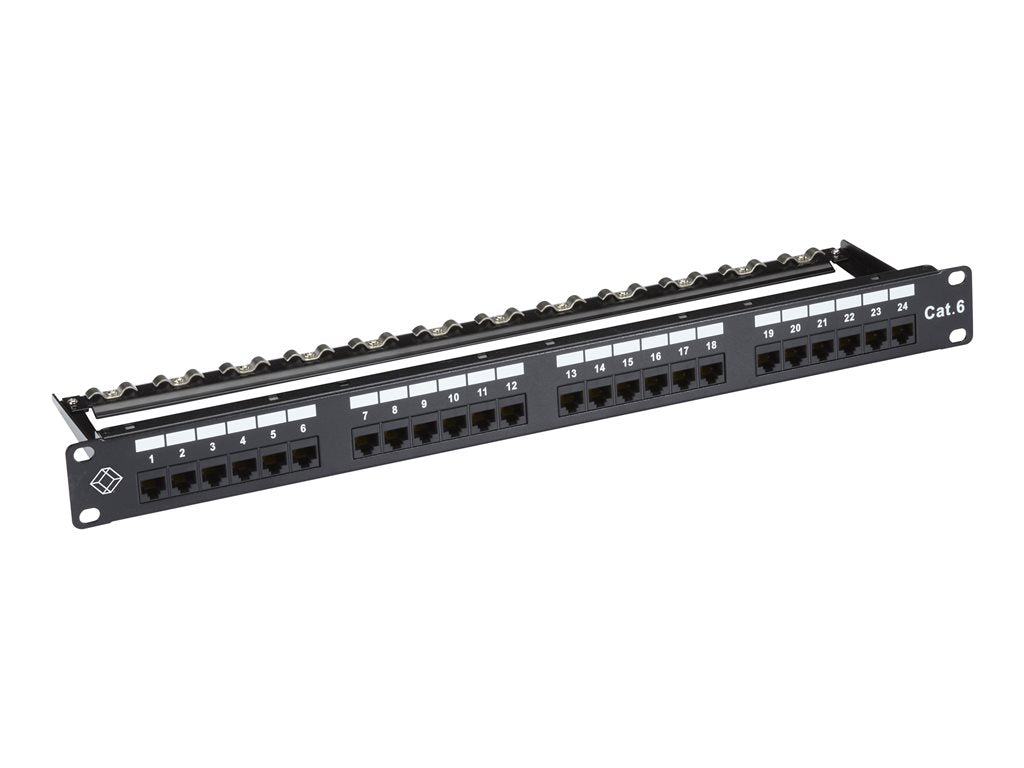

- Includes cable management bars that make organization easier
- Designed for use in our Component Level Verified GigaTrue channel
- Meets or exceeds ANSI/TIA/EIA-568-C CAT6 component performance
What's in the Box:
- CAT6 Panel
- Cables Ties
- (4) 10-32
- (4) 12-24 Cuphead Screws
- Stuffer Caps
- (1) Cable Support Bar
- Manual
