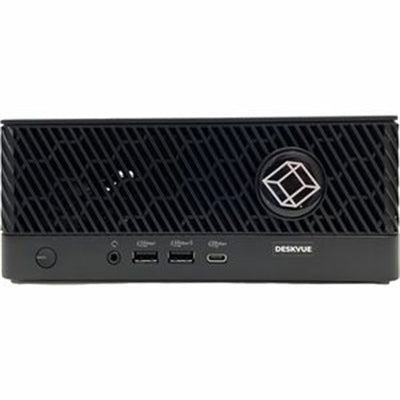

Emerald DESKVUE PE IP Multi-Source Receiver – Quad-Monitor 4K DisplayPort KVM
The Black Box Emerald DESKVUE PE is a professional-grade IP Multi-Source Receiver designed for operators who demand simultaneous access to multiple systems across high-resolution displays. This quad-monitor KVM over IP solution delivers real-time control of up to 16 systems across four 4K screens, with two supporting 5K resolution. Built for demanding control room environments, enterprise data centers, and mission-critical operations, the Emerald DESKVUE PE combines advanced display flexibility with reliable network-based access to physical and virtual infrastructure.
Whether you're managing complex broadcast operations, financial trading floors, security monitoring stations, or enterprise IT environments, this 4K DisplayPort receiver provides the precision performance and scalability your team needs. Its compact form factor, internal power supply, and multiple connectivity options make it an ideal choice for organizations requiring flexible, high-performance multi-source access without compromising on image quality or responsiveness.
Key Features
- Quad-monitor support with 4K resolution at 60 Hz on all four displays
- Dual 5K capability on two screens (5120 x 1440 resolution)
- IP-based multi-source receiver for access to up to 16 systems
- Mini-DisplayPort connectivity for high-bandwidth video transmission
- USB support for keyboard, mouse, and peripheral control
- RJ45 network interface for reliable IP connectivity
- Compact form factor with internal power supply
- Multiple USB and network ports for enterprise scalability
- Real-time simultaneous access across all connected monitors
- Supports both physical and virtual system access
Technical Specifications
| Specification |
Details |
| Product Name |
Emerald DESKVUE PE IP Multi-Source Receiver |
| Part Number |
EMD5004PE-R-R2 |
| Manufacturer |
Black Box |
| Monitor Support |
Quad-monitor (4 displays) |
| Maximum Resolution |
4096 x 2160 @ 60 Hz (all four monitors) |
| 5K Resolution Option |
5120 x 1440 on two screens |
| Video Interface |
Mini-DisplayPort |
| Network Interface |
RJ45 Ethernet |
| USB Support |
Multiple USB ports for peripherals |
| System Access |
Up to 16 systems over IP |
| Power Supply |
Internal |
| Form Factor |
Compact desktop receiver |
| Application |
Control rooms, enterprise environments, remote access |
Frequently Asked Questions
What is an IP Multi-Source Receiver and how does it work?
An IP Multi-Source Receiver like the Emerald DESKVUE PE allows you to access and control multiple computer systems from a single workstation over a network. It receives video, audio, and control signals via IP connectivity, enabling operators to switch between up to 16 different systems displayed across four high-resolution monitors simultaneously.
Can the Emerald DESKVUE PE support 5K resolution on all four monitors?
The Emerald DESKVUE PE supports 4K resolution (4096 x 2160 @ 60 Hz) on all four monitors. Additionally, two of the monitors can be configured for 5K resolution (5120 x 1440), providing flexibility for organizations with mixed display requirements and demanding visual workloads.
What types of environments benefit most from a quad-monitor KVM over IP solution?
A quad-monitor KVM over IP receiver is ideal for control rooms, security operations centers, financial trading floors, broadcast facilities, data center management stations, and enterprise IT environments where operators need simultaneous visibility and control across multiple systems and real-time data streams.
How many systems can I access with the Emerald DESKVUE PE?
The Emerald DESKVUE PE provides access to up to 16 different systems over your IP network. This scalability makes it suitable for large enterprise deployments where operators need flexible switching between multiple physical servers, virtual machines, and networked devices without requiring separate hardware for each connection.
