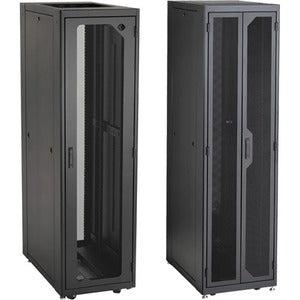

Black Box Elite Rack Cabinet
Elite Cabinets are top-of-the-line data and server cabinets designed to serve your data center for a lifetime. This cabinet line offers more features and options than any other Black Box cabinet. Choose from a pre-configured cabinet or have one customized to your specifications in only two days.
These cabinets feature heavy-duty, solid-steel construction. Two pair of M6 or 10-32 rails are marked with rack units and can be adjusted front to rear.
Doors have three hinges with a 180° swing for easy access and are easily reversible. Mesh doors feature high-flow mesh for maximum air circulation.
Elite Cabinets have ample room for cable management and feature extensive cable knockouts on the top, sides, and bottom for easy cable entry. Plenty of cable lacing points are built into the frame. A built-in universal PDU mounting bracket keeps power management out of the way.
Order a cabinet without a top panel if you wish to use the top opening as an additional 12U of racking space for rackmount fans or shallow components such as patch panels.
Elite Cabinets are Ladder Rack ready with the addition of the optional Ladder Rack Support Bracket Kit. For more information, contact Tech Support.
Elite Cabinets include leveling legs and casters, and they ship fully assembled. (Shipping is via motor freight.)
Customizable
If you prefer a configuration that is not on our Web site, Elite Cabinets can be customized to your specifications in two business days or less. For details, contact our FREE Tech Support.
Choose from the following Elite Cabinet sizes:
- 48"H (24U) x 30"W x 32"D
- 48"H (24U) x 24"W x 42"D
- 72"H (38U) x 30"W x 32"D
- 79"H (42U) x 24"W x 42"D
- 79"H (42U) x 30"W x 42"D
- 84"H (45U) x 24"W x 36"D
- 84"H (45U) x 30"W x 32"D
- 84"H (45U) x 30"W x 36"D
- 84"H (45U) x 24"W x 42"D
- 84"H (45U) x 30"W x 42"D
- 84"H (45U) x 30"W x 48"D
Choose your rails:
Add front and rear doors in a choice of these styles:
- Solid
- High-flow mesh
- Split high-flow mesh
- PLEXIGLAS®
- Split solid with fans
- Open with no doors
Select side panels:
- Solid
- High-flow mesh
- Open with no sides
Select a top panel:
- Solid
- Mesh
- Chimney top
- Single-fan, 10" , 550-cfm
- Dual-fan, 10" , 1100-cfm
- 3-fan, 4" , 225-cfm
- 6-fan, 4" , 450-cfm
- Open with no top panel
You can also add anti-tip legs. Standard keyed locks on doors can be replaced by a combination lock.
For details on having an Elite Cabinet built your way, contact our FREE Tech Support.
- This Elite Data Cabinet features 10-32 rails, a PLEXIGLAS® front door, a high-flow mesh rear door, and solid side panels.
- The top panel has (6) 4" fans.
- Doors have keyed locks for security.
- Heavy-duty, solid-steel construction.
- Includes a universal PDU mounting bracket.
- Extensive cable knockouts on the top, sides, and bottom.
- Multiple lacedown points throughout the cabinet.
- Adjustable bottom plate for passive cooling.
- Ships fully assembled. Shipping is via motor freight.
- Includes leveling legs and casters.
Product Type: Rack Cabinet
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Condition: New
Taa Compliant: Yes
Product Material: Mesh
Country Of Origin: United States
Assembly Required: No
Rack Height: 45U
Brand Name: Black Box
Form Factor: Floor Standing
Manufacturer: Black Box Corporation
Product Name: Elite Rack Cabinet
Product Line: Elite
Manufacturer Part Number: EC45U3048TPMS6NK
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Elite Rack Cabinet
- Leveling Legs
- Casters
Limited Warranty: Lifetime
