Black Box Elite EC24U3032TPMSSNK Rack Cabinet
Elite Cabinets are top-of-the-line data and server cabinets designed to serve your data center for a lifetime. This cabinet line offers more features and options than any other Black Box cabinet. Choose from a pre-configured cabinet or have one customized to your specifications in only two days.

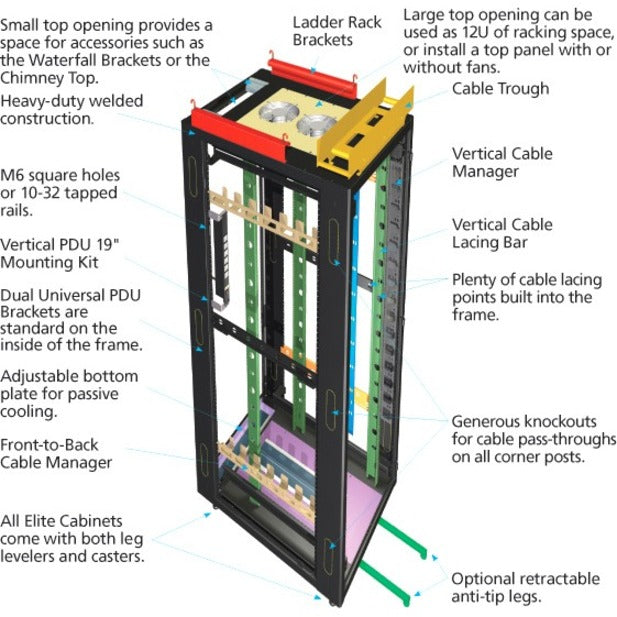

These cabinets feature heavy-duty, solid-steel construction. Two pair of M6 or 10-32 rails are marked with rack units and can be adjusted front to rear.
Doors have three hinges with a 180° swing for easy access and are easily reversible. Mesh doors feature high-flow mesh for maximum air circulation.
Elite Cabinets have ample room for cable management and feature extensive cable knockouts on the top, sides, and bottom for easy cable entry. Plenty of cable lacing points are built into the frame. A built-in universal PDU mounting bracket keeps power management out of the way.
Order a cabinet without a top panel if you wish to use the top opening as an additional 12U of racking space for rackmount fans or shallow components such as patch panels.
Elite Cabinets are Ladder Rack ready with the addition of the optional Ladder Rack Support Bracket Kit. For more information, contact Tech Support.
Elite Cabinets include leveling legs and casters. They ship fully assembled. (Shipping is via motor freight.)
Customizable
If you prefer a configuration that is not on our Web site, Elite Cabinets can be customized to your specifications in two business days or less. For details, contact our FREE Tech Support.
Choose from the following Elite Cabinet sizes:
- 48"H (24U) x 30"W x 32"D
- 48"H (24U) x 24"W x 42"D
- 72"H (38U) x 30"W x 32"D
- 79"H (42U) x 24"W x 42"D
- 79"H (42U) x 30"W x 42"D
- 84"H (45U) x 24"W x 36"D
- 84"H (45U) x 30"W x 32"D
- 84"H (45U) x 30"W x 36"D
- 84"H (45U) x 24"W x 42"D
- 84"H (45U) x 30"W x 42"D
Choose your rails:

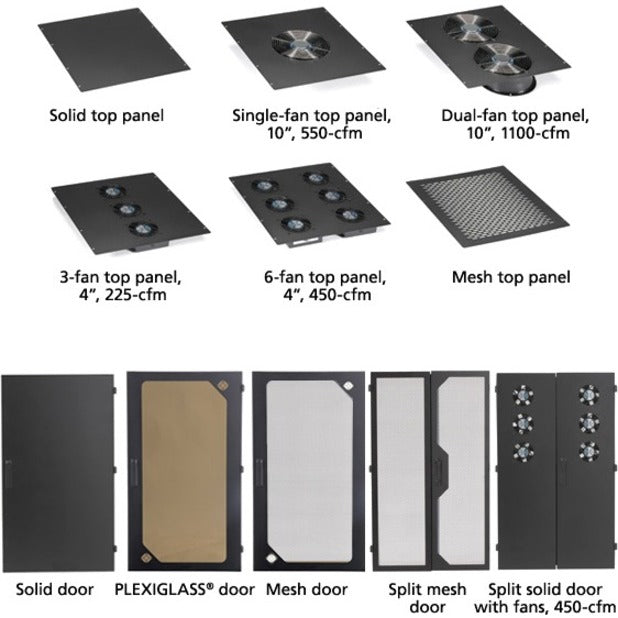

Add front and rear doors in a choice of these styles:
- Solid
- High-flow mesh
- Split high-flow mesh
- PLEXIGLAS®
- Split solid with fans
- Open with no doors
Select side panels:
- Solid
- High-flow mesh
- Open with no sides
Select a top panel:
- Solid
- Mesh
- Chimney top
- Single-fan, 10" , 550-cfm
- Dual-fan, 10" , 1100-cfm
- 3-fan, 4" , 225-cfm
- 6-fan, 4" , 450-cfm
- Open with no top panel
You can also add anti-tip legs. Standard keyed locks on doors can be replaced by a combination lock.
For details on having an Elite Cabinet built your way, contact our FREE Tech Support.
- Guaranteed for life!
- Includes leveling legs and casters.
- Ships fully assembled. Shipping is via motor freight.

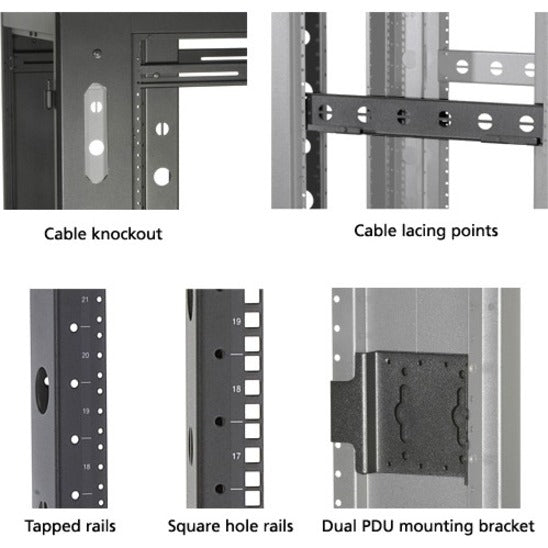

- Multiple lacedown points throughout the cabinet.
- Adjustable bottom plate for passive cooling.
- Extensive cable knockouts on the top, sides, and bottom.
- Includes a universal PDU mounting bracket.
- Heavy-duty, solid-steel construction.
- This Elite Server Cabinet features 10-32 rails, a PLEXIGLAS® front door, a mesh rear door, solid side panels, a solid top panel, and keyed locks.
Product Type: Rack Cabinet
Product Condition: New
Taa Compliant: Yes
Product Color: Black
Product Material: Steel
Country Of Origin: United States
Assembly Required: No
Product Series: Elite
Rack Height: 24U
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Model: EC24U3032TPMSSNK
Product Name: Elite EC24U3032TPMSSNK Rack Cabinet
Manufacturer Part Number: EC24U3032TPMSSNK
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Elite EC24U3032TPMSSNK Rack Cabinet
- Universal PDU Mounting Bracket
Limited Warranty: Lifetime
