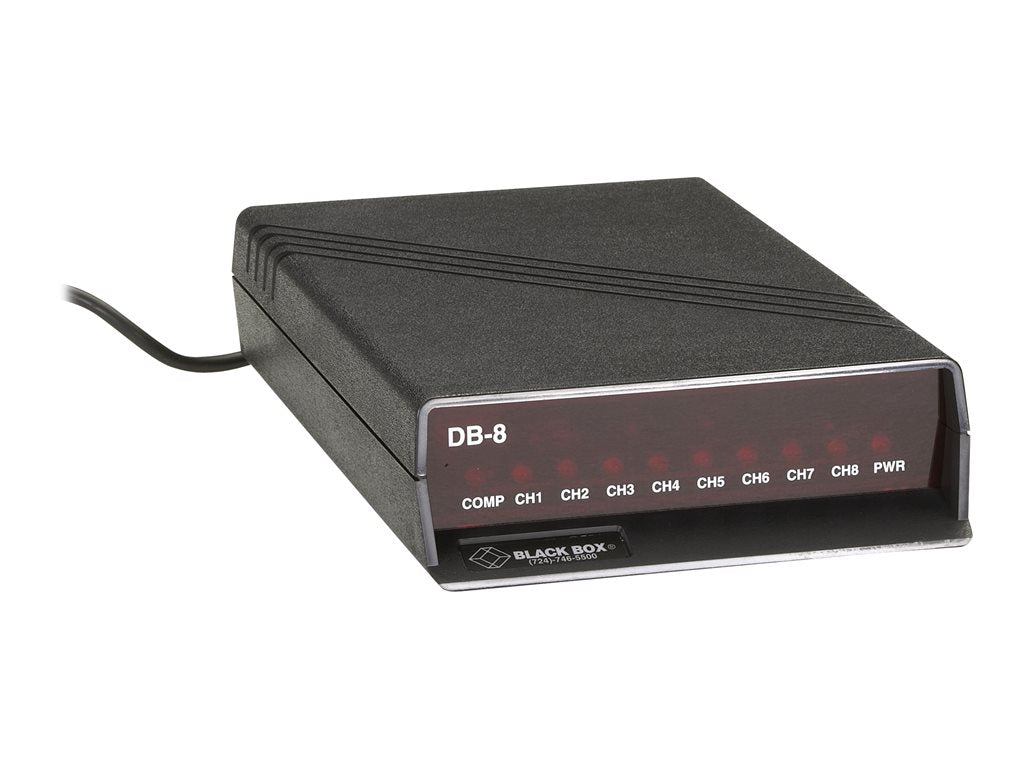

Black Box Data Broadcast - Repeater - serial
RS232 data received into the Master Port is regenerated and transmitted out eight Distribution Ports. All ports are DTE/DCE switch-selectable. Put one between your async CPU and up to eight terminals. Students see everything on your screen. Ideal for polling applications or other controlled environments DB25 model is rackmountable and enables you to connect each port directly and quickly to slave ports. Use RJ-11 version in modular wiring environments. Order an optional RJ Adapter Kit to connect it to premise DTEs equipped with DB25 connectors.
- Fully regenerate an async host signal and broadcast it out to eight slave ports
- Supports TXD, RXD and GND only
- Ideal for polling applications or other controlled environments

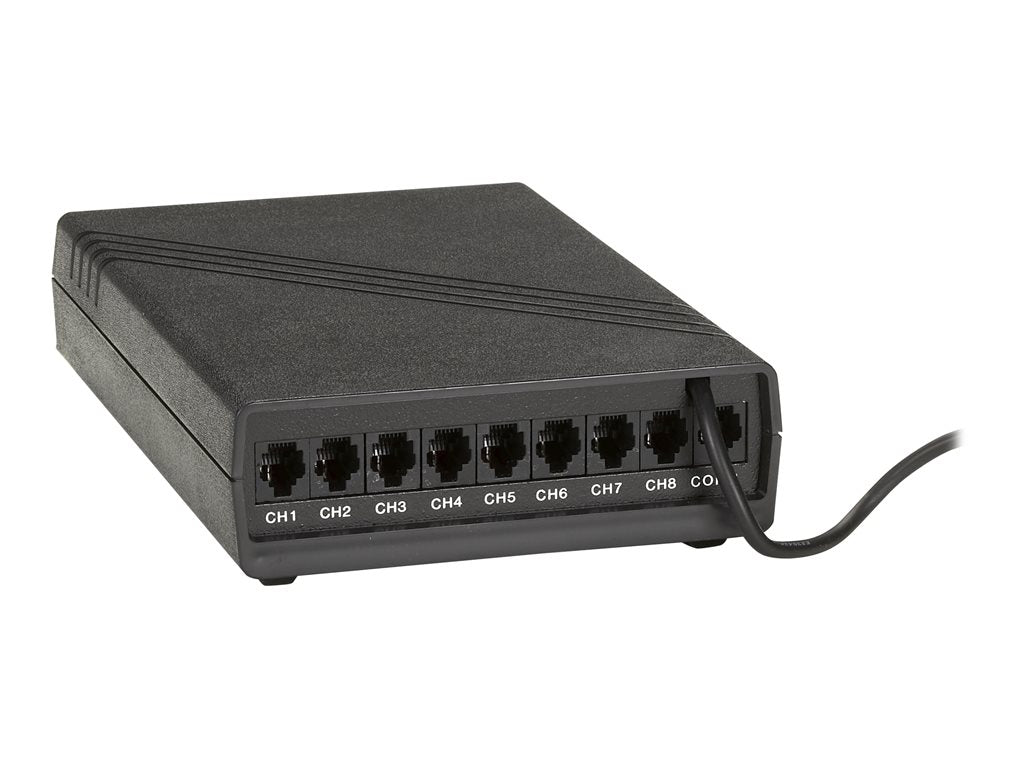

- Viewed from the rear, the left conductor is TXD, the center two conductors are signal grounds, and the right conductor is RXD
