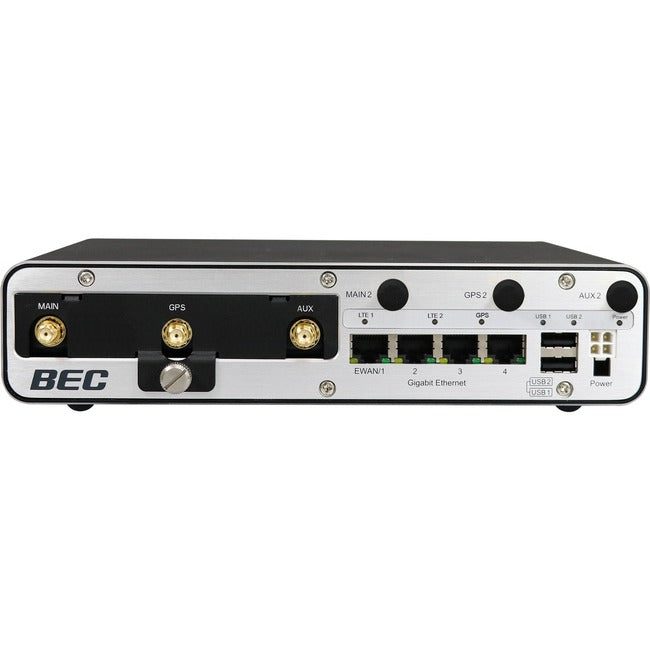

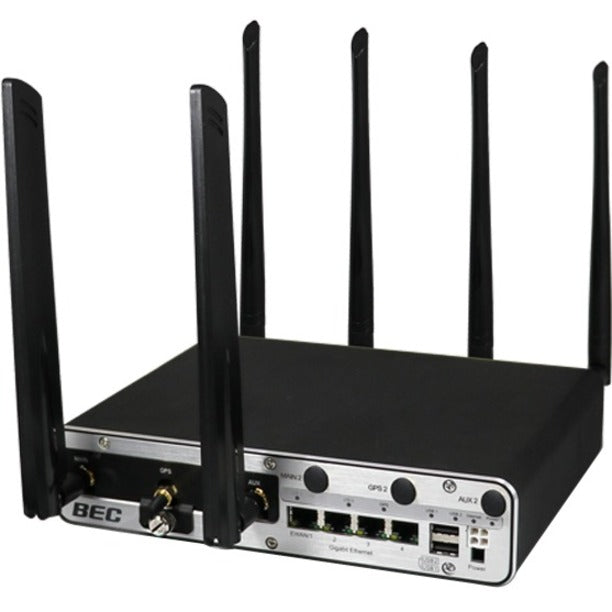

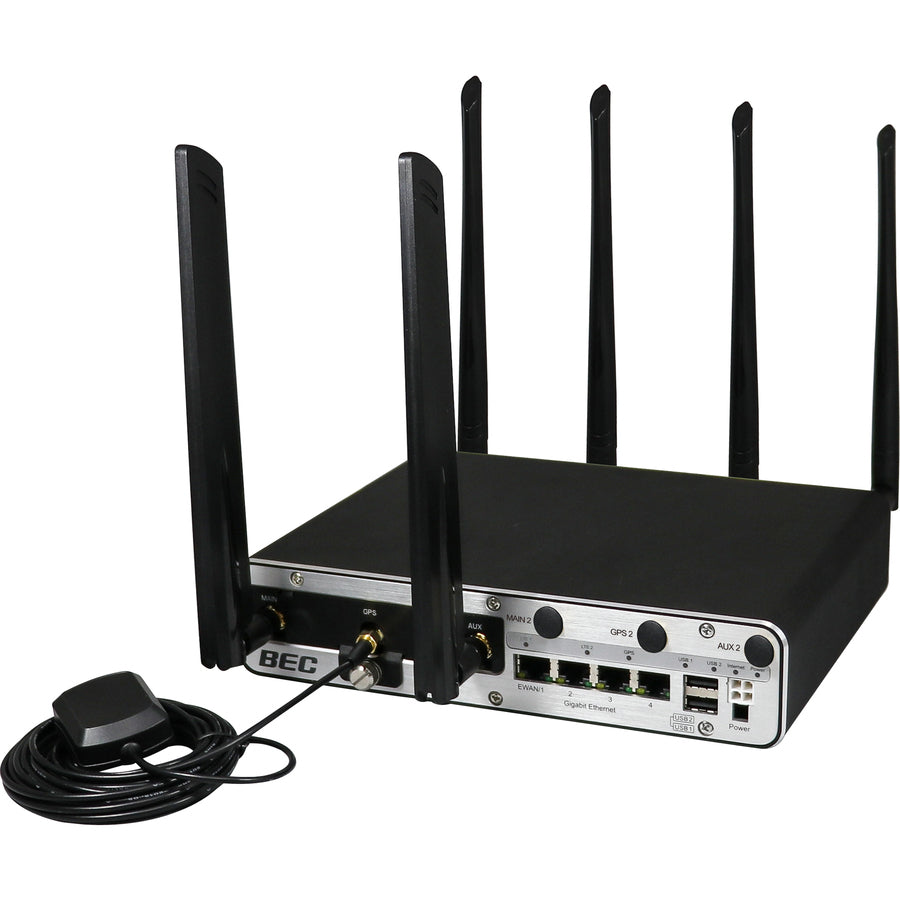

BEC Technologies MX-1200 Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular, Ethernet Modem/Wireless Router
BEC MX-1200 4G/LTE Multi-Carrier Router is a versatile, feature-packed 4G/LTE Router in rugged design and is compatible with BEC MX-100U cellular modem plug-in for an immediate mobile network expansion support up to 2 radios and 4 SIMs. This platform comes with 4-port Gigabit Ethernet switch, up to two (2) congurable LAN/WAN ports, two (2) multi-purpose USB 2.0 hosts, embedded GPS with concurrent-multi-GNSS engine for GPS or GLONASS, carrier-grade 11ac dual-band WIFI access point and Hotspot with captive portal, enterprise routings, secured VPNs, vehicle ignition sensing, robust rewall security and cloud-based remote device management. MX-1200 is designed to support a wide range of applications and vertical machine-to-machine (M2M) market segments and improve business continuality.
Mobile and Fixed Broadband Services Ready
MX-1200 platform supports up to four (4) SIMs for carrier redundancy or seamless failover (with MX-100U) between carrier networks and is equipped up to two (2) versatile Gigabit Ethernet LANs/WANs for wireline connection such as Fiber(FTTH), Cable or DSL with speeds up to 1000Mbps. Using BEC WAN Management in the Web GUI to manage and ensure uninterrupted Internet services by assigning failover to specific WAN interfaces, setting up WAN load balance to smoother trac to ensure no drops on latency-sensitive application and data.
Secure Network Privacy Protection
With hardware-based VPN engine, MX-1200 supports simultaneous and multiple VPN remote and/or site-to-site connection access without network performance degradation. All online data transmissions including phone call, database access, etc. are encrypted and protected via the VPN technologies oered by the MX-1200 including PPTP, IPSec, L2TP, GRE, OpenVPN and compatible with most major servers and platforms by establishing private tunnels and enabling oce environment for Remote/Branch employees to work without being present in the headquarter oce to ensure business continuity
Maximized Wi-Fi Speed and Coverage
With the next wireless generation, 802.11ac, integrated in the MX-1200, the router delivers fast Wi-Fi speeds of up to 1200Mbps. The MX-1200 supports a link rate up to 300Mbps in 2.4GHz frequency range & 867Mbps in 5GHz range and is also backward compatible with existing 802.11 a / b / g / n wireless equipment in the network. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over Wireless LAN. MX-1200 also supports the Wi-Fi Protected Setup (WPS) standard for easy and secure establishment of a wireless home network. If the user's network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function expands the wireless network without needing any external wires or cables.
Wi-Fi Hotspot with Captive Portal
MX-1200 oers Wi-Fi hotspot to share the Internet connection via mobile (3G/LTE) or a wired connection, an existing FTTH, cable, DSL network or modem, with any wireless-enabled devices which is completed separate from the private Wi-Fi network. The captive portal enables highly secure connectivity with multiple authentication options and extensive controls for access and bandwidth management. Customization options allow for operator logos, branding or advertisement placement.
- Savor simultaneous downloading and seamless streaming
- Gigabit Ethernet port for ultra-fast wired network speeds
- Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
- For USB-enabled devices accessibility, the router comes with a built-in USB port
- Desktop installation - Ideal for deployments outside the wiring closet
Product Type: Modem/Wireless Router
Country Of Origin: Taiwan
Brand Name: BEC Technologies
Form Factor: Surface Mount
Manufacturer: BEC Technologies, Inc
Product Model: MX-1200
Product Name: 4G/LTE Multi-Carrier Router
Manufacturer Part Number: MX-1200
Manufacturer Website Address: https://bectechnologies.net/
Packaged Quantity: 1
Package Contents:
- 4G/LTE Multi-Carrier Router
- 1 x Quick Installation Guide
- 1 x RJ-45 Ethernet Cable
- 2 x 2.4GHz Wi-Fi Antennas (Short)
- 2 x 5GHz Wi-Fi Antennas (Long)
- 1 x MiniFit to DC Jack Power Cable
- 1 x DC Power Adapter
