Mfr Part Number: BL085
-
Features:
- Low-noise operation of up to 15.9dB(A)
- Airflow-optimized fan blades

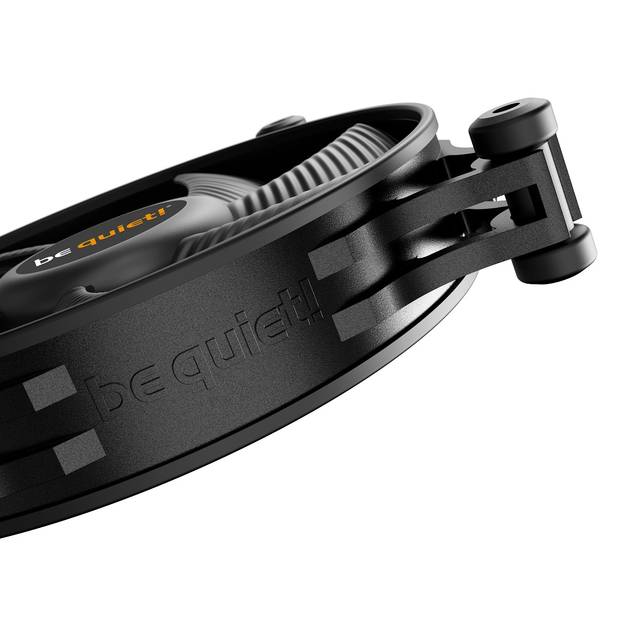

- Anti-vibration mounting system prevents transmission of vibrations
- Rubberized fan frame minimizes vibrations
- High-grade rifle-bearing technology

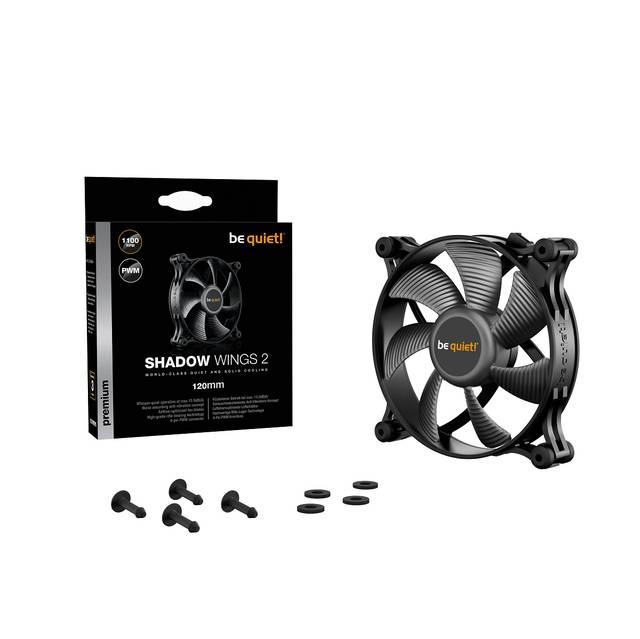

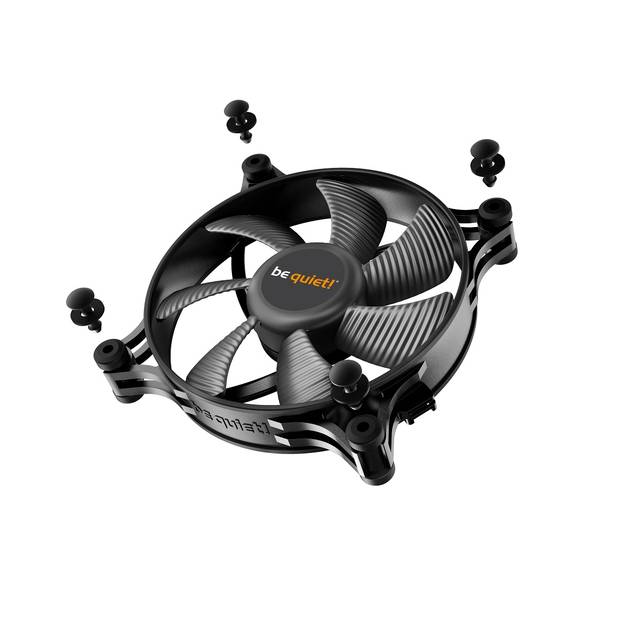

- Secure and easy installation with push-pins
- PWM controlled fan speed through the motherboard
- Product conception, design and quality control in Germany
-
Fan Speed @ 100% PWM / 12V: 1100 RPM
-
Air Flow @ 100% PWM / 12V: 38.5 CFM / 65 m3/h
-
Air Pressure @ 100% PWM / 12V: 0.82 mmH2O
-
Noise Level @ 100% PWM / 12V: 15.9 dBA
-
Voltage: Rated - 12 VDC, Operating - 6 ~ 12 VDC
-
Current: 0.12 A (consumption), 0.12 A (safety)
-
Input Power: 1.44 W
-
Bearing: Rifle
-
Motor: 4-pole Fan Motor
-
Connector: 4 Pin PWM
-
Cable Length: 500 mm
-
Life: 80,000 hours /25C
-
Approvals: CE, Tuv, UL
-
Dimensions: 120.0 x 120.0 x 25.0 mm
-
Weight: 0.132 kg (w/ fixed cables)
