Mfr Part Number: BN650
-
Features:
- 80PLUS Platinum certification and up to 94% power conversion efficiency
- Virtually inaudible operation thanks to a broad array of optimizations, including the use of a be quiet! SilentWings 3 135mm fan
- SilentWings 3 fan features an advanced fan frame, an airflow-optimized fan blade, fluid-dynamic bearing with copper core and a high-quality 6-pole motor for less vibration
- The funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
- 550 Watts of continuous power provide intensive power reserves for demanding computing applications
- Overclocking key allows switchover between quadruple independent 12V-rail mode and high-performance single-rail operation

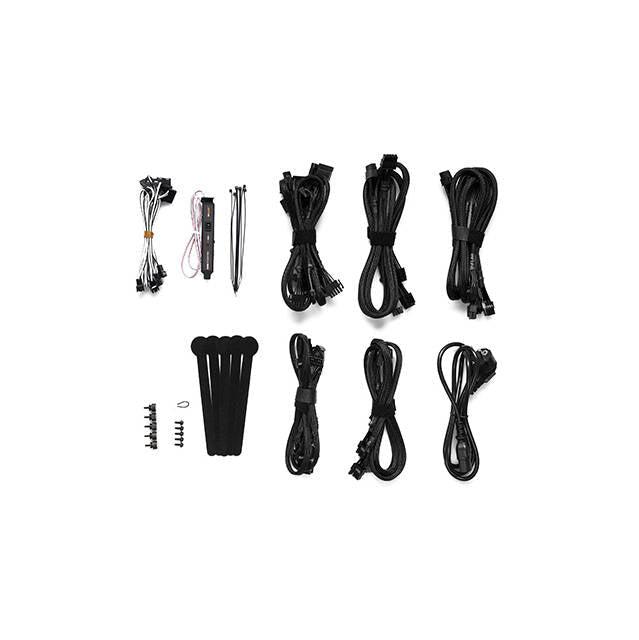

- Cable management with extra long cable reach simplifies component installation and reduces annoying clutter, increasing airflow and improving cooling in even the largest PC cases
- Product conception, design and quality control in Germany
-
Power:
-
Continuous Power: 550W
-
Peak Power: 610W
-
Input:
-
Voltage: 100 ~ 240 VAC
-
Current: 7 - 3.5 A
-
Frequency Range: 50 ~ 60 Hz
-
Type: ATX12V v2.4 / EPS12V v2.92
-
Power Factor Correction: Active PFC
-
Efficiency: 80Plus Platinum, 91.6~94% efficiency @ 20~100% load
-
Fan: 135mm Silent Wings FDB Fan
-
Output: +3.3V @ 25A,+5V @ 22A, +12V1 @ 20A, +12V2 @ 20A, +12V3 @ 25A, +12V4 @ 25A, +5VSB @ 3A, -12V @ 0.5A
-
Connectors: 1x 20+4-pin ATX Main Connector, 1x 8-pin CPU Power Connector, 1x 4+4-pin CPU Power Connector, 1x 6-pin GPU PCI-Express Connector, 4x 6+2-pin GPU PCI-Express Connectors, 8x SATA Connectors, 5x 4-pin Peripheral Connectors, 1x Floppy Connector, 1x 4-pin Mainboard Connector, 4x External Fan Connectors
-
Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
-
Approvals: TUV, CE, CB, FCC, cTUVus, ErP, WEEE, RoHS
-
Color: Black
-
Dimensions (WxLxD): 150.0 x 180.0 x 86.0 mm
-
Weight: 2.02 kg
