Mfr Part Number: BN670
-
ENA Code: 4260052188170
-
Features:
-
80 PLUS Gold efficiency (up to 93.5%)
-
Modular cables for maximum build flexibility
-
Two strong 12V-rails
-
Silence-optimized 120mm be quiet! fan
-
Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
-
Full suite of top safety features
-
Five-year manufacturers warranty
-

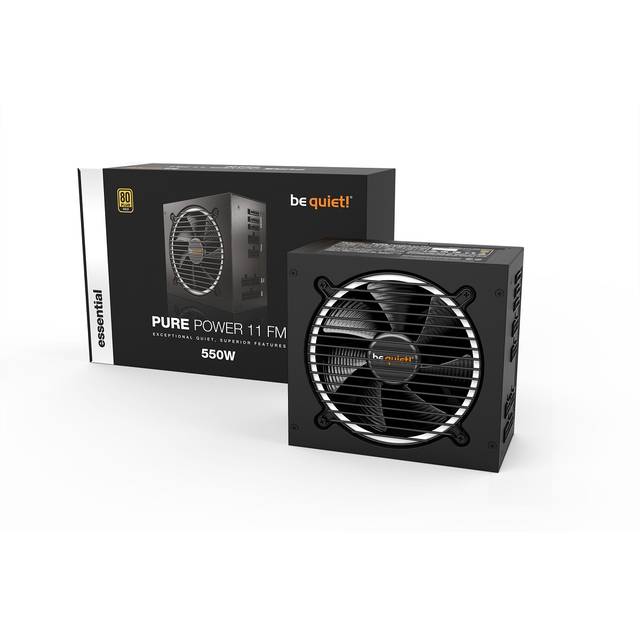

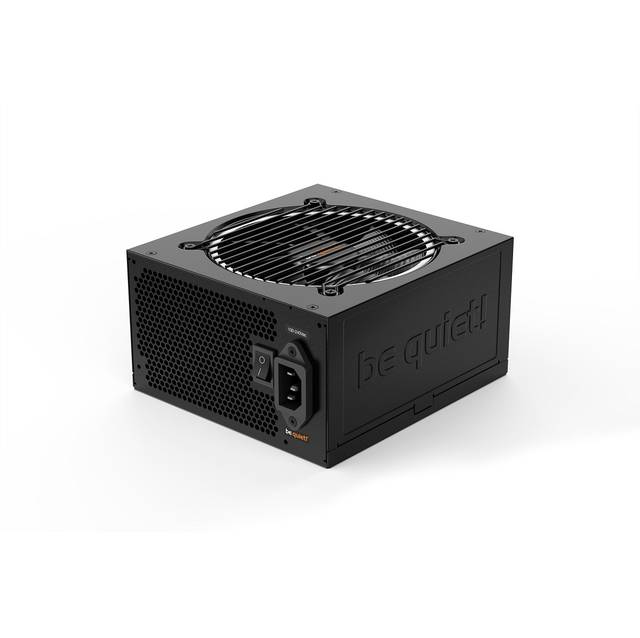

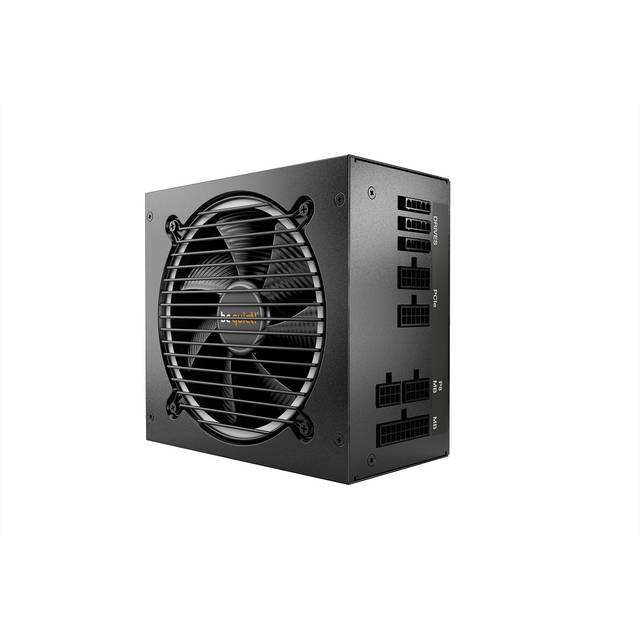

Model Name: Pure Power 11 FM 550W
-
Continuous Power (W): 550
-
Peak Power (W): 600
-
Type: ATX v2.52 / EPS12V v2.92
-
Modular cable management: Yes
-
Topology: LLC + SR + DC/DC
-
Wire-free design (DC-side): Yes
-
Input:
-
Voltage: 100 ~ 240 VAC
-
Current: 10 - 5A
-
Frequency Range: 50 ~ 60 Hz
-
Power Factor Correction: Active PFC
-
Power factor at 100% load: >0.98
-
Compliant to Intel C6/C7: Yes
-
Power consumption in standby (W): <0.14
-
Average life time (h / 25C): 100,000
-
Operating temperature up to (C): 40
-
Output: +3.3V @ 20A, +5V @ 20A, +12V1 @ 28A, +12V2 @ 24A, +5VSB @ 3A, -12V @ 0.3A
-
Fan:
-
Fan type: Silence-optimized be quiet! fan
- Motor technology: 4-pole fan motor
- Bearing technology: Rifle
- Fan size (mm): 120
- Max. fan speed (rpm), temperature-dependent: 1800
- dB(A) at 20% load: 8.8
- dB(A) at 50% load: 9
- dB(A) at 100% load: 18.1
-
Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
-
Approvals: CE, CB, TUV, FCC, cRUus, cTUVus, RCM (Australia), BSMI, CCC
-
Eco / Efficiency:
-
80 PLUS certification: Gold
-
Efficiency (%) at 230V, 20% load: 89.8
-
Efficiency (%) at 230V, 50% load: 93.5
-
Efficiency (%) at 230V, 100% load: 92
-
Environmental directives: 8.0 ENERGY STAR, ErP, WEEE, RoHS
-

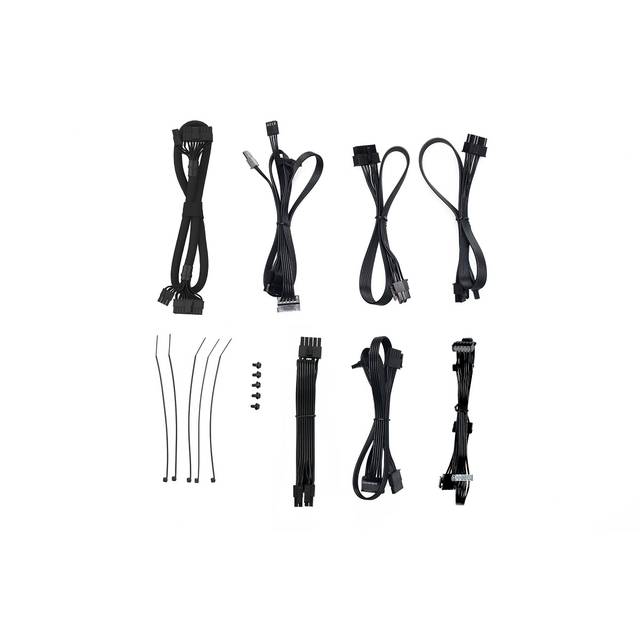

Connectors:
-
1 x ATX-Motherboard (20+4-pin) Connector
- 1 x P4+4 CPU Connector
- 2 x PCI-E 6+2-pin (GPU) Connectors
- 2 x PATA Connectors
- 9 x SATA Connectors
- 1 x Floppy Connector
-
Color: Black
-
Dimensions (LxWxD): 160 x 150 x 86
-
Weight: 1.45 kg
-
Accessories: Screws, Cable ties, User manual languages(CN, DE, EN, ES, FR, JP, PL, RU, TW)
