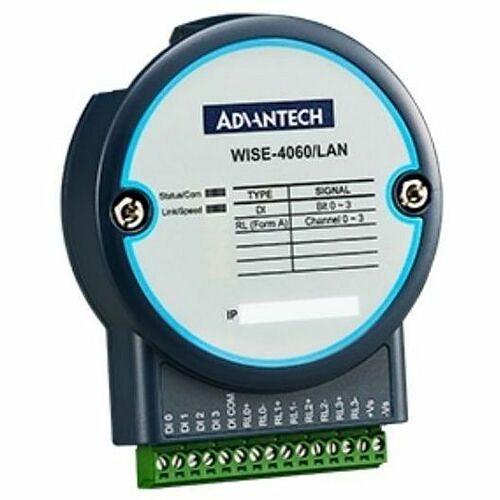

B+B SMARTWORX WISE-4060LAN-B 4-Channel IoT Ethernet I/O Module
The WISE-4060LAN-B is a professional-grade IoT Ethernet I/O module designed for industrial automation, remote monitoring, and distributed control applications. This 4-channel digital input and 4-channel relay output device delivers enterprise-level connectivity with Modbus/TCP, MQTT, and RESTful web API support, making it ideal for facility managers, automation engineers, and IoT system integrators who need reliable, scalable remote I/O solutions. With local data logging, RTC time stamping, and HTML5-based web configuration accessible from any mobile device, the WISE-4060LAN-B simplifies deployment while maintaining industrial-grade reliability across 10–30 VDC power supplies with reverse polarity protection.
Key Features
- 4 Digital Input Channels with isolated sensing for reliable signal detection
- 4 Relay Output Channels for remote switching and control applications
- Multi-Protocol Support: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, and MQTT
- RESTful Web API in JSON format for seamless third-party integration
- Local Data Logging with RTC Time Stamping for historical analysis
- HTML5-Based Web Interface for configuration from mobile devices and browsers
- 10–30 VDC Power Supply with reverse polarity protection
- Industrial-Grade Reliability for harsh field environments
Technical Specifications
| Specification |
Details |
| Manufacturer |
B+B SMARTWORX |
| Part Number |
WISE-4060LAN-B |
| Digital Input Channels |
4 channels with isolation |
| Relay Output Channels |
4 channels |
| Communication Protocols |
Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT |
| API Support |
RESTful Web API (JSON format) |
| Data Logging |
Local logging with RTC time stamping |
| Configuration Interface |
HTML5-based web interface |
| Power Supply |
10–30 VDC with reverse polarity protection |
| Device Type |
IoT Ethernet I/O Module |
Frequently Asked Questions
What is an IoT Ethernet I/O module used for?
An IoT Ethernet I/O module like the WISE-4060LAN-B enables remote monitoring and control of industrial equipment over network connections. It converts digital signals from sensors and switches into network-accessible data, allowing operators to monitor facility conditions and trigger relay outputs from anywhere with network access.
Does the WISE-4060LAN-B support Modbus/TCP?
Yes, the WISE-4060LAN-B fully supports Modbus/TCP along with MQTT, HTTP, UDP, and TCP/IP protocols, making it compatible with most industrial automation platforms and SCADA systems for seamless integration.
Can I configure the device from a mobile device?
Absolutely. The module features an HTML5-based web interface that works on any modern browser, including mobile devices and tablets, allowing you to configure settings, monitor inputs, and control relay outputs remotely without specialized software.
What happens if power is reversed on the WISE-4060LAN-B?
The WISE-4060LAN-B includes reverse polarity protection on its 10–30 VDC power supply, preventing damage if power connections are accidentally reversed, ensuring reliable operation in field installations.
