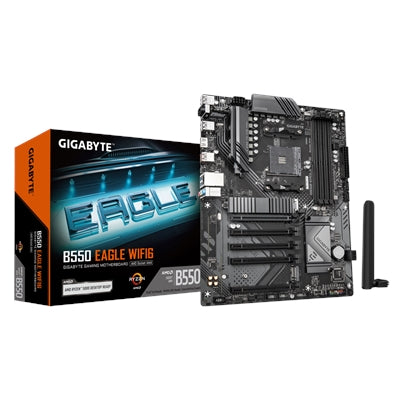

B550 EAGLE WIFI6 AMD AM4 ATX Motherboard
The B550 EAGLE WIFI6 is a feature-rich AMD AM4 ATX motherboard designed for gamers and content creators building high-performance Ryzen 5000 systems. This B550 motherboard combines PCIe 4.0 support, integrated WiFi6 connectivity, and robust power delivery in an ATX form factor. Whether you're upgrading your gaming PC or assembling a workstation, the EAGLE WIFI6 delivers the performance and connectivity you need without breaking the bank.
Built for enthusiasts who demand PCIe 4.0 speeds and wireless reliability, this board features dual M.2 slots for NVMe storage expansion, EZ-LATCH socket design for easy CPU installation, and 1GbE LAN for stable networking. The B550 chipset provides excellent value, supporting the full range of Ryzen 5000 processors while offering next-generation storage and expansion capabilities.
Key Features
-
AMD AM4 Socket — Full compatibility with Ryzen 5000 series processors
-
B550 Chipset — PCIe 4.0 support for NVMe SSDs and graphics cards
-
WiFi6 Connectivity — Ultra-fast wireless networking for lag-free gaming and streaming
-
Dual M.2 Slots — PCIe 4.0 NVMe support for blazing-fast storage
-
ATX Form Factor — Full-size motherboard with extensive expansion options
-
1GbE LAN — Gigabit Ethernet for reliable wired connectivity
-
EZ-LATCH Socket — Tool-free CPU installation and removal
- Enhanced Power Delivery — Stable performance under load
- Multiple USB Headers — Support for case front-panel connectors
Technical Specifications
| Specification |
Details |
| Manufacturer |
Gigabyte |
| Part Number |
B550 EAGLE WIFI6 |
| Socket Type |
AMD AM4 |
| Chipset |
AMD B550 |
| Form Factor |
ATX (305 x 244mm) |
| Memory Support |
DDR4 UDIMM |
| Storage Slots |
2x M.2 Socket (Key M) — PCIe Gen4 x4 / Gen3 x4 |
| PCIe Slots |
PCIe 4.0 x16 (x16 mode) |
| Networking |
1x Gigabit Ethernet LAN, WiFi6 (802.11ax) |
| Audio |
High-Definition Audio Codec |
| USB Ports |
Multiple USB 2.0, USB 3.1, USB 3.2 headers |
| Power Connectors |
24-pin ATX, 8-pin CPU power |
| CPU Socket |
EZ-LATCH design for easy installation |
Frequently Asked Questions
What Ryzen processors are compatible with the B550 EAGLE WIFI6?
The B550 EAGLE WIFI6 supports all AMD Ryzen 5000 series processors (Zen 3) including Ryzen 5, 7, and 9 models. It also supports select Ryzen 3000 series processors with BIOS updates. Check the motherboard's QVL (Qualified Vendor List) for complete compatibility details.
Does this B550 motherboard support PCIe 4.0 NVMe drives?
Yes, the B550 EAGLE WIFI6 features two M.2 slots with PCIe 4.0 x4 support, allowing you to install ultra-fast NVMe SSDs for dramatically faster boot times and file transfers compared to SATA drives.
Is WiFi6 included on this AMD AM4 motherboard?
Yes, the EAGLE WIFI6 includes integrated WiFi6 (802.11ax) connectivity, providing faster wireless speeds and lower latency compared to WiFi5. It also features 1GbE LAN for wired connections.
What is the EZ-LATCH socket and why does it matter?
The EZ-LATCH socket design allows tool-free CPU installation and removal. Simply align your Ryzen processor and press down — no retention bracket tools needed. This makes upgrading or troubleshooting your system faster and easier.
