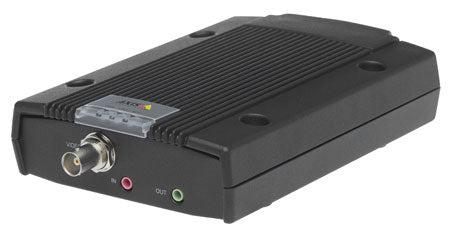

Axis Q7411 Video Servers/Encoder 720 X 576 Pixels 60 Fps

Q7411 Video Encoder (US/JP)

Axis Q7411. Maximum video resolution: 720 x 576 pixels, Maximum frame rate: 60 fps, Video compression formats: H.264,M-JPEG,MPEG4. Supported network protocols: IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP,..., Copper ethernet cabling technology: 100BASE-TX,10GBASE-T. Power consumption (typical): 5.3 W, Power requirements: 8-20 V DC. Dimensions (WxDxH): 109 x 172 x 37 mm, Weight: 520 g. Certification: EN 50121-4, EN61000-6-1, EN61000-6-2, EN60950-1, FCC Part 15 Subpart B ITE Class B, ICES-003...

- 60/50 fps support
- Outstanding video processing capabilities
- Coax PTZ Control
- AXIS Camera Application Platform
- Edge storage
- Power over Ethernet

Full-featured single channel solution

AXIS Q7411 is a powerful, full-featured video encoder solution offering 60/50 (NTSC/PAL) frames per second. The support for 60/50 fps provides smooth video in high motion scenes. This also enables the user to more closely follow details and changes in the monitored area, which is of major importance in forensic work.

Coax PTZ Control

AXIS Q7411 allows PTZ control over the coaxial cable, resulting in significant installation savings. In addition, the video encoder provides standard support for PTZ cameras using the serial ports.
Outstanding video processing capabilities

The video encoder can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL).

Reduced bandwidth and storage needs

AXIS Q7411 offers the highly efficient H.264 video compression format both in Base and Main profile, with significant savings in bandwidth and storage. Motion JPEG is also supported for increased flexibility.

Intelligent video capabilities

AXIS Q7411 offers intelligent capabilities such as motion detection, active tampering alarm and audio detection. Other features include two-way audio and microSD/microSDHC memory.
