Axiom POE+ (PSE) Series - Fiber media converter - 1GbE - over CAT 5e/6 - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / SC multi-mode - up to 1800 ft - 850 nm - TAA Compliant
-
Efficient connectivity
The Axiom POE+ (PSE) Series repeater and transceiver ensures seamless connectivity with its support for Ethernet, Fast Ethernet, and Gigabit Ethernet, making it a versatile choice for various network configurations.
-
Enhanced performance
With features like a 16 KB Jumbo Frame, 384KB packet buffer, and a MAC Address Table Size of 1K entries, this device is designed to enhance network performance, ensuring efficient data transfer and handling.
-
Reliable operation
Designed to operate within a wide range of temperatures from 0°C to 50°C and a humidity range of up to 90% (non-condensing), the Axiom POE+ (PSE) Series offers reliable performance in diverse environmental conditions.
-
Advanced features
This device comes equipped with features such as over-current protection, auto-negotiation, and a built-in DIP switch, providing a secure, adaptable, and user-friendly networking solution.
-
Power over Ethernet
PoE+ capability allows for the transmission of power along with data over a single network cable, simplifying the setup by eliminating the need for additional power supplies and reducing cable clutter.

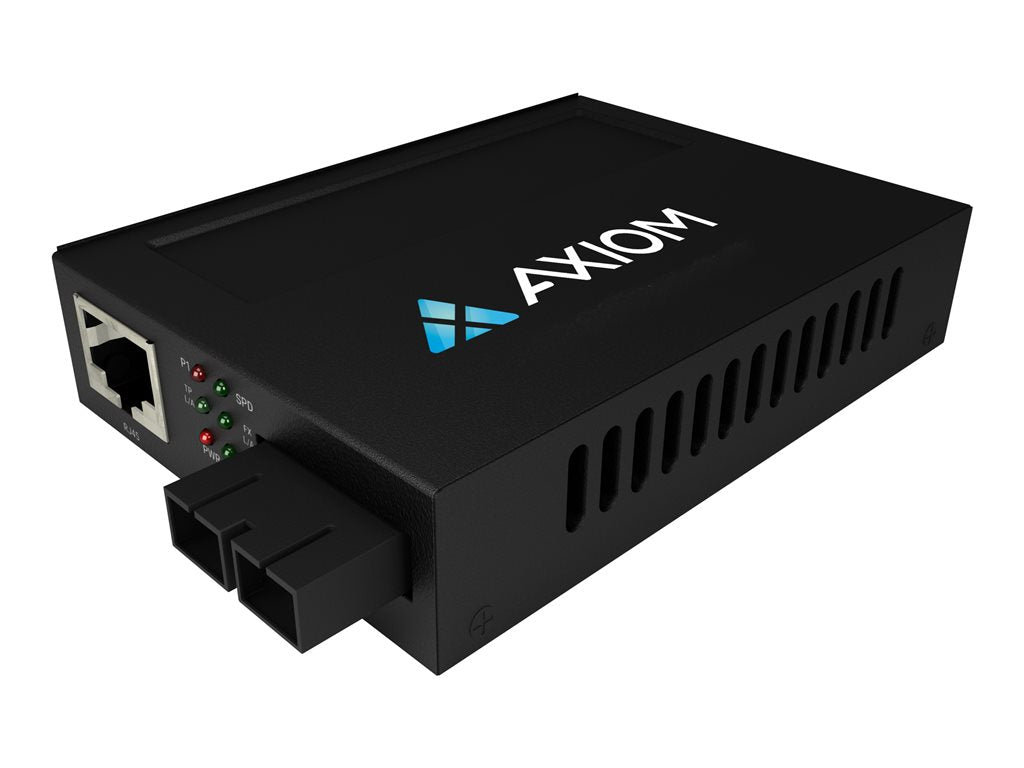

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
• IEEE802.3at PoE+ PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support.
- Supports a wide range of Ethernet protocols including Ethernet, Fast Ethernet, and Gigabit Ethernet
- Features like 16 KB Jumbo Frame and 384KB packet buffer enhance network efficiency
- Operates reliably in temperatures from 0°C to 50°C and up to 90% humidity
- Includes safety and performance features such as over-current protection and auto-negotiation
- PoE+ capability simplifies network setup and reduces cable clutter
