Description

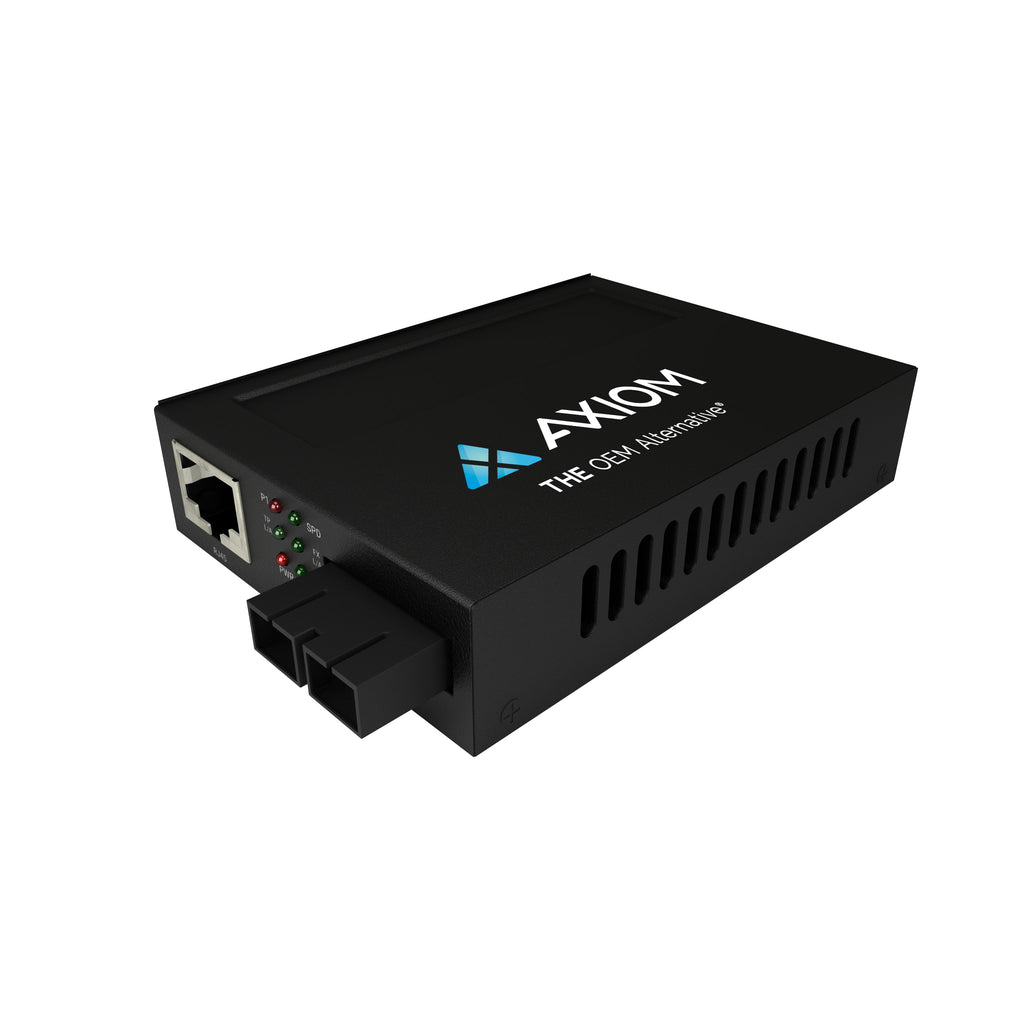

100Mbs POE RJ45 to 100BASE-LX Fiber Media Converter - SMF, SC, 10km,1310nm
Axiom MCP31-F1-S3S10-AX. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Converter output interface: 100Base-FX. Fiber optic connector: LC, Connectivity technology: Wired. Maximum transfer distance: 10000 m, Wavelength: 1310 nm, Mean time between failures (MTBF): 65000 h. LED indicators: Status, Product colour: Black, Housing material: Metal. Input voltage: 100 - 240 V, Input current: 0.45/0.2 A, Power consumption (max): 60 W
The Axiom 100Mbps POE (PSE) Series are a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
General Information
Manufacturer
Axiom Memory Solutions
Manufacturer Part Number
MCP31-F1-S3S10-AX
Manufacturer Website Address
http://www.axiommemory.com
Brand Name
Axiom
Product Series
POE (PSE)
Product Name
100Mbs POE RJ45 to 100BASE-LX Fiber Media Converter - SMF, SC, 10km,1310nm
