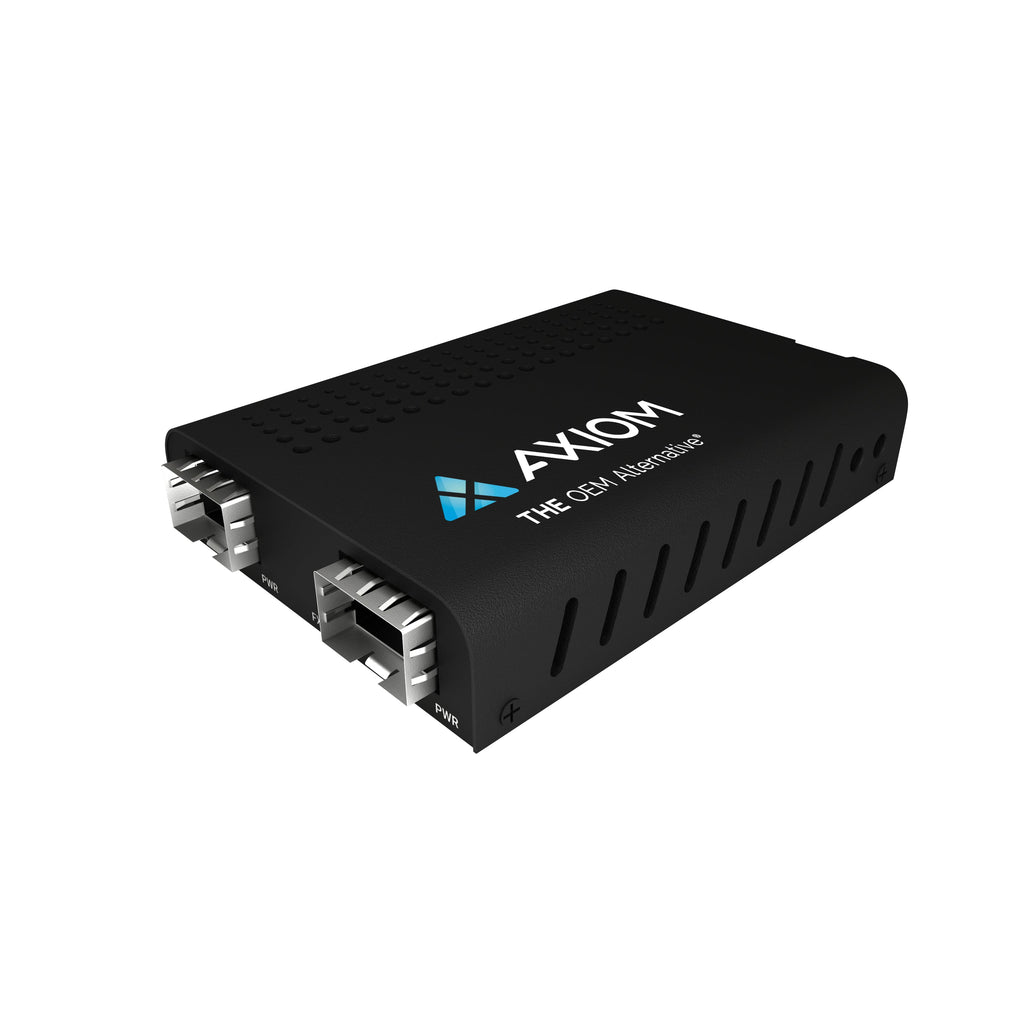

Axiom Mc12-Sfp-Ax Network Media Converter 10312.5 Mbit/S 1310 Nm Multi-Mode, Single-Mode Black

10Gbs SFP+ to SFP+ (OEO) Optical Mode Converter, DC 5-12V, 1.4/0.6A

Axiom MC12-SFP-AX. Maximum data transfer rate: 10312.5 Mbit/s. Fiber optic connector: SFP+, Connectivity technology: Wired. Maximum transfer distance: 120000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Status, Product colour: Black, Housing material: Metal. Input voltage: 5 - 12 V, Output current (12V): 0.6 A, Power consumption (max): 7 W

The Axiom 10G SFP+ to SFP+ Optical Mode Converter provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/ OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, OBSAI, CPRI, etc. Using SFP+ ports with dedicated CWDM or DWDM wavelengths, the 10G Fiber to Fiber Converter supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. With its functionality transponder is also suitable as a repeater for transmission over extended distances. In addition, the use of state of the art components greatly reduces the power requirements and heat dissipation factors over our previous transponders.
