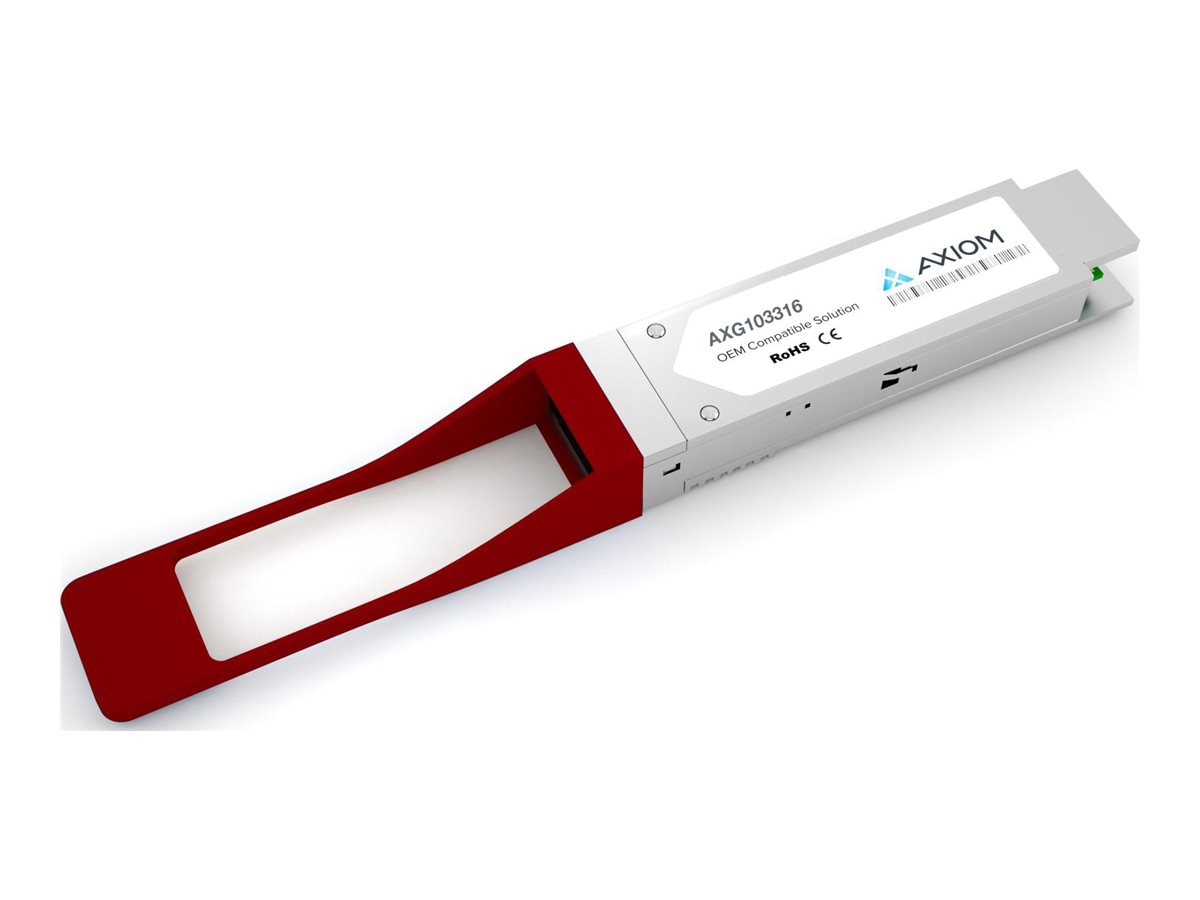

Axiom 100GBASE-SWDM4 QSFP28 150m Ruckus Compatible Transceiver
The Axiom 100GBASE-SWDM4 QSFP28 is a high-performance BiDi transceiver engineered for enterprise data center and campus networking environments requiring 100GbE optical connectivity. This QSFP28 transceiver delivers reliable multimode fiber (MMF) transmission up to 150 meters with LC duplex connectors, making it ideal for Ruckus-compatible network infrastructure. Built with TAA compliance and designed for high-density deployment, this 100GBASE-SWDM4 module provides cost-effective 100GbE solutions for demanding networking applications.
Key Features
- 100GBASE-SWDM4 protocol support for 100 Gbps data rates
- QSFP28 form factor enables high-density port configurations
- BiDi (bidirectional) technology reduces fiber infrastructure costs
- 150-meter reach over multimode fiber (MMF) cabling
- LC duplex connector for standard fiber connectivity
- Ruckus compatible (E100G-QSFP28-SR-SWLC equivalent)
- TAA compliant for government and enterprise procurement
- Hot-pluggable design for seamless network upgrades
Technical Specifications
| Specification |
Details |
| Manufacturer |
AXIOM |
| Part Number |
AXG103316 |
| Protocol |
100GBASE-SWDM4 |
| Form Factor |
QSFP28 |
| Connector Type |
LC Duplex |
| Fiber Type |
Multimode Fiber (MMF) |
| Maximum Reach |
150 meters |
| Data Rate |
100 Gbps |
| Technology |
Bidirectional (BiDi) |
| Compliance |
TAA Compliant |
| Network Compatibility |
Ruckus Compatible |
Frequently Asked Questions
What is a 100GBASE-SWDM4 QSFP28 transceiver?
A 100GBASE-SWDM4 QSFP28 is an optical transceiver module that supports 100 Gigabit Ethernet transmission over multimode fiber. The SWDM4 (Short Wavelength Division Multiplexing) technology uses bidirectional signaling to transmit and receive data simultaneously over fewer fiber strands, reducing cabling complexity and costs in data center environments.
Is this transceiver compatible with Ruckus network switches?
Yes, the Axiom AXG103316 is fully compatible with Ruckus network infrastructure. It is equivalent to the Ruckus E100G-QSFP28-SR-SWLC module and integrates seamlessly with Ruckus switches supporting 100GBASE-SWDM4 connectivity.
What is the maximum transmission distance for this QSFP28 module?
This 100GBASE-SWDM4 QSFP28 transceiver supports transmission distances up to 150 meters over multimode fiber (MMF) cabling, making it suitable for intra-campus and data center interconnect applications.
Why choose BiDi technology for 100GbE connectivity?
BiDi (bidirectional) transceivers reduce fiber infrastructure requirements by transmitting and receiving data on the same fiber pair using different wavelengths. This approach lowers cabling costs, simplifies installation, and reduces physical space requirements compared to traditional 100GBASE-SR4 solutions.
