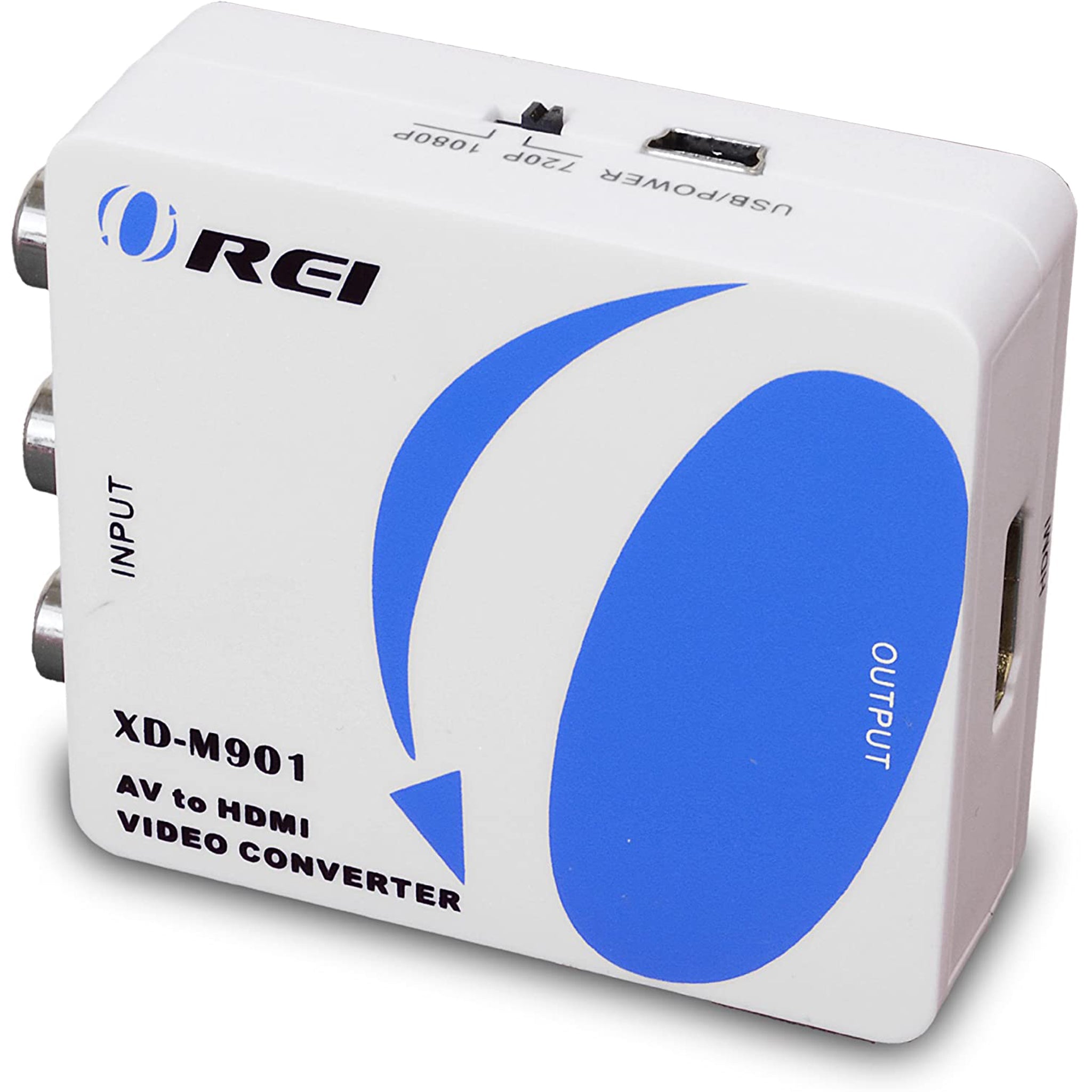

OREI XD-M901: PAL-NTSC RCA to HDMI Video Converter
LCD or PLASMA TV: Take your NTSC (American) HDTV to an overseas PAL country. Using the high definition quality conversion of the Orei XDM901 you can convert PAL TV signals to NTSC HDTV for viewing on your existing NTSC LCD or Plasma HDTV. Eliminating the need to buy a new multi-system TV set. Local PAL TV tuner like a Cable Box or Satellite Receiver is required. This converter does not tune channels. International travel and relocation: You can use your video equipment with it while traveling or relocating to a country using a different TV system. You can install it on ships, planes and for many industrial and business applications. Camcorders: Use your PAL HD camcorder in the USA. You can also convert movies from your camcorder. Game Systems: Use your Hi Definition PAL game system like Wii, PS2, PS3, XBOX, XBOX 360, etc... on a NTSC TV. Satellite, Over the air broadcast or Cable TV conversion
[shortdes]
Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
Supports HDMI 1080p or 720p output
Provide advanced signal processing with great precision, colors, resolutions, and details
[/shortdes] [tab]
AUDIO AND VIDEO
INPUT PORTS:
1xRCA
OUTPUT PORTS:
1xHDMI
COMPLIANCES
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.4
VIDEO OUTPUT
Video Bandwidth:
148.5MHz
Video Resolutions:
Up to 1080p@60Hz
Color Space:
RGB
Color Depth:
8BIT
SUPPORTED RESOLUTIONS
Composite Input:
PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N
Output Resolutions:
1080p@60Hz, 720p@60Hz
SIGNALS
TMDS Signal:
3.3V
DDC Signal:
5V
SUPPORTS SCREEN FLIP, DOWNSCALER FUNCTION
Screen Flip Function:
No
Downscaler Function:
No
DIMENSIONS & WEIGHT
Height:
20mm
Width:
55mm
Depth:
66mm
Weight:
40g
PROTECTION
Operation Temperature:
32 - 104°F / 0 - 40°C
Storage temperature:
-4 - 140°F / -20 - 60°C
Relative Humidity:
20~90% RH (non-condensing)
ESD Protection:
Human body model:+/-8 kV (air-gap discharge) +/- 4 kV (contact discharge)
POWER
Power Consumption (Max):
2.05W
Power Supply:
USB cable
PHYSICAL PROPERTIES
Color:
White
Housing:
Plastic
PACKAGE CONTENTS
1x Video Converter
1x USB cable
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
General Information
UPC
887476367000
