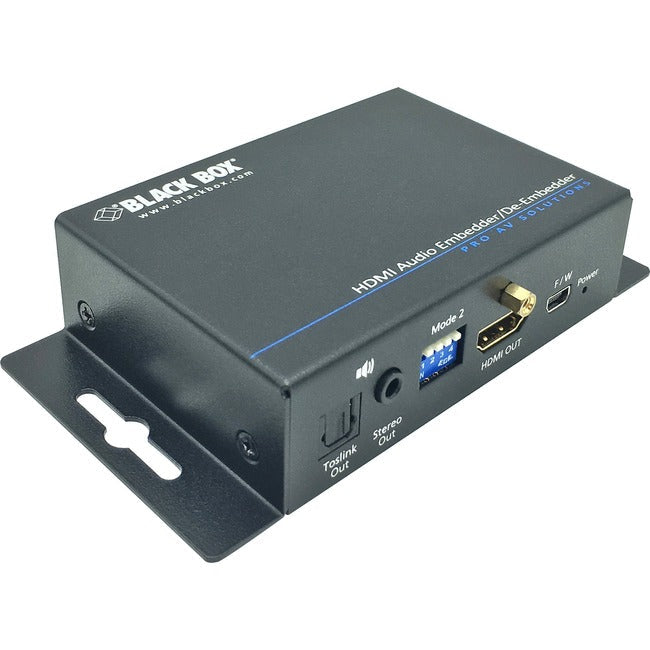

Black Box Audio Embedder/De-embedder - HDMI 2.0
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Create audio channels where there was not an existing one.
- De-embed audio from HDMI signal and output it to 3.5-mm analog or digital optical sound systems.
- Can de-embed audio without being connected to an HDMI display.
- Supports embedding and de-embedding at the same time.
- Controlled through simple DIP switch configuration.
- Create audio channels where there was not an existing one.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports ARC audio extraction via TOSLINK.
- HDCP 2.2 compliant.
- Supports audio embedding or extraction via analog stereo or digital TOSLINK.
- Support HDMI 2.0 with 4K60 video.
- 2-in-1 solution.
- Add audio to a video signal or extract audio from an HDMI signal with embedded audio.
Product Type: Signal Extractor
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: Mountable
Manufacturer: Black Box Corporation
Product Name: Audio Embedder/De-embedder - HDMI 2.0
Manufacturer Part Number: AEMEX-HDMI-R2
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Package Contents:
- Audio Embedder/De-embedder - HDMI 2.0
- 1 x 5-Volt, 4-Amp Power Supply with Adapter Clips
- 2 x Mounting Screws
- User Manual
Limited Warranty: 3 Year
Weight (Approximate): 0.57 lb
