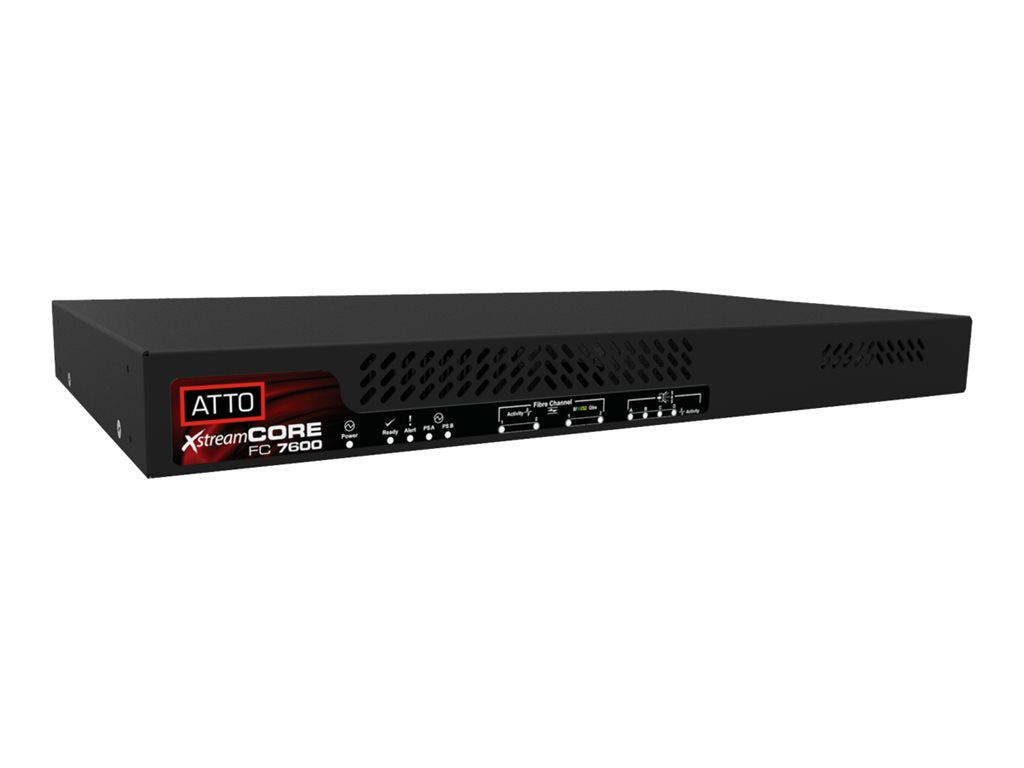

ATTO XstreamCORE FC 7600 - Storage controller - 4 Channel - SAS 12Gb/s - 32Gb Fibre Channel
- Up to 6400MB/s sustained transfer rate
- Up to 1.2M 4K IOPS per controller
- 4 microsecond end-to-end latency
- Host LUN Mapping initiator to LUN mapping
- Drive Map Director patented SAS device mapping
- Supports up to 240 drives (extendable to 960 for qualified customers)
- Supports SAS and SATA flash solid state disk drives (SSD)
- Supports SAS and SATA hard disk drives
- Supports SAS Tape Drives
- Supports SAS/SATA Optical Drives
- Supports Shingled Magnetic Recording Archive Drives (SMR)
- Supports RAID arrays (Multiple LUNs behind a target)
- VMware Ready with VAAI certification
- Multi-initiator access for all attached storage
- Support for Extended Copy (LID1) to offload CPU, memory and storage fabrics
- Built in temperature monitoring
- Dual hot-swappable power supplies
- SNMP and SNMP MIB support
- Top-of-rack controller
- No batteries
- Two 32Gb/s Fiber Channel ports
- Auto negotiates to 32Gb, 16Gb, or 8Gb Fiber Channel
- Includes two optical 32Gb/s LC SFP+ modules
- Four x4 12Gb/s Mini-SAS HD connectors (16 phys)
- Supports SAS processor devices
- Statistic Reporting for SAS and Fiber Channel ports
- RoHS Compliant
- Advanced integration available for OEM applications
The XstreamCORE FC 7600 achieves up to 1.2M 4K IOPS or 6.4GB/s throughput per controller with only 4 microseconds of added latency. XstreamCORE supports Extended Copy (LID1) data mover commands and will offload up to 5.2GB/s of data from CPU, memory, networks and storage fabrics leaving more resources for VMs and applications running on the host. Build solutions with up to 240 SAS SSD/HDD devices behind a pair of controllers and better manage, monitor and utilize this storage with current and future features built into XstreamCORE.
