Eaton eATS30 Remote Power Management Switch

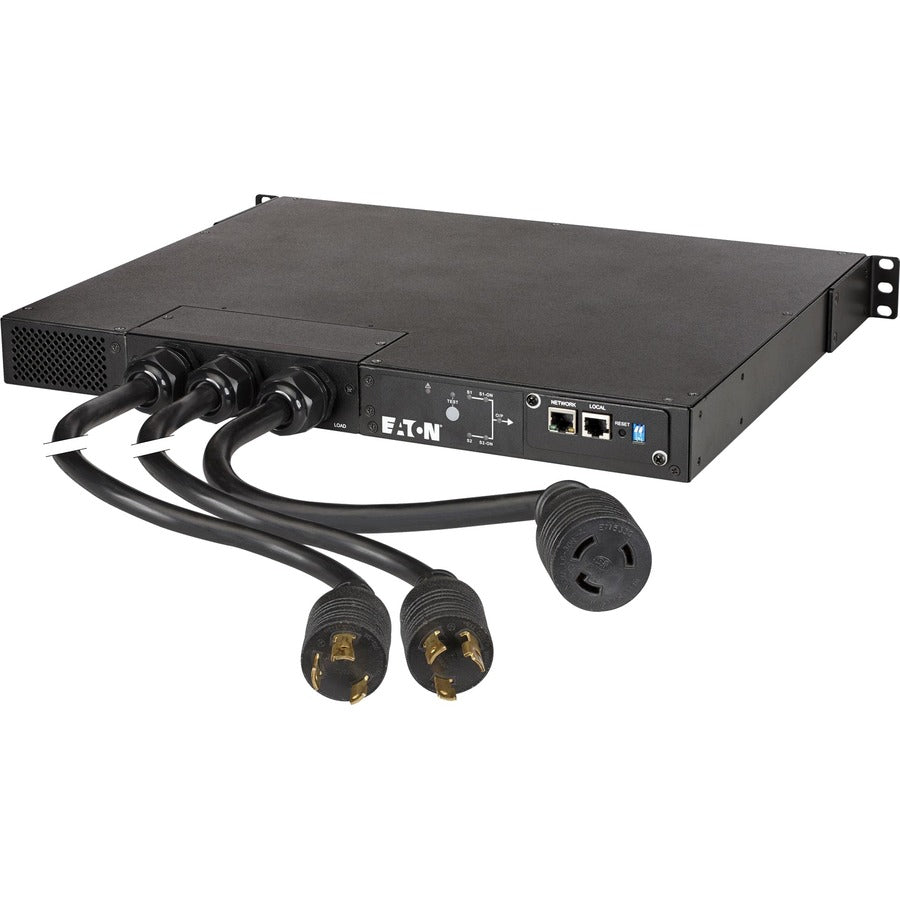

The Eaton EATS30 Monitored rack automatic transfer switch operates at 200-240 volt single-phase 24 amps. The dual inputs and single output are through a terminal block for hard wired power or flexible cord capability. The transfer switch features fast 10 ms transfer between sources, supports out-of-phase (non-synchronous) power sources and has remote monitoring through the included network card using SNMP or a web browser.
- Dual input rack automatic transfer switch with intelligent control and monitoring
- Fast transfer time of 10ms to ensure equipment uptime and reliability
- Intelligent control circuitry supports out-of-phase power sources (non-synchronized) for reliablity
- Network connectivity supports voltage, current and transfer monitoring over SNMP or using a standard web browser
- Supports high power devices or allows for connection of a rack power distribution unit to support multiple receptacles

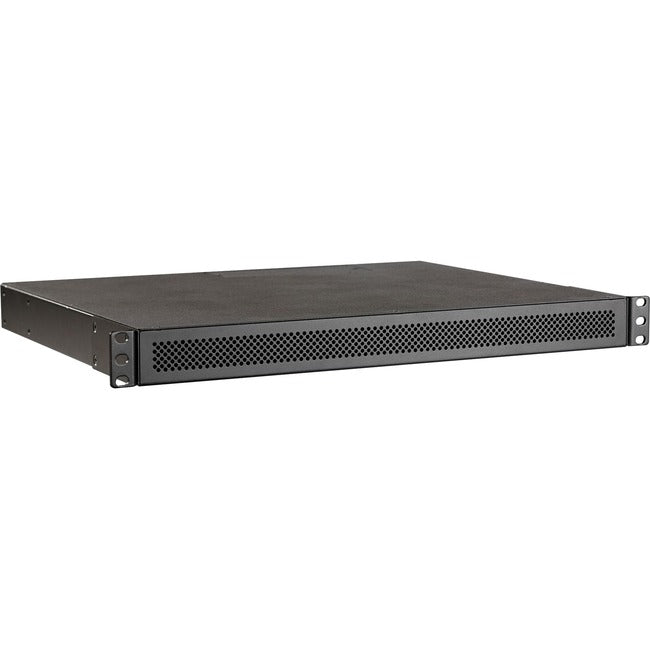

- Low profile, 1U rackmount design
- Offers remote monitoring and email alerts with included network card
- Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
- Power is transferred back to the primary source when it is automatically restored
- Provides power redundancy to equipment with 1 or 2 power supplies
- Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
Product Type: Remote Power Management Switch
Brand Name: Eaton
Manufacturer: Eaton Corporation
Product Model: eATS30
Product Name: eATS30 Remote Power Management Switch
Manufacturer Part Number: EATS30H
Manufacturer Website Address: http://www.eaton.com
