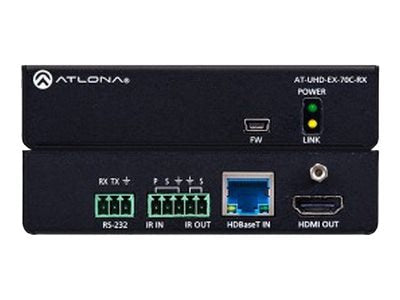

Atlona AT-UHD-EX-70C-RX 4K HDBaseT Receiver
The Atlona AT-UHD-EX-70C-RX is a professional-grade 4K HDBaseT receiver designed for integrators and AV professionals who need reliable, long-distance HDMI signal distribution. This HDBaseT receiver transmits pristine 4K/UHD video and multi-channel audio up to 230 feet (70 meters) over standard category cable, eliminating expensive fiber runs and simplifying installation. With integrated Power over Ethernet (PoE), RS-232 and IR control pass-through, and HDCP 2.2 compliance, it's the ideal solution for corporate boardrooms, education facilities, hospitality venues, and large-scale AV systems requiring secure, scalable signal extension.
Key Features
- Extends 4K/UHD HDMI signals up to 230 feet (70 meters) over Cat5e/Cat6 cable
- Supports video resolutions up to 4K/UHD @ 60 Hz with 4:4:4 chroma sampling
- Embedded multi-channel audio support for immersive sound distribution
- HDCP 2.2 compliant for protected content delivery
- Integrated Power over Ethernet (PoE) eliminates separate power runs
- RS-232 and IR control pass-through for seamless device management
- EDID communication for automatic source-display handshaking
- Quarter rack width metal enclosure for professional installations
- Rear panel I/O configuration for clean, uncluttered wire management
Technical Specifications
| Specification |
Details |
| Manufacturer |
Strategic Sourcing (Atlona) |
| Model Number |
AT-UHD-EX-70C-RX |
| Product Type |
HDBaseT Receiver |
| Maximum Distance |
230 feet (70 meters) over Cat5e/Cat6 |
| Video Resolution |
4K/UHD @ 60 Hz, 4:4:4 chroma |
| Audio Support |
Multi-channel embedded audio |
| HDCP Compliance |
HDCP 2.2 |
| Control Options |
RS-232, IR pass-through |
| Power Delivery |
Power over Ethernet (PoE) |
| Enclosure |
Quarter rack width metal chassis |
| Connectors |
Rear panel I/O configuration |
Frequently Asked Questions
What is an HDBaseT receiver and how does it work?
An HDBaseT receiver is a professional AV component that decodes video, audio, and control signals transmitted over standard category cable (Cat5e/Cat6). The Atlona AT-UHD-EX-70C-RX receives these signals from an HDBaseT transmitter and converts them back to HDMI output, allowing you to extend 4K video and audio up to 230 feet without signal degradation or expensive fiber infrastructure.
Can I use this 4K receiver with existing Cat5e cabling?
Yes. The 4K HDBaseT receiver is compatible with Cat5e cabling for distances up to 230 feet, though Cat6 is recommended for optimal performance and future-proofing. This flexibility makes it ideal for retrofitting existing installations without rewiring.
Does the HDBaseT receiver support Power over Ethernet?
Yes. The integrated Power over Ethernet (PoE) capability eliminates the need for a separate power supply at the receiver location, reducing cable clutter and simplifying installation in remote or difficult-to-access areas.
Is this HDMI receiver HDCP 2.2 compliant for protected content?
Absolutely. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant, ensuring secure transmission of copy-protected content from streaming services, Blu-ray players, and other premium sources without compatibility issues.
