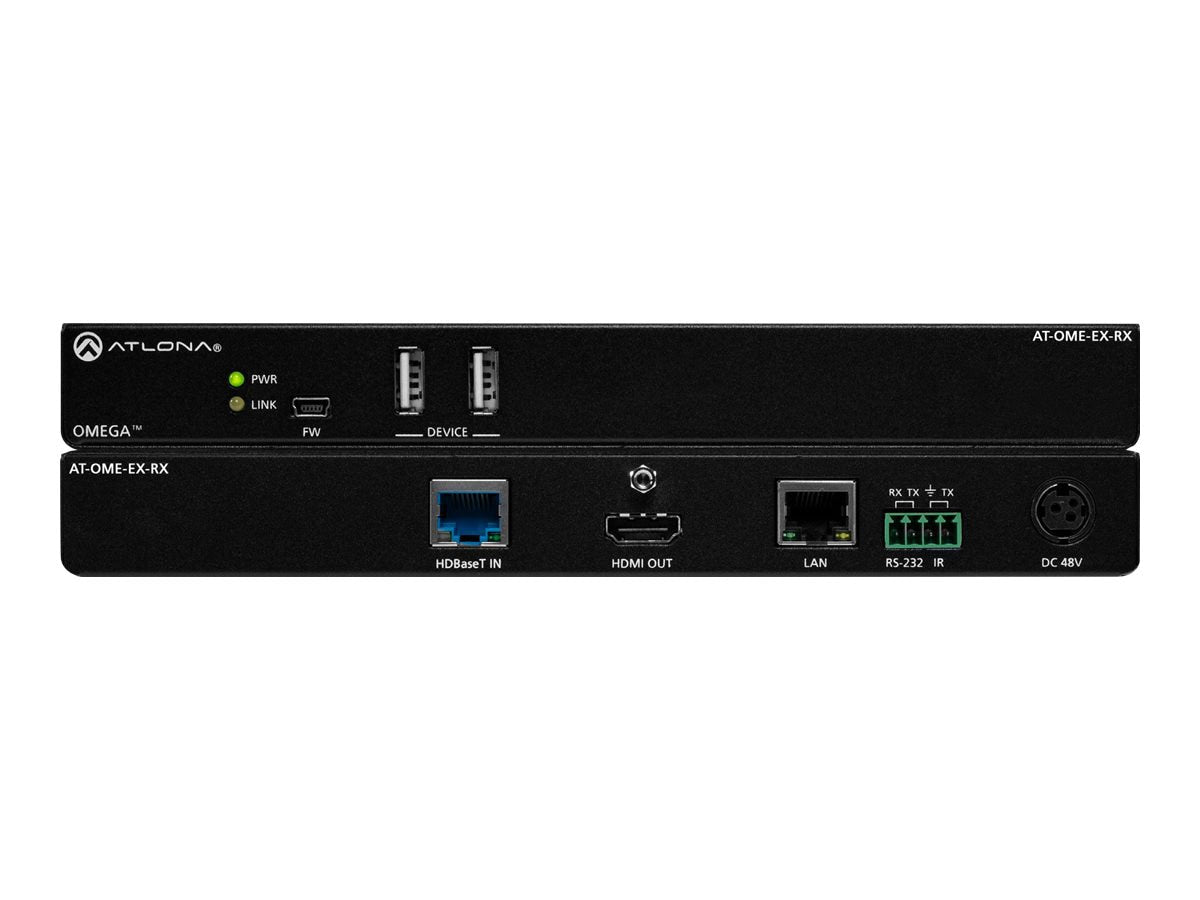

The Atlona AT-OME-EX-RX Omega 4K HDBaseT receiver extends professional video and control signals up to 330 feet over a single Cat6/6a cable, making it ideal for enterprise AV systems, video conferencing installations, and interactive display deployments. This 4K HDMI receiver combines video distribution with integrated USB extension, Ethernet, and PoE power delivery—eliminating the need for multiple cable runs and simplifying system architecture for modern collaboration spaces.
Key Features
- 4K/60 video reception (4:2:0) with HDCP 2.2 compliance
- HDBaseT technology extends signals up to 330 feet (100 meters) over Cat6/6a
- Integrated USB extension for video conferencing cameras and peripherals
- Dual USB interfaces for connected devices (cameras, soundbars, displays)
- PoE (Power over Ethernet) support eliminates separate power requirements
- Embedded audio, Ethernet, and control signal transmission
- IR, RS-232, and IP control signal reception
- Part of Atlona Omega Series for seamless AV integration
Technical Specifications
| Specification |
Details |
| Manufacturer |
STRATEGIC SOURCING (Atlona) |
| Model |
AT-OME-EX-RX |
| Product Series |
Omega |
| Video Format |
4K/60 4:2:0 |
| Maximum Distance |
330 feet (100 meters) |
| Cable Type |
Cat6/6a |
| HDCP Support |
HDCP 2.2 |
| USB Interfaces |
2x USB |
| Control Signals |
IR, RS-232, IP |
| Power Delivery |
PoE (Power over Ethernet) |
| Audio |
Embedded audio support |
Frequently Asked Questions
What is an HDBaseT receiver and how does it work?
An HDBaseT receiver like the AT-OME-EX-RX decodes video, audio, control, and data signals transmitted over a single Cat6/6a cable from an HDBaseT transmitter. It extends 4K video and USB signals up to 330 feet, making it perfect for large venues, multi-room installations, and distributed AV systems without signal degradation.
Can I use this 4K HDMI receiver for video conferencing?
Yes. The integrated USB extension and dual USB interfaces make this 4K receiver ideal for video conferencing setups. Connect your camera, microphone, and display to the receiver, and the USB extension transmits control and data signals back to your conferencing endpoint over the same Cat6 cable as video.
Does the AT-OME-EX-RX require a separate power supply?
No. The receiver includes PoE support, allowing it to draw power directly from the Cat6/6a cable connected to a PoE-enabled switch or injector. This eliminates the need for a separate power outlet and reduces installation complexity.
What control signals does this HDBaseT receiver support?
The AT-OME-EX-RX receives and passes through IR (infrared), RS-232 (serial), and IP (network) control signals, enabling full system control over the same cable infrastructure as your video and audio.
