Atlona AT-OME-EX-KIT-LT: HDBaseT Extender Kit with USB for Video Conferencing
The Atlona AT-OME-EX-KIT-LT is a professional-grade HDBaseT extender kit engineered for modern huddle rooms and video conferencing spaces. This Omega Series solution transmits crystal-clear HDMI video, embedded audio, USB 2.0 signals, and control data over extended distances using a single Cat5e/Cat6 cable. Whether you're deploying a collaborative workspace or upgrading your AV infrastructure, this 4K extender delivers reliable performance with HDCP 2.2 compliance and seamless integration with existing control systems.
Key Features
-
4K/UHD 60 Hz Video — Transmit 4K resolution with 4:2:0 chroma subsampling up to 130 feet (40 meters)
-
Extended 1080p Range — Reach up to 230 feet (70 meters) for Full HD video at 60 Hz
-
USB 2.0 Extension — Connect cameras, speakerphones, and peripherals remotely without signal loss
-
IR & RS-232 Control — Extend infrared and serial control signals for complete system management
-
Embedded Audio Support — HDMI audio passes through without additional cabling
-
HDCP 2.2 Compliant — Secure content protection for premium video sources
-
Cat5e/Cat6 Compatible — Uses standard network cabling for simplified installation
-

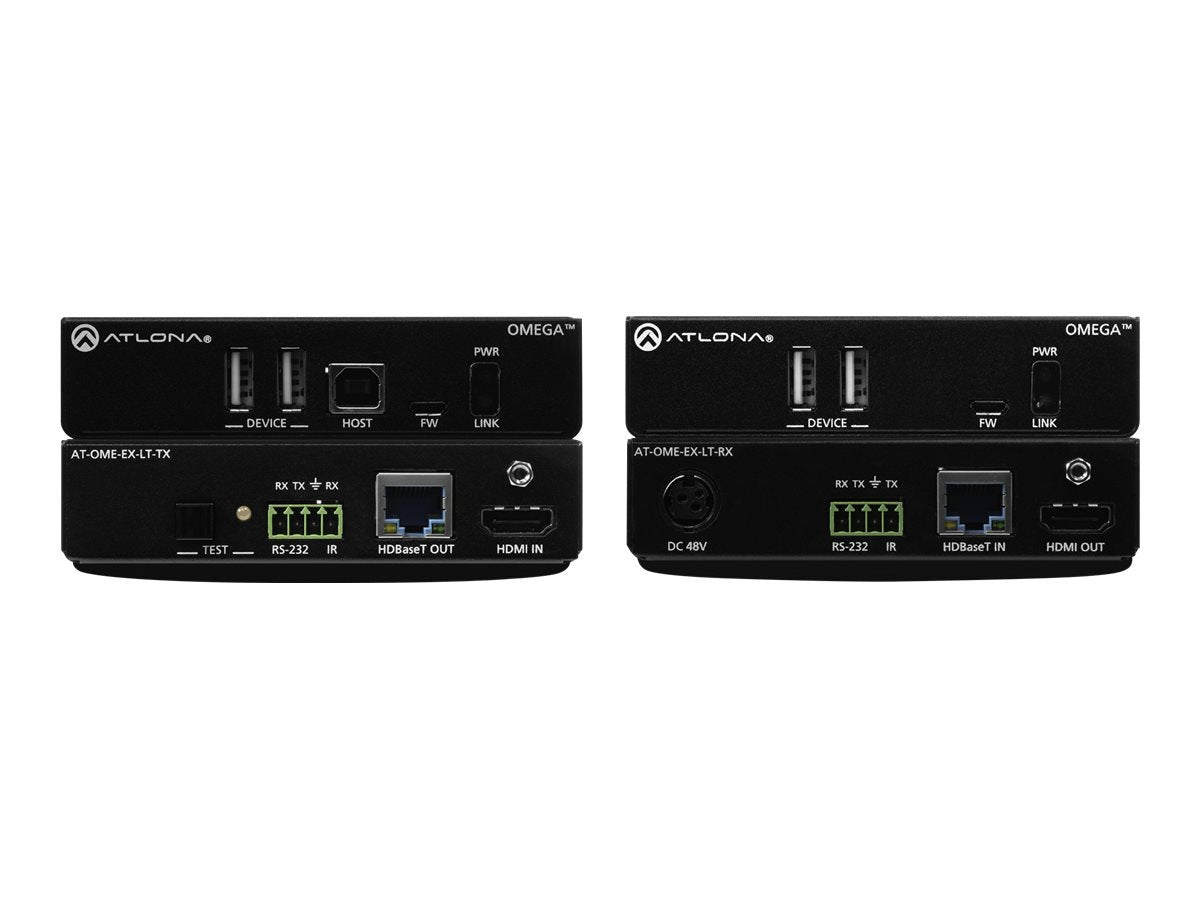

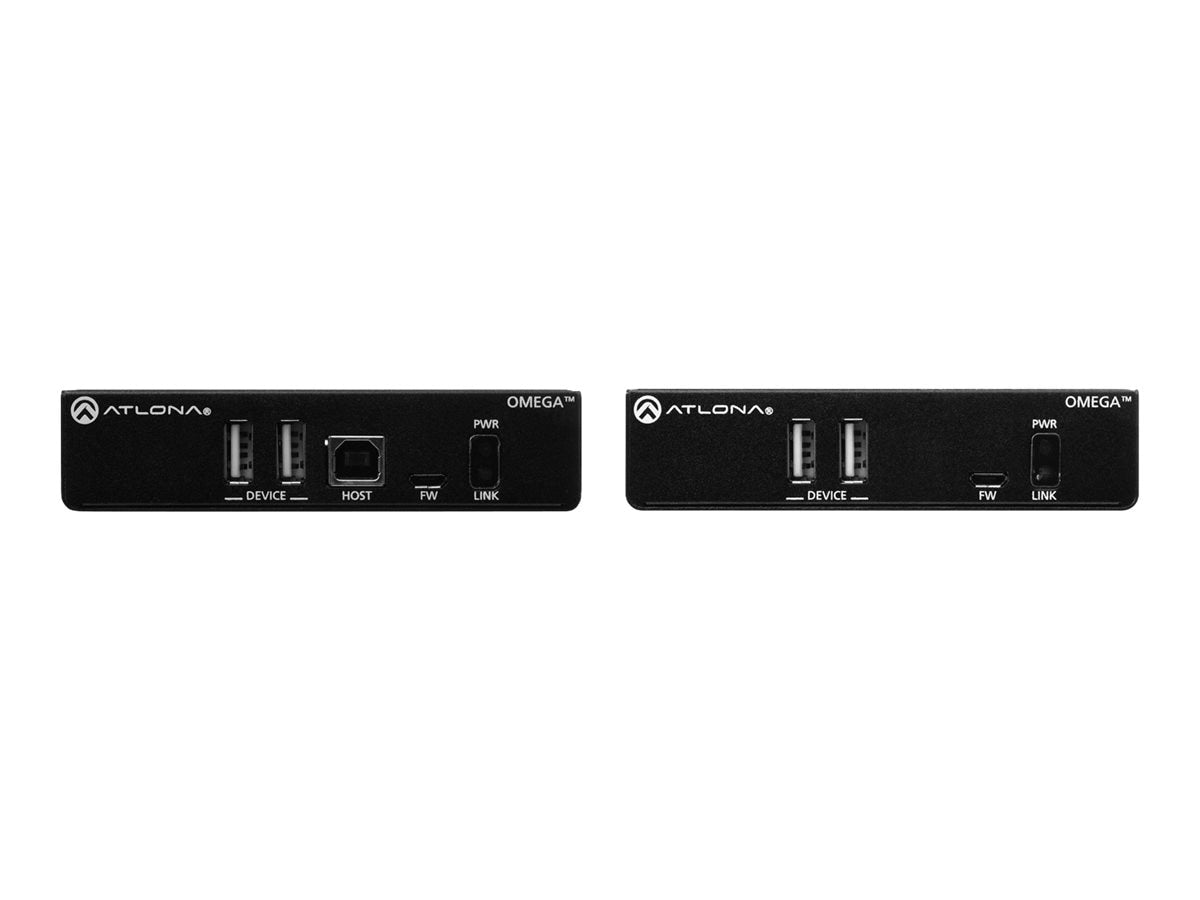

Compact TX-RX Design — Transmitter and receiver units fit seamlessly into AV racks and wall plates
Technical Specifications
| Specification |
Details |
| Manufacturer |
Strategic Sourcing (Atlona) |
| Part Number |
AT-OME-EX-KIT-LT |
| Product Series |
Omega HDBaseT |
| Video Resolution (4K) |
Up to 130 feet (40 meters) at 4K/UHD 60 Hz with 4:2:0 chroma subsampling |
| Video Resolution (1080p) |
Up to 230 feet (70 meters) at 1080p/60 Hz |
| Video Input/Output |
HDMI |
| Audio |
Embedded HDMI audio |
| USB Support |
USB 2.0 extension for peripherals |
| Control Signals |
IR (infrared) and RS-232 serial control |
| Content Protection |
HDCP 2.2 compliant |
| Cable Type |
Cat5e/Cat6 (standard network cable) |
| Kit Contents |
Transmitter (TX) and Receiver (RX) units |
| Application |
Video conferencing, huddle rooms, collaborative spaces |
Frequently Asked Questions
What is an HDBaseT extender kit and how does it work?
An HDBaseT extender kit transmits HDMI video, audio, USB, and control signals over a single Cat5e or Cat6 cable. The transmitter (TX) connects to your source device, while the receiver (RX) connects to your display or endpoint. This eliminates the need for multiple cables and allows you to extend signals far beyond standard HDMI cable limits—up to 130 feet for 4K or 230 feet for 1080p.
Can I use this 4K extender for video conferencing in huddle rooms?
Yes. The Atlona Omega AT-OME-EX-KIT-LT is specifically designed for video conferencing applications in huddle rooms. It supports 4K video, embedded audio, USB 2.0 for cameras and speakerphones, and IR/RS-232 control for managing displays and peripherals remotely—making it ideal for modern collaborative workspaces.
How far can I extend 4K video with this HDBaseT kit?
This 4K extender transmits 4K/UHD video at 60 Hz with 4:2:0 chroma subsampling up to 130 feet (40 meters). For longer distances, you can extend 1080p video up to 230 feet (70 meters). Distance depends on cable quality and environmental factors.
Does the USB 2.0 extension support video conferencing peripherals?
Absolutely. The USB 2.0 extension allows you to connect cameras, speakerphones, microphones, and other peripherals at the remote end without signal degradation. This is essential for huddle room setups where devices need to be positioned away from the main control point.
