AtlasIED IPX Series IP-8SCMF - IP speaker - Ethernet, Fast Ethernet, PoE-Plus - 15 Watt - 2-way - coaxial - white, RAL 9010 (grille color - white)
- IEEE802.3 10/100Base-T Ethernet
- IEEE 802.1q tagging
- IEEE 802.11AT compliant
- Aux audio line-in balanced
- Aux audio line-out balanced
- 2 general purpose inputs
- PoE+ enabled
- 1 general purpose output
- Phone/night loud ringer
The AtlasIED IPX Series IP-8SCMF indoor wall mount IP speaker with display, talkback, and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED IP-8SCMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements and intercom, while leveraging the WAN/LAN Network Architecture.
When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco's Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco's SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).
IP-8SCMF IP speakers with display, talkback, and flasher provide equality "effective communication".
IP-8SCMF indoor speakers are fitted with a dual cone 8" (205 mm) speaker that is optimized for voice intelligibility.
While in Standby, the IP-8SCMF displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date.
IP-8SCMF includes an omnidirectional subminiature, electret condenser microphone that is mounted behind the grill's steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.

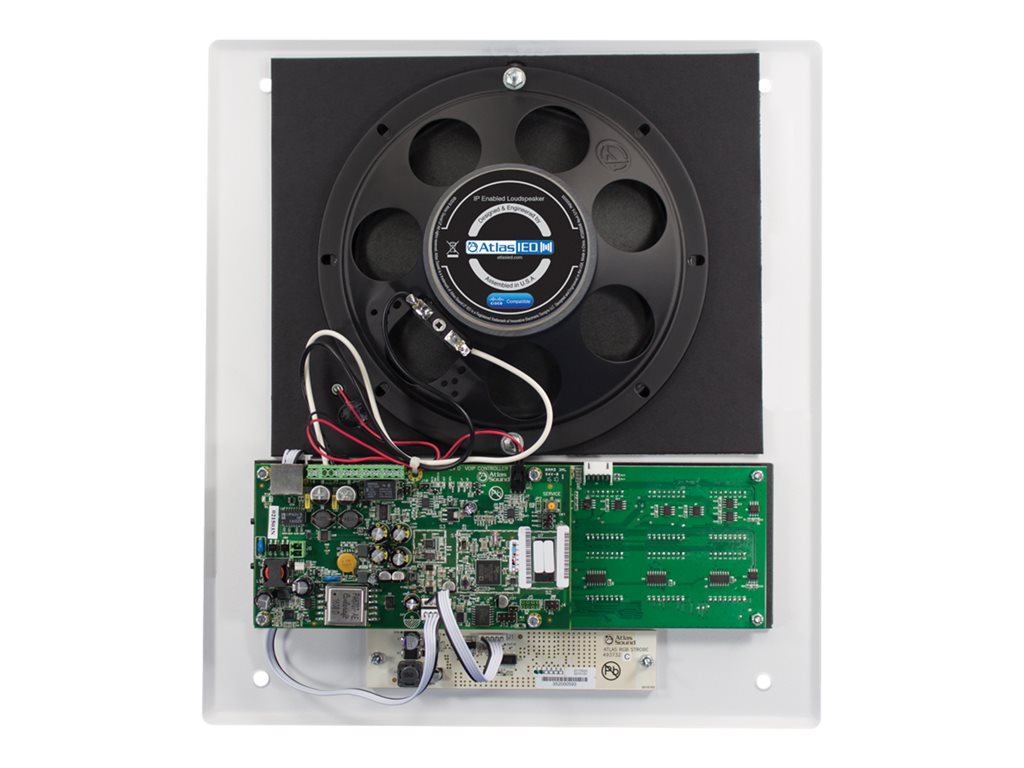

All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.
