ATEN VE170RQ Video Console-TAA Compliant

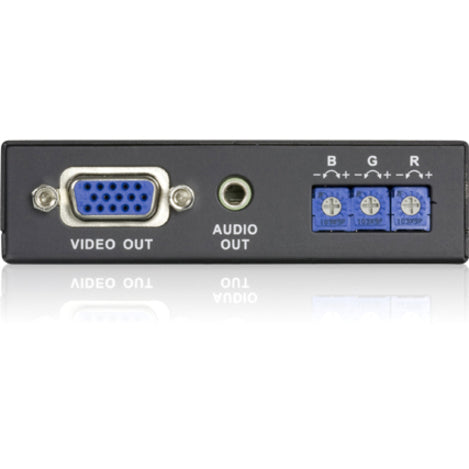

VE170RQ is the long distance receiver of the VE170 series Audio / Video extending system, it connects to a VE170T over standard CAT5e cabling [ sheilded recommended ] to a maximum distance of 1000ft. and a maximum video resolution of 1920x1200 @ 60Hz. To ensure the highest quality of video, the VE170RQ has three manual adjustments to compensate for the time shift between the Red, Green, and Blue color channels that occurs beyond 500 ft.
- Rack-mountable
- Complies with VESA FDMI mount standard
- Built-in 8KV/15KV ESD protection
- Audio enabled (mono)

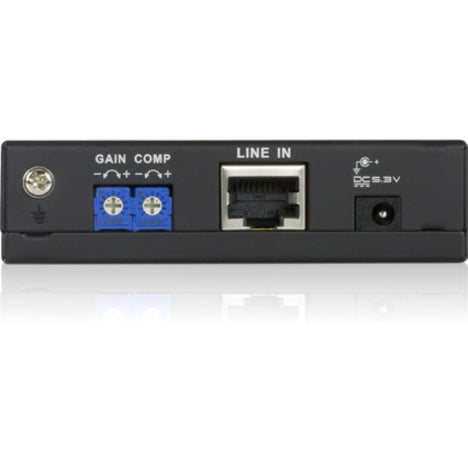

- Adjustable gain/compensation control
- Superior video quality -
- 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
- Deskew Function - allows you to synchronize the time delay of RGB signals to compensate for distance
- Long distance transmission up to 300 m
Product Type: Video Extender Receiver
Receiver Height: 0.89"
Receiver Width: 3.56"
Receiver Depth: 5.03"
Receiver Weight (Approximate): 8.80 oz
Country Of Origin: Taiwan
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: VE170RQ
Product Name: VE170RQ Video Console
Manufacturer Part Number: VE170RQ
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- VE170RQ Video Console
- Power Adapter
- Rack Mount Kit
- Grounding Wire
- User Guide
