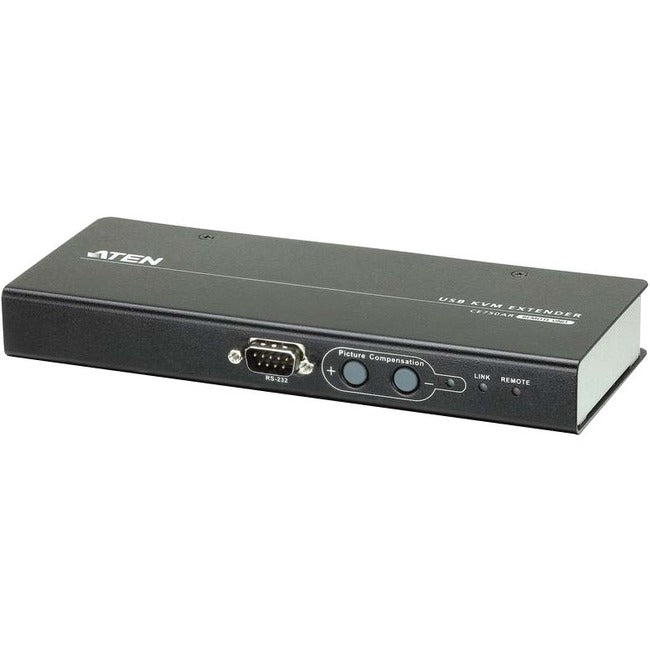

ATEN USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)-TAA Compliant
The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.
The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).
More from the Manufacturer
- Adjustable gain control - automatically and manually adjusts signal strength to compensate for distance
- Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes
- USB overcurrent detection and prevention
- Supports stereo speakers and stereo microphone
- RS-232 serial ports - allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)

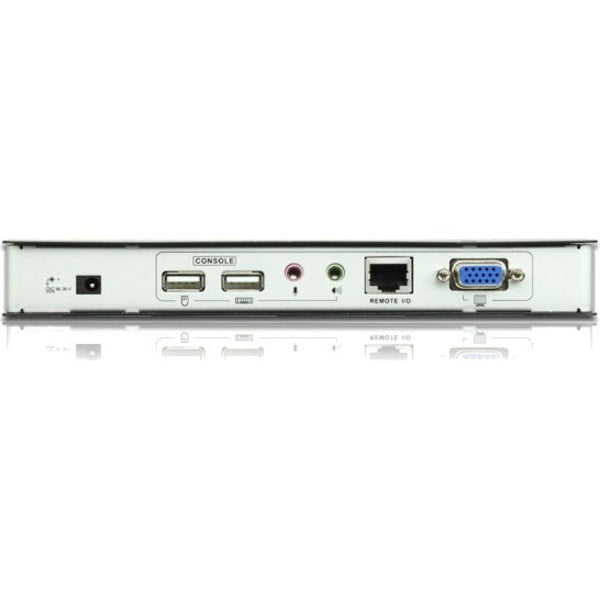

- USB keyboard and USB mouse ports
- Built-in ASIC for greater reliability and compatibility

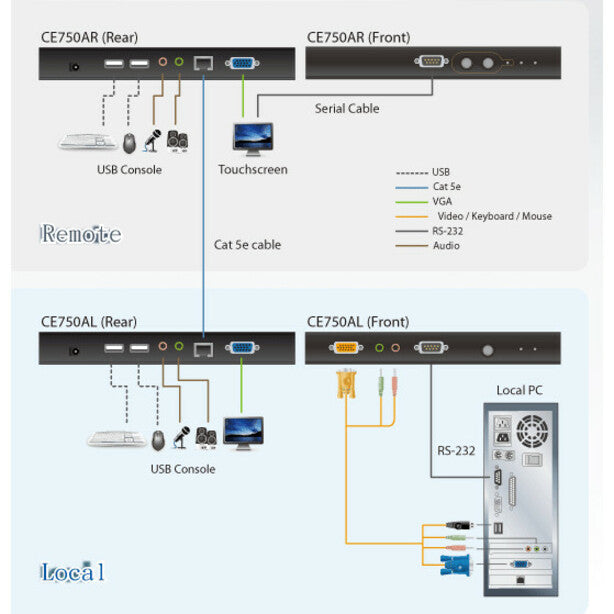

- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Local and Remote units connect at distances up to 200 meters using Cat 5e cable
Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 0.98"
Transmitter Width: 3.40"
Transmitter Depth: 7.95"
Receiver Height: 0.98"
Receiver Width: 3.35"
Receiver Depth: 7.95"
Transmitter Weight (Approximate): 1.04 lb
Receiver Weight (Approximate): 1.04 lb
Country Of Origin: Taiwan
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: CE750A
Product Name: USB VGA/Audio Cat 5 KVM Extender (1280 x 1024@200m)
Manufacturer Part Number: CE750A
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- 1 x CE750AL USB KVM Extender (Local Unit)
- 1 x CE750AR USB KVM Extender (Remote Unit)
- 1 x Custom KVM Cable Set
- 2 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
Limited Warranty: 2 Year
