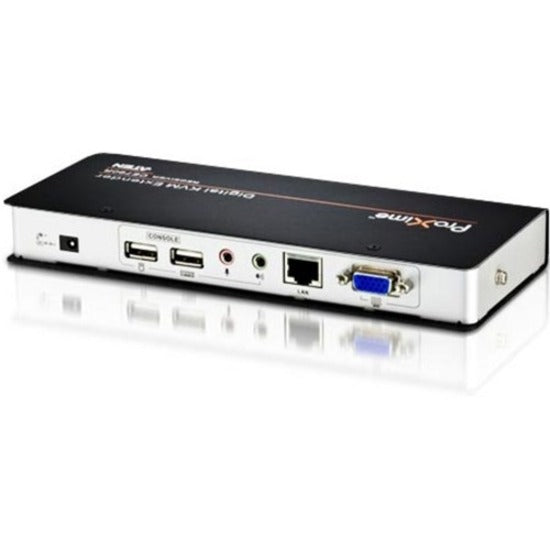

ATEN Proxime CE770 KVM Console/Extender-TAA Compliant
The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
More from the Manufacturer
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- USB overcurrent detection and prevention
- Audio Enabled - supports stereo speakers and microphone
- Sun/Mac keyboard support and emulation
- RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Auto Signal Compensation (ASC)
- Built-in ASIC for greater reliability and compatibility
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Weight (Approximate): 1.08 lb
Receiver Weight (Approximate): 1.06 lb
Country Of Origin: Taiwan
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: CE770
Product Name: Proxime CE770 KVM Console/Extender
Product Line: ProXime
Manufacturer Part Number: CE770
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- CE770 KVM Console/Extender
- 2 x Power Adapter
- 1 x Rack Mount Kit
- 2 x Grounding Wires
- 1 x User Manual
- 1 x Quick Start Guide
- 1 x USB KVM Cable (1.8m)
Limited Warranty: 2 Year
