ATEN Long Distance DVI Optical KVM Extender-TAA Compliant

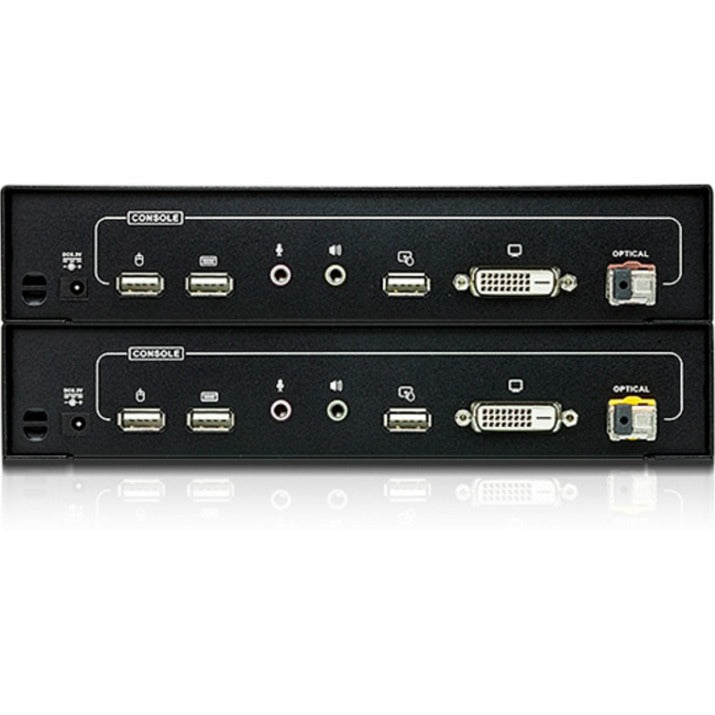

The CE690 is a DVI Optical KVM Extender that overcomes the length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over long distances. The CE690 can transmit KVM DVI signals extremely long distances - up to 12.4 miles (20 km) away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
Product Type: KVM Console/Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Transmitter Height: 1.70"
Transmitter Width: 6.40"
Transmitter Depth: 8.50"
Receiver Height: 1.70"
Receiver Width: 6.40"
Receiver Depth: 8.50"
Transmitter Weight (Approximate): 2.40 lb
Receiver Weight (Approximate): 2.40 lb
Country Of Origin: Taiwan
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: CE690
Product Name: Long Distance DVI Optical KVM Extender
Manufacturer Part Number: CE690
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- 1 x CE690L DVI Optical KVM Extender (Local Unit)
- 1 x CE690R DVI Optical KVM Extender (Remote Unit)
- 1 x Custom KVM Cable Set (6 ft./1.8m)
- 1 x USB Cable (6 ft./1.8m)
- 2 x Power Adapters
- 1 x Mounting Kit
- 1 x User Instructions
