Aten KVM Extender

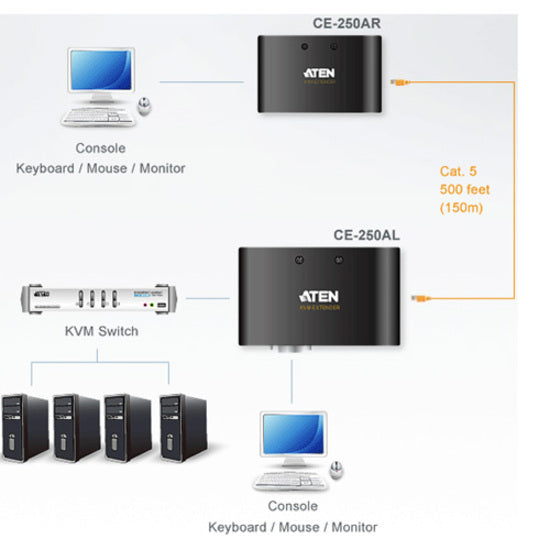

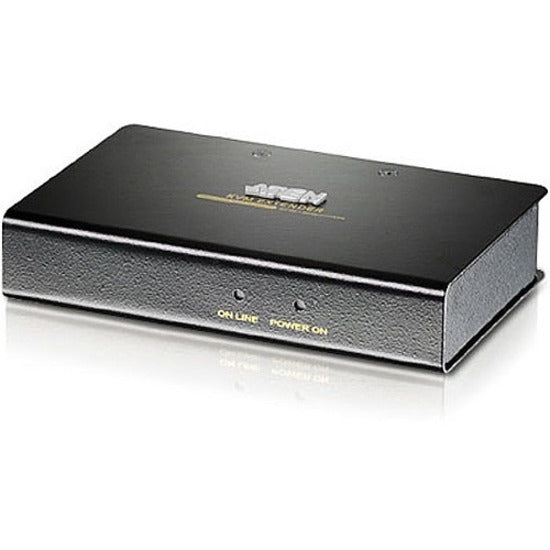

ATEN's new PS/2 console extender, CE250A, allows you to locate the keyboard, monitors and mouse at distance up to 500 feet from the source computer or KVM switch. The extension is accomplished with CAT5 or higher cabling, supported by ATEN's patented video enhancement technology. CE250A is useful in a variety of applications, and are helpful to maintain secured computers. Systems can be maintained in secure area while extended console can be conveniently accessed outside that area.

More from the Manufacturer

• Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient


• Built-in 8KV ESD protection and 2KV surge protection


• Automatic gain control - automatically adjusts signal strength to compensate for distance


• Supports Microsoft Intellimouse and the scrolling wheel on most mice


• Supports VGA, SVGA, and Multisync monitors - local monitor supports DDC; DDC2; DDC2B


• Supports Wide Screen formats


• High resolution video -up to 1280 x 1024 @ 60 Hz


• Pushbutton selection of the active console


• Dual console operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles


• Cat 5e cable to connect the Local and Remote Units - up to 150 m apart

Product Type: KVM Console/Extender
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: CE250A
Product Name: KVM Extender
Manufacturer Part Number: CE250A
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• 1 x CE250AL, local unit


• 1 x CE250AR, remote unit


• 1 x PS/2 KVM cable (6 ft.)


• 1 x Power Adapter


• 2 x Rack Mount kit


• 2 x Grounding Wire
