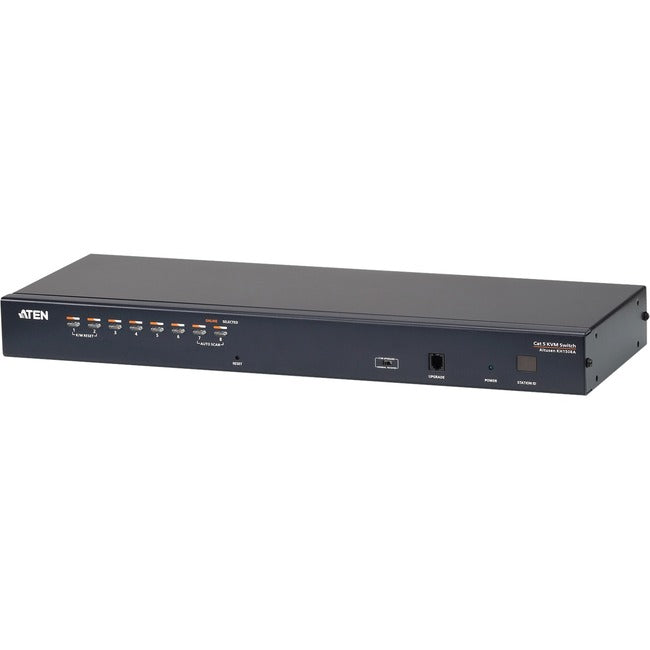

ATEN KH1508A KVM Extender
The KH1508A differs from the KH1508 in that the A release uses CPU modules with a permanent CAT5 cable molded into a single unit, and the console port now supports any combination of PS/2 and USB keyboards and mice

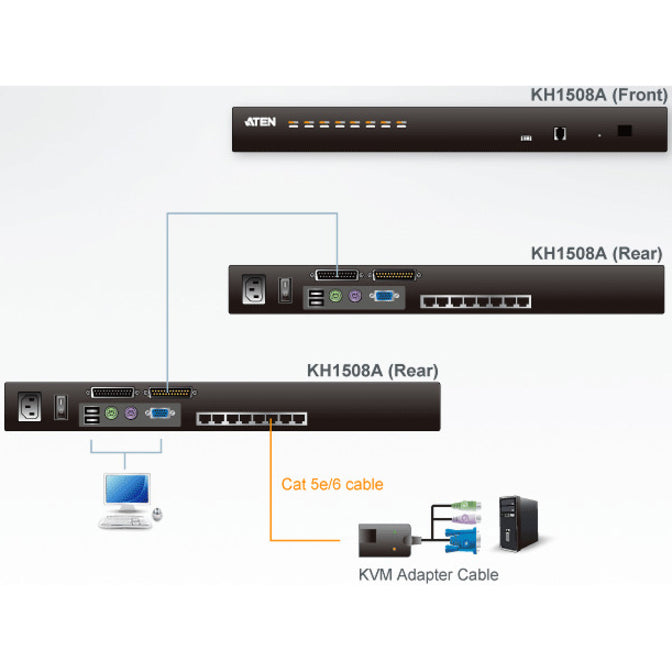

It allows access to eight directly connected computers, and through a daisy chain connection, an additional 31 KVMs to control a total of 256 computers from a single console.
- Two-Level Password Security - Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
- Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
- Multiplatform support - PC, Mac, Sun, and serial
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Configue port access rights for users on a port - by - port basis
- Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
- Console conversion - any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
- One KVM console control up to 8 directly connected computers
Product Type: KVM Extender
Transmitter Height: 1.70"
Transmitter Width: 17.20"
Transmitter Depth: 6.30"
Transmitter Weight (Approximate): 6 lb
Rack Height: 1U
Brand Name: ATEN
Form Factor: Rack-mountable
Manufacturer: ATEN Technology Inc
Product Model: KH1508A
Product Name: KH1508A KVM Extender
Manufacturer Part Number: KH1508A
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- KH1508A KVM Extender
- 1 x Firmware Upgrade Cable
- 1 x 3 Prong AC Power Cord
- 1 x Rack Mounting Kit
- 1 x User Manual
