ATEN CL3884NW - KVM console with KVM switch - 4 ports - USB - 18.5 - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - 350 cd/m� - 1000:1 - 20 ms - 4xHDMI - 1U"

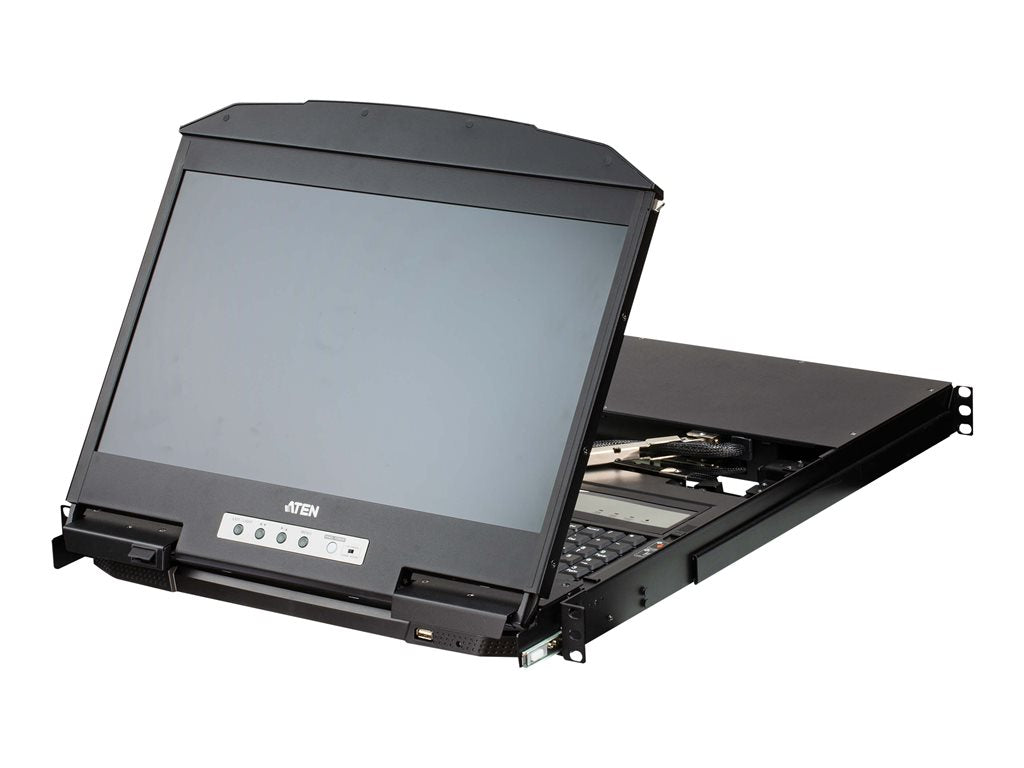

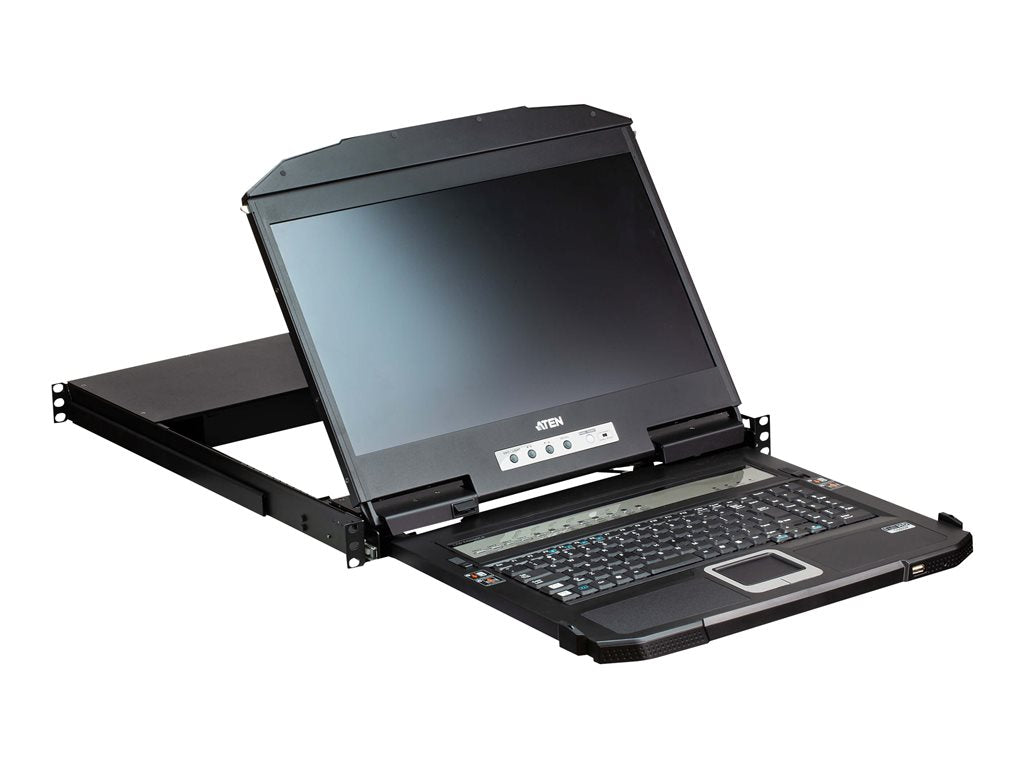

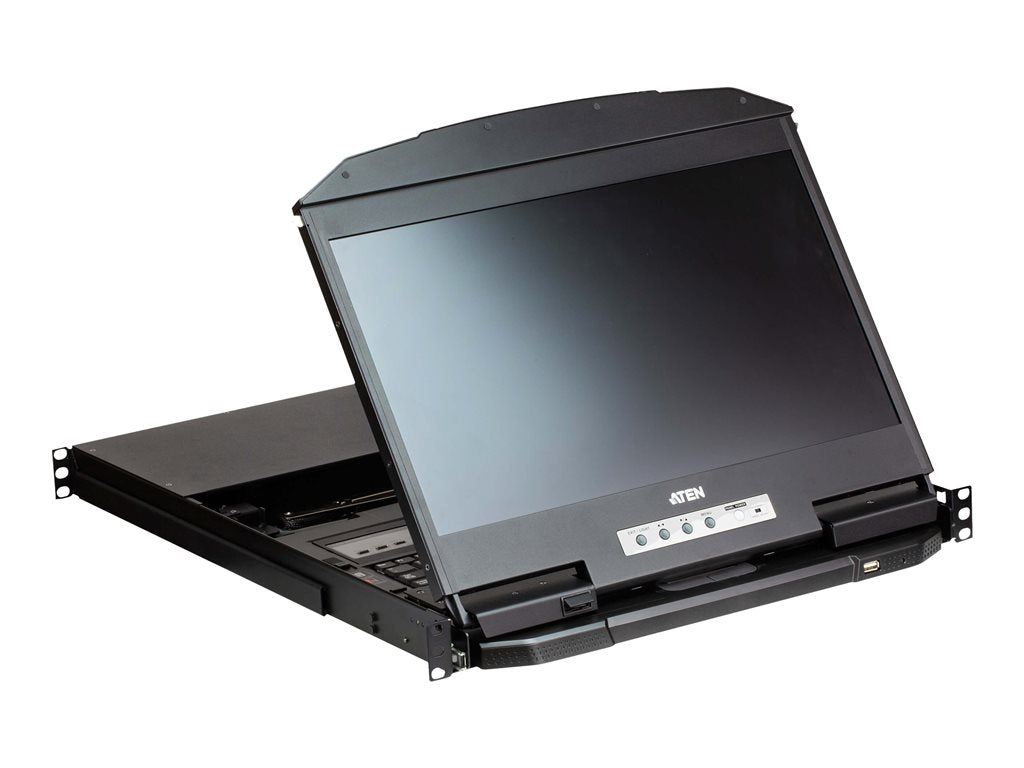

The ATEN CL3884NW LCD KVM switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
The CL3884NW offers dual console outputs that guarantee users real-time monitoring functionality. You can control both outputs to display the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP). The display modes have different layout options to allow you to customize which sources are being displayed. In addition, being able to cascade up to two levels, the CL3884NW can reach up to a maximum of 16 video sources that can be simultaneously displayed and controlled with independent keyboard and mouse.
Featuring Boundless Switching, the CL3884NW allows users to switch control to another computer by simply moving the mouse cursor across a screen border and onto the target computer display without limitations. With patented ATEN technology - Video DynaSync, users can enjoy better display resolutions and faster switching between systems.

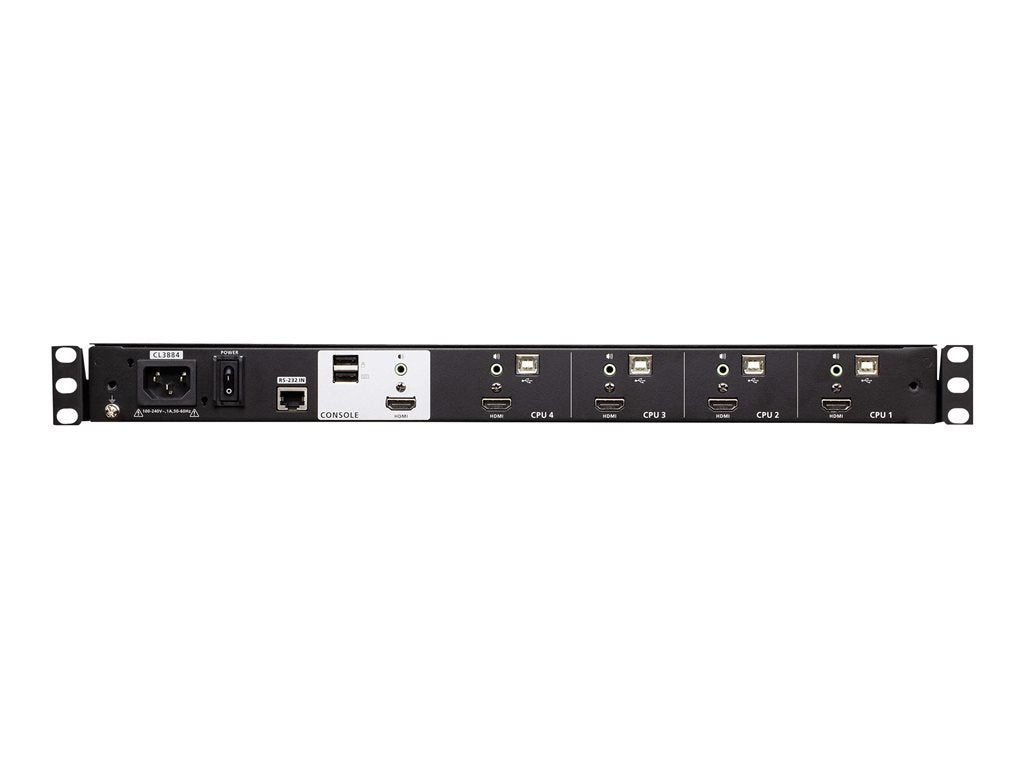

For added convenience, users can choose to manage the computer from an external console. The CL3884NW features a USB peripheral port on the unit's front panel, ports for the external KVM console (USB keyboard/mouse and HDMI monitor) on the rear panel, and audio ports for connecting audio speakers.
As a feature-rich LCD KVM switch, the CL3884NW is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is especially ideal for control rooms in any industry that seeks effective and efficient use of space.
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
- Quick Access Toolbar - intuitive user interface for editing
- Supports an extra console via USB/HDMI connectors for up to two console displays
- Display mode layout customization
- Superior video quality - 1920 x 1080 at 60 Hz
- Computer selection via push-buttons, hotkeys, OSD, and RS-232 commands
- Boundless Switching - simply moves the mouse cursor across windows to switch to other video sources
- Video DynaSync - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Easily resizes and/or repositions any PiP or PbP to suit users' viewing needs
- Cascade up to two levels - controls up to 16 computers (with up to 4 x 4 Multi-View mode)
- Auto Scan mode - enables continuous monitoring of user-selected computers
- Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
- Additional hot-pluggable USB peripheral port on front panel
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

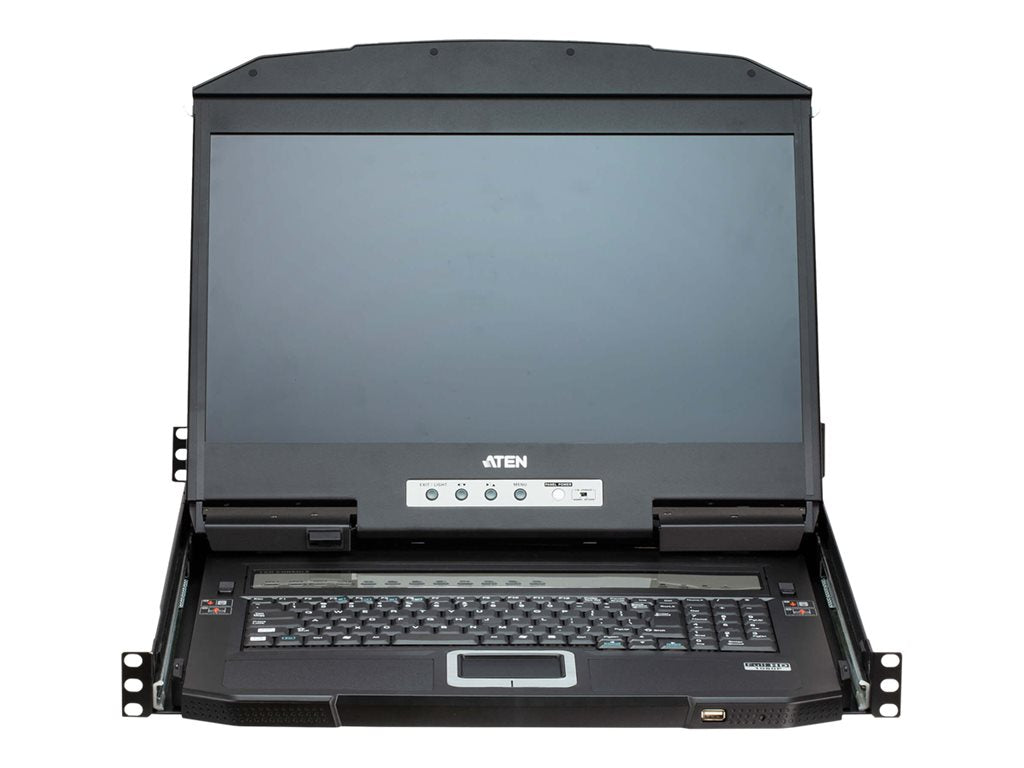

- Integrated KVM console with an 18.5" LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
- Console lock - enables the console drawer to remain securely locked away in position when not in use
