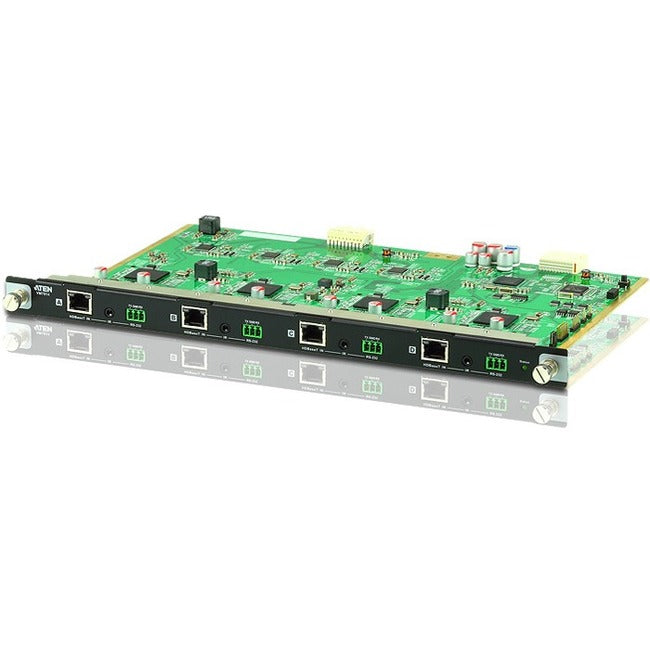

ATEN 4-Port HDBaseT Input Board-TAA Compliant
The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters to 4 HDBaseT receivers, and in combination with the ATEN Modular Matrix Switches to provide the ability up to 32 input and 32 output HDBaseT connections.
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- HDBaseT Connectivity - extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
Product Type: HDBaseT Input Board
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Metal
Country Of Origin: Taiwan
Brand Name: ATEN
Compatibility: ATEN Matrix Switchers:
Length: 13.9"
Manufacturer: ATEN Technology Inc
Product Model: VM7514
Product Name: 4-Port HDBaseT Input Board
Application/Usage: Matrix Switcher
Manufacturer Part Number: VM7514
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 4-Port HDBaseT Input Board
- 4 x Terminal Block Connectors
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 1.41 lb
