Aten 2A-130G Vga Edid Emulator

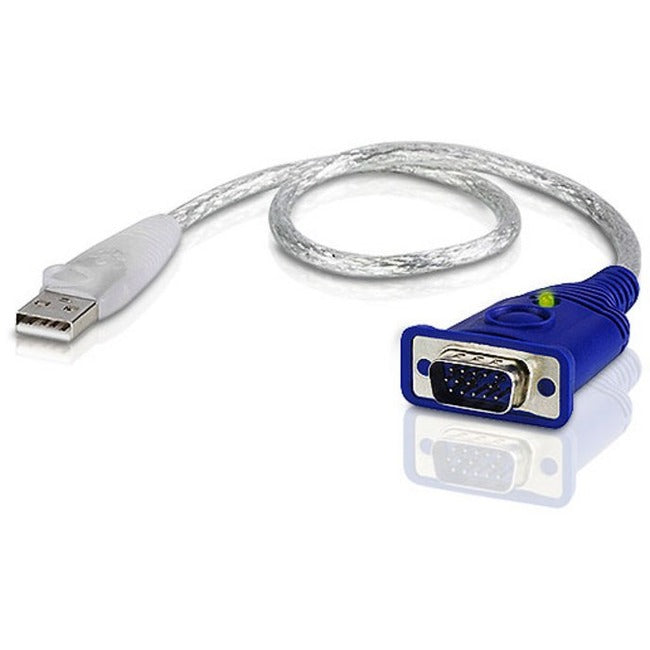

ATEN 2A-130G VGA EDID Emulator

The 2A-130G VGA EDID Emulator is designed for ATEN KVM extender or video extender installations that do not utilize a local monitor at the site where the computer/video source is located. The 2A-130G emulates and stores a default ATEN EDID (Extended Display Identification Information) setting in a non-volatile memory. This means the computer/video source can still "see" the display, even though it is not directly connected.

The 2A-130G is suitable for any ATEN KVM or video extender installation where a monitor is not required at the local site, providing a simple, cost-saving, and convenient solution for display-related boot-up problems.

• Supported Resolutions


• Compatible Splitters (Connect to Port 1): VS132A/134A/138A, VS92A/94A/98A, VS82/84/88, VS0116, VS132, VS102, VS1204T, VS1208T, VS1504, VS1508


• Compatible Extenders: CE774, CE775, CE700A, CE750, CE770, CE800B, CE350, CE370, CE250A, CE252, VE150A, VE170, VE200, VE300, VE500


• No software required - Eliminates incompatibility and installation issues; no need to confi gure


• USB Powered - No need for an external power adapter


• Superior video quality - up to 1920 x 1200@60Hz, 1366 x 768@60Hz


• EDID built-in - Stores ATEN standard EDID information in device


• ATEN standard EDID supports all popular resolutions


• Subsitutes as a monitor at the site where the computer/video source is located

Product Type: Video Cable
Product Color: Blue
Product Material: Plastic
Brand Name: ATEN
Compatibility: Aten Extenders:

• CE774
• CE775
• CE700A
• CE750
• CE770
• CE800B
• CE350
• CE370
• CE250A
• CE252
• VE150A
• VE170
• VE200
• VE300
• VE500
• CE750A
• VE170RQ
• VE170Q
• VE150AR
• VE150AR
• VE170R
• VE500RQ

• VS132A/134A/138A
• VS92A/94A/98A
• VS82/84/88
• VS0116
• VS132
• VS102
• VS1204T
• VS1208T
• VS1504
• VS1508
