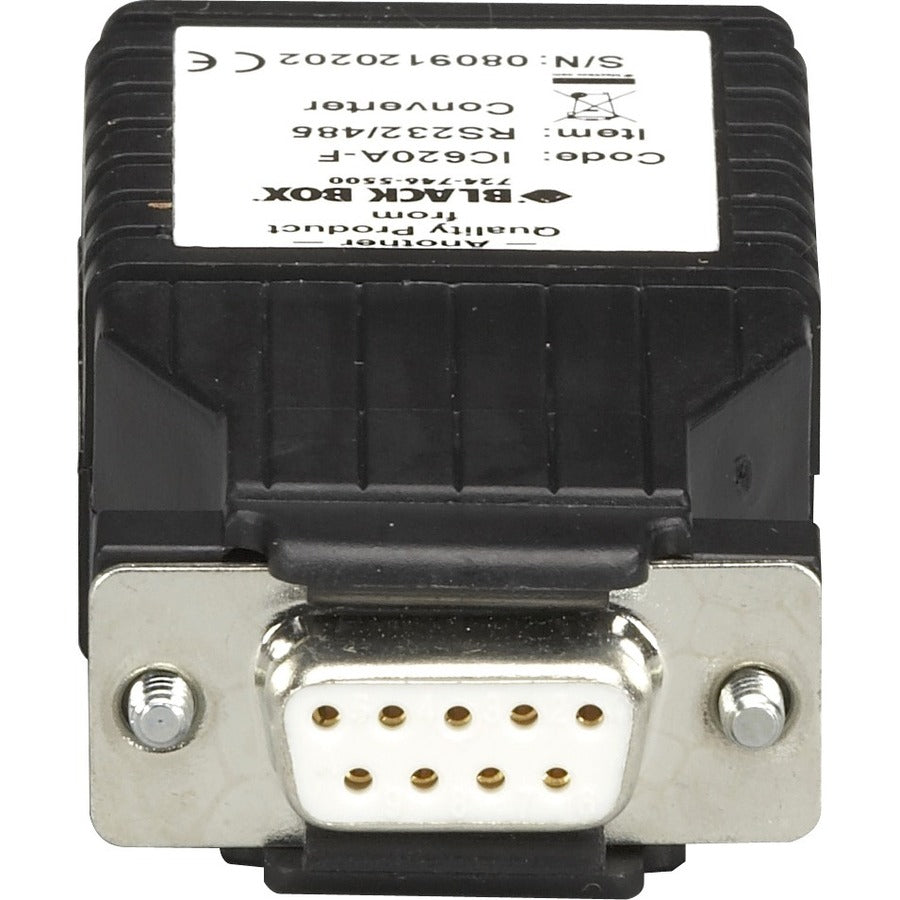

Black Box IC620A-F RS-232/485 Converter
Features one DB9 female and one terminal block connector; other connectors available (see Related Items). Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges. You can also "fine tune" impedance and "echo" characteristics for your individual application. For configuration, the converter features two internal 4-position DIP switches.
- The RS485 driver is automatically enabled during each spacing state on the RS232 side.
- Up to 32 RS485 devices can be attached to create a large multi-drop network.
- Async (data leads) only.
- Operates 2-wire half-duplex or 4-wire half- or full-duplex.
- Operates in point to point or multipoint applications.
- Transmit data up to 115 kbps or at distancesup to 4000 ft.
Product Type: Transceiver/Media Converter
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: External
Manufacturer: Black Box Corporation
Product Model: IC620A-F
Product Name: IC620A-F RS-232/485 Converter
Manufacturer Part Number: IC620A-F
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
