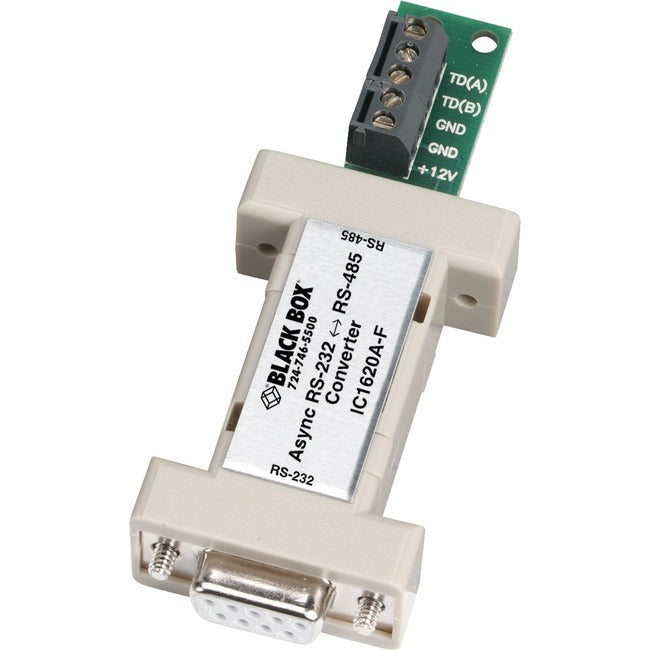

Black Box RS-232 to RS-485 Interface Converter
Operates in half-duplex over two wires. Works with or without transmit "echo." The converter's RS-232 side has a DB9 female connector configured as DCE. The converter's RS-485 side has a terminal block. Also available in four other configurations. See Similar Products. The Async RS-232 to RS-485 Interface Bidirectional Converter, DB9 Female to Terminal Block features a DB9 female connector on the RS-232 side, and a terminal block on the RS-485 side. It converts your unbalanced RS-232 signals to balanced half-duplex RS-485 signals.
- Async (data leads) only.
- Up to 32 RS485 devices can be attached to create a large multi-drop network.
- The RS485 driver is automatically enabled during each spacing state on the RS232 side.
- 2-wire operation half-duplex only.
- Operates in point to point or multipoint applications.
- Transmit data up to 115 kbps or at distancesup to 4000 ft.
Product Type: Transceiver/Media Converter
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Internal
Manufacturer: Black Box Corporation
Product Name: RS-232 to RS-485 Interface Converter
Manufacturer Part Number: IC1620A-F
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
