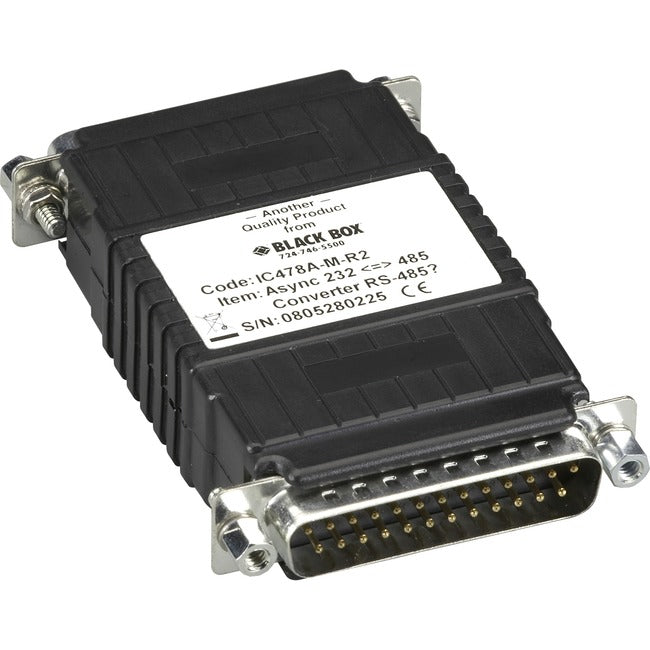

Black Box Async RS-232 to RS-485 Interface Converter, DB25 Male to DB25 Male
- Both the RS232 and the RS485 connectors are DB25 male; other connectors are available (see Related Items).
- Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges.
- You can also "fine tune" impedance and "echo" characteristics for your individual application.
- For configuration, the converter has a DTE/DCE slide switch and an internal 8-position DIP switch.
- Built-In Surge Protection.
- 50 drops in a multi-point environment.
- Selectable High-Low Impedance.
- Carrier may be Continuous or "Controlled by RTS".
- Selectable RTS-CTS Delay.
- Data Rates to 115.2 kbps.
- Operates Asynchronously, Point-to-Point or Multipoint, over 2 or 4 Wires.
Product Type: Data Transfer Adapter
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Async RS-232 to RS-485 Interface Converter, DB25 Male to DB25 Male
Manufacturer Part Number: IC478A-M-R2
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
