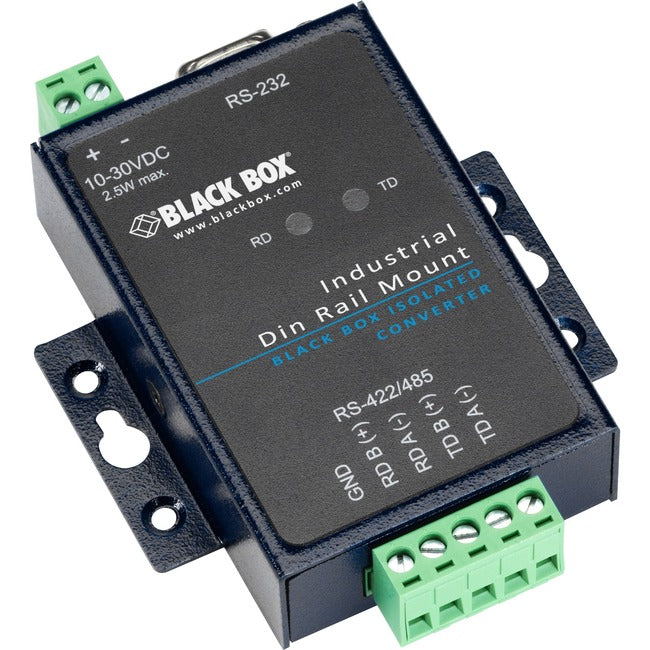

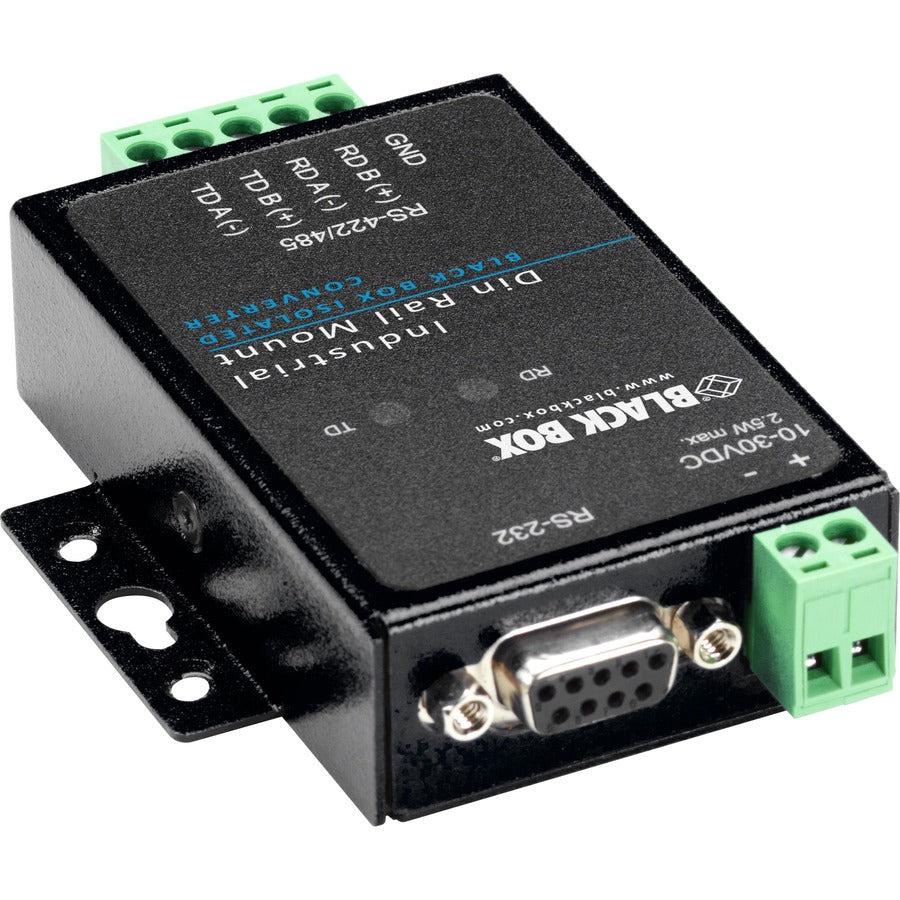

Black Box Industrial RS-232 to RS-485/422 Converter
- UL® approved.
- 8-kV contact; 15-kV air.
- Built-in switchable bias and termination.
- Converts unbalanced half- or full-duplex RS-232 signals to balanced full-duplex RS-422 or 2-wire half- or 4-wire full-duplex RS-485.
- Rugged IP30-rated metal case.
- Supports a wide range of data rates.
- Includes mounting ears for attaching to a panel.
- It can also be conveniently mounted on a DIN rail with an optional clip (DRCLIP).
- Built-in switchable bias and termination
- Rugged IP30-rated metal case
- 8-kV contact; 15-kV air ESD protection
- Offers 2-kV isolation with ESD protection
- Designed to protect expensive control equipment
- Features 10-30-VDC operation and withstands temperature extremes of -40 to +176° F (-40 to +80° C)
- Designed and tested to meet heavy industrial EMC standards and temperature extremes
Product Type: Transceiver/Media Converter
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Rail-mountable
Manufacturer: Black Box Corporation
Product Name: Industrial RS-232 to RS-485/422 Converter
Manufacturer Part Number: ICD400A
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- Industrial RS-232 to RS-485/422 Converter
- 1 x Printed Quick Start Guide
- 10-to 30-VDC Power Connector
Limited Warranty: 1 Year
