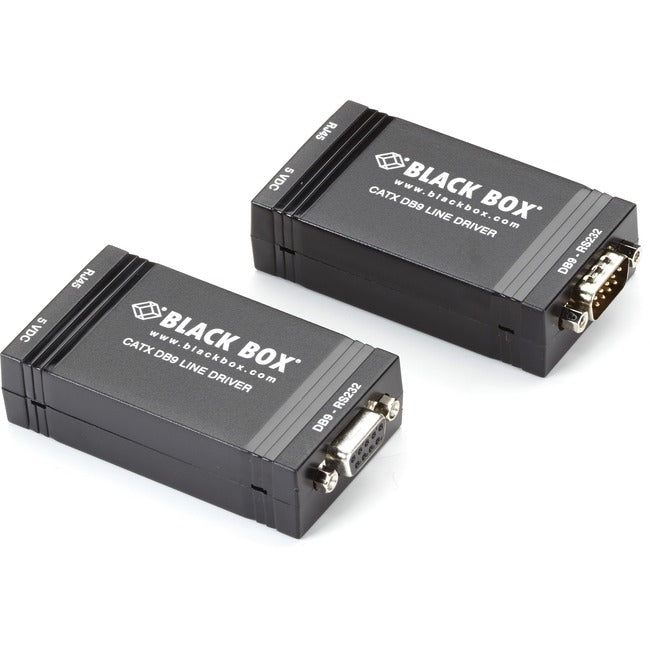

Black Box Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
- Use long-distance CATx links to communicate with serial devices.
- Control presentations remotely.
- Transfer data between computers.
- Ideal for a wide variety of applications.
- Optical isolated.
- Maximum speed of 250 K.
- Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration.
These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.
- Plug-and-play! The driver is a pure hardware solution providing real-time data transfer with no software conflicts.
- Run data and handshake signals over CATx cable and break the RS-232 distance limitation.
- Maximum speed of 250 K.
- Supports distances up to 4000 feet.
- Has 1000-VDC isolation between CATx and RS-232 interfaces.
- Optical isolated.
Product Type: Serial Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: United States
Certifications & Standards:
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
Manufacturer Part Number: ME890A-R2
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- 1 x Local Unit
- 1 x Remote Unit
- 2 x 120 V Power Supplies
Limited Warranty: 1 Year
Additional Information:
- Cable Requirement CATx

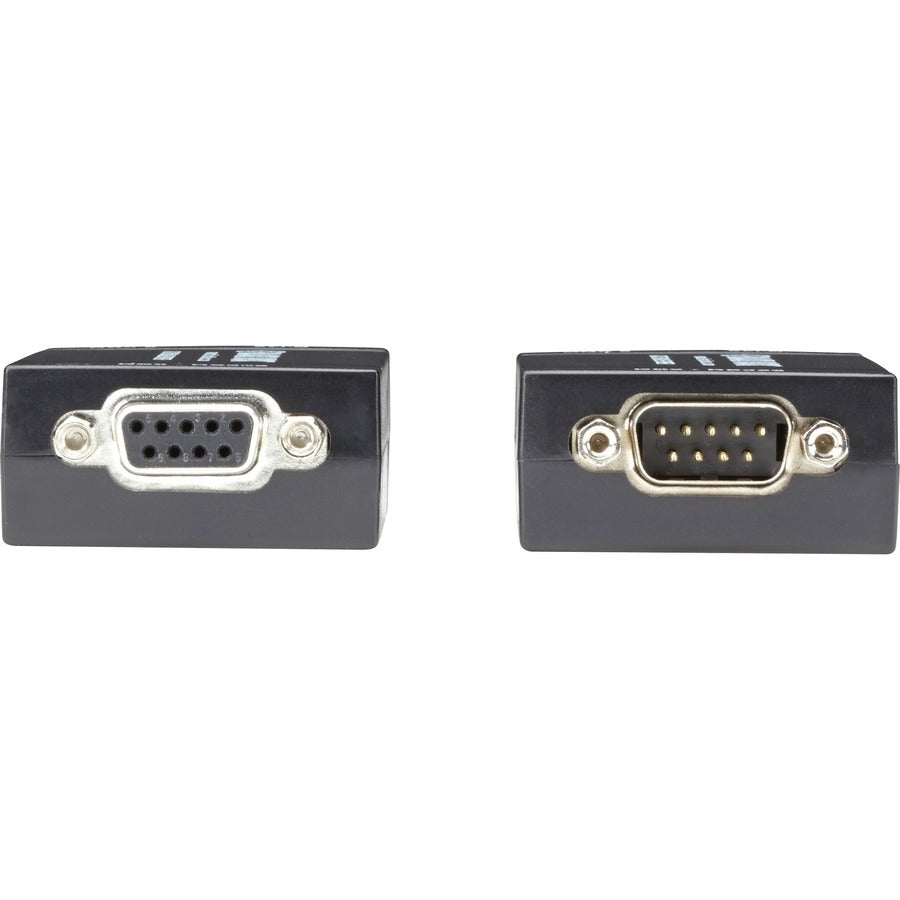

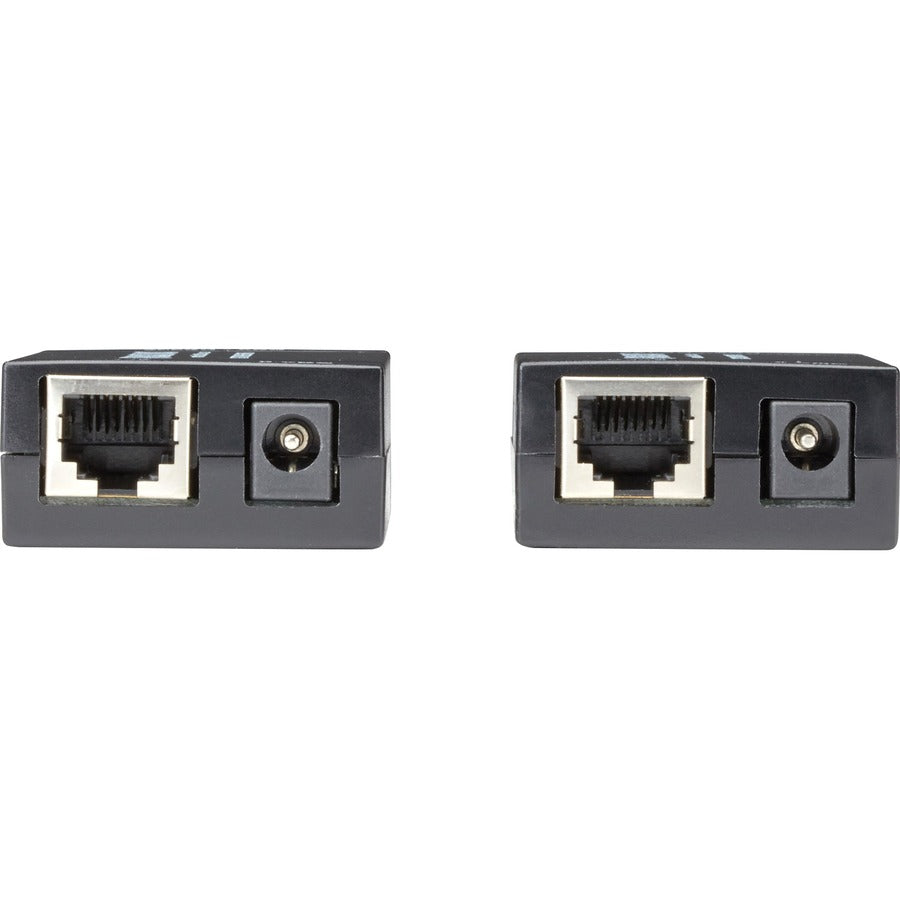

- Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack;
- Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack
- Distance 4000 ft. (1219.2 m) maximum
- Interface RS-232
- Operation Asynchronous, full-duplex
- Power Input: 100-240 VAC;
- Output: 12-VDC power adapter
- Speed 250 kbps maximum
