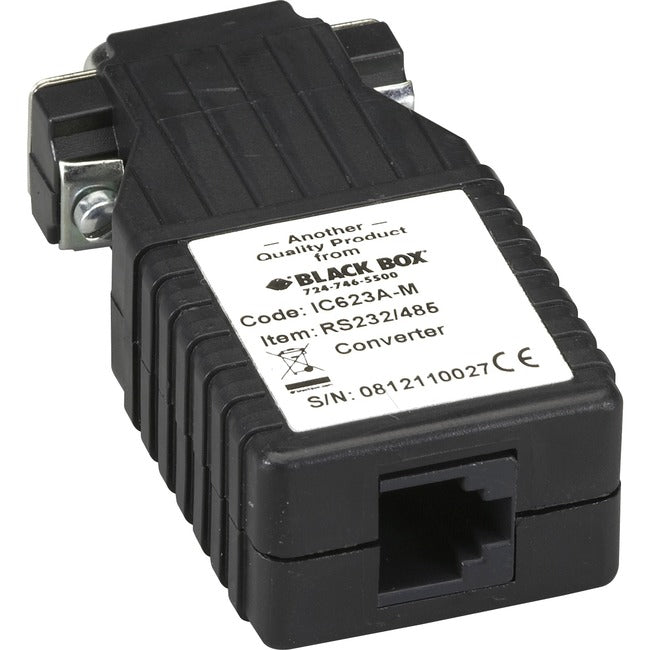

Black Box Async RS-232 to RS-485 Interface Converter, DB9 Male to RJ-11
Convert async RS232 to RS485 at speeds up to 115.2 kbps with distances up to 4000 ft over CATx cables. These devices are great for connecting RS232 devices into an existing RS485 environment in factory automation, building automation, and process automation.
- For configuration, the converter features two internal 4-position DIP switches.
- You can also "fine tune" impedance and "echo" characteristics for your individual application.
- Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges.
- The RS-232 connector is DB9; the RS-485 connector is RJ-11; other connectors are available (see Related Items).
- The RS-485 driver is automatically enabled during each spacing state on the RS-232 side.
- Up to (32) RS-485 devices can be attached to create a large multi-drop network.
- Async (data leads) only.
- Operates 2-wire half-duplex or 4-wire half- or full-duplex.
- Operates in point-to-point or multipoint applications.
- Transmit data up to 115 kbps or at distancesup to 4000 ft.
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: External
Manufacturer: Black Box Corporation
Product Name: Async RS-232 to RS-485 Interface Converter, DB9 Male to RJ-11
Manufacturer Part Number: IC623A-M
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
