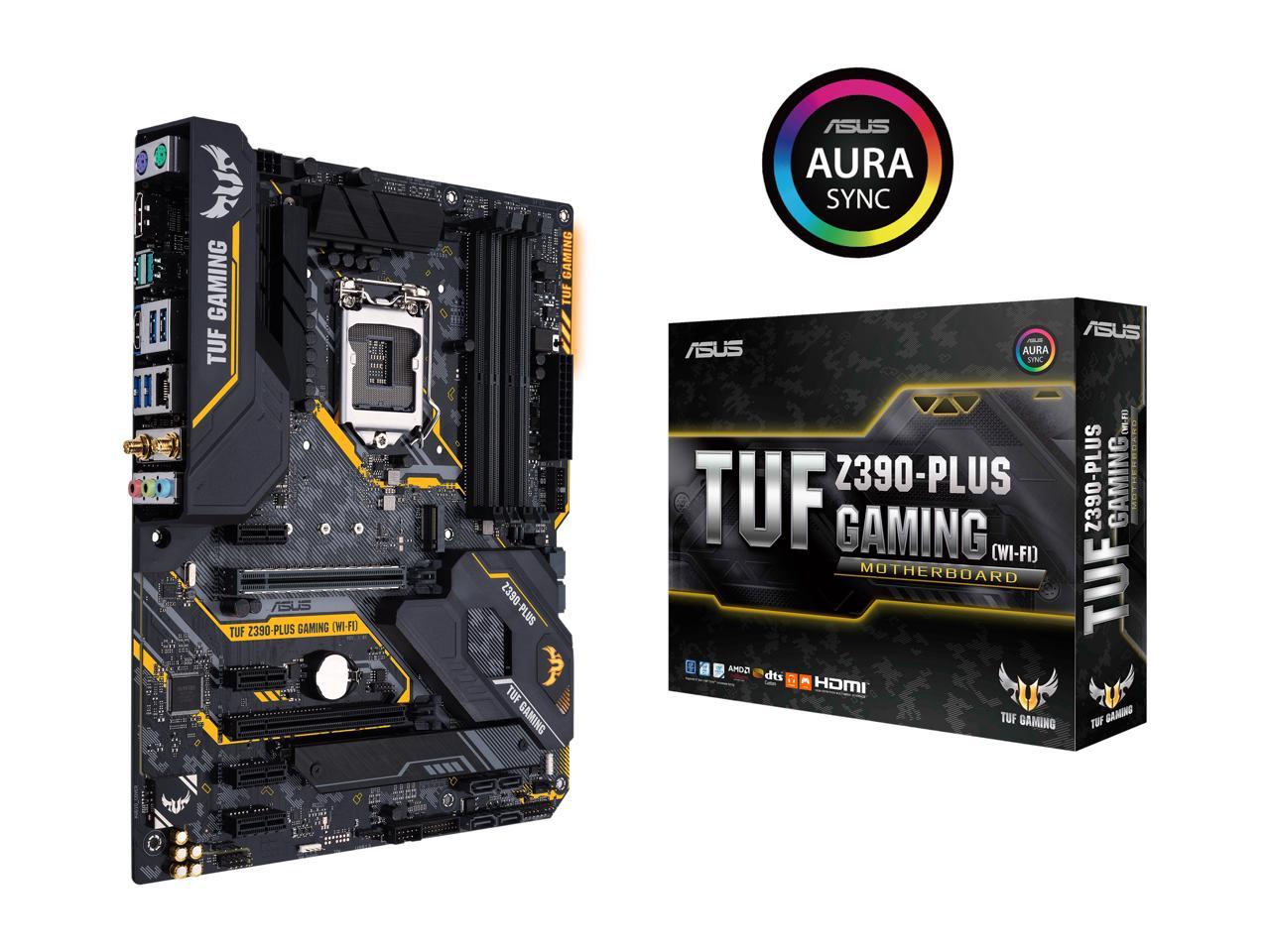

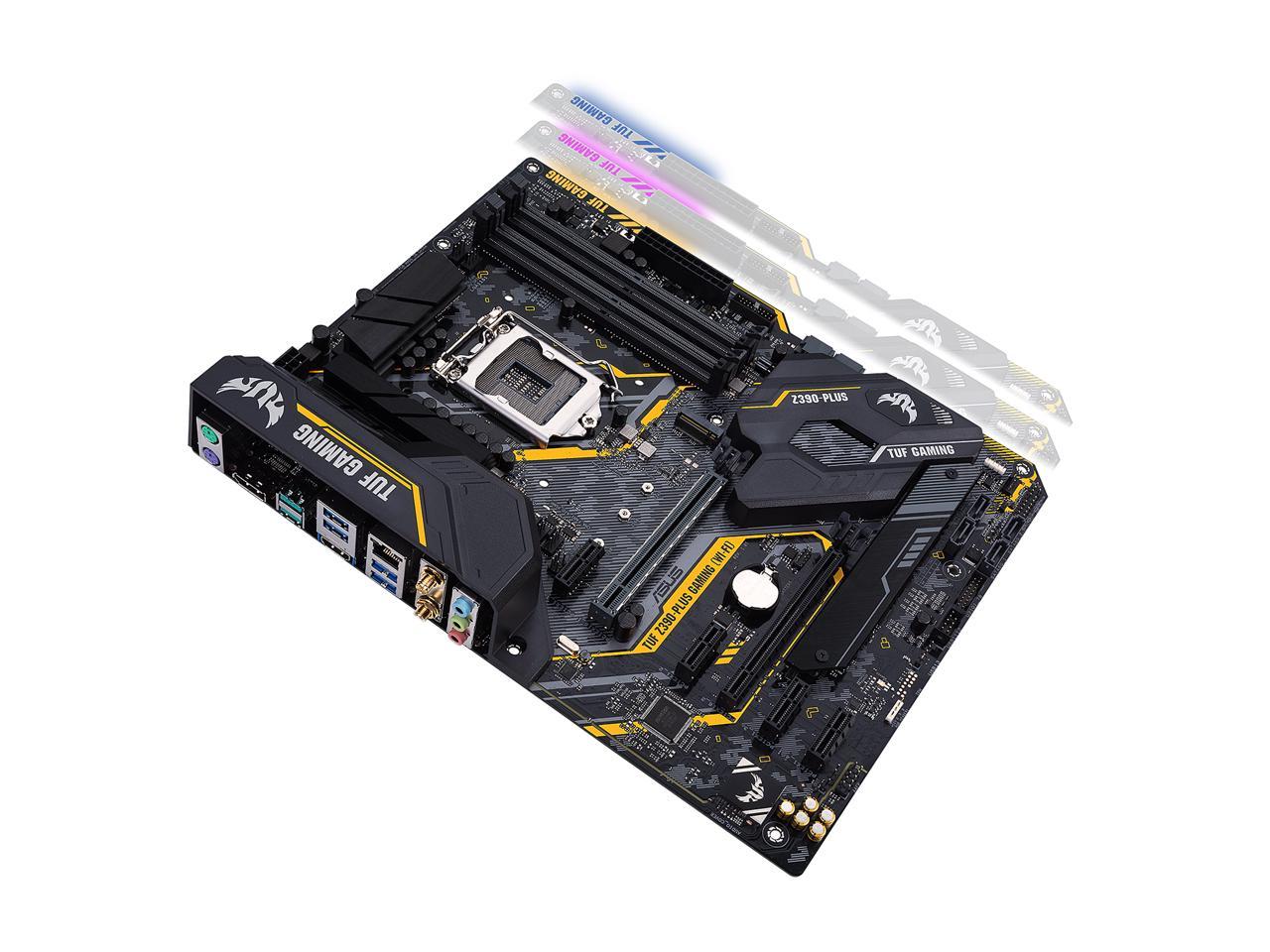

Name: Asus Tuf Z390-Plus Gaming (Wi-Fi) Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard
Brand: ASUS
SKU: TUF Z390-Plus Gaming (Wi-Fi)
Price: 412.00 CAD
Availability: OutOfStock

Asus Tuf Z390-Plus Gaming (Wi-Fi) Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, Gigabit LAN, USB 3.2 Gen2
Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Gamer's Guardian with SafeSlot and FanXpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
8-channel HD Gaming Audio with TUF Gaming Headphone featuring Realtek S1200A high definition audio codec driven by Japanese capacitors for warm, immersive sound
ASUS OptiMem II improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies

**Model**
Brand	ASUS
Series	TUF
Model	Z390-Plus Gaming (Wi-Fi)

**Supported CPU**

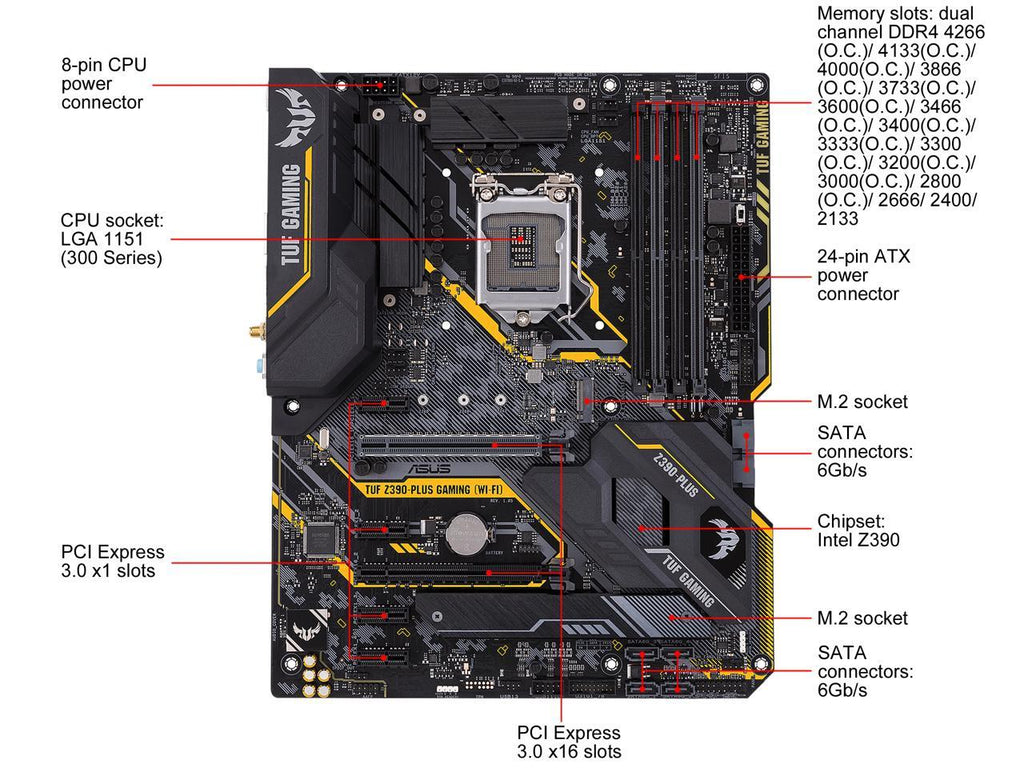

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Supports 9th / 8th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors * * Not backward compatible with older generation of LGA 1151 CPUs. * Refer to www.asus.com for Intel CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z390

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133* * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	2 x PCI Express 3.0 x16* * For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
PCI Express x1	4 x PCIe 3.0 x1* * The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)** * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used. ** When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels	8 Channels* * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

**Onboard LAN**
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps
Wireless LAN	Intel Wireless-AC 9560 Wi-Fi802.11a/b/g/n/ac
Bluetooth	Bluetooth 5.0

**Rear Panel Ports**

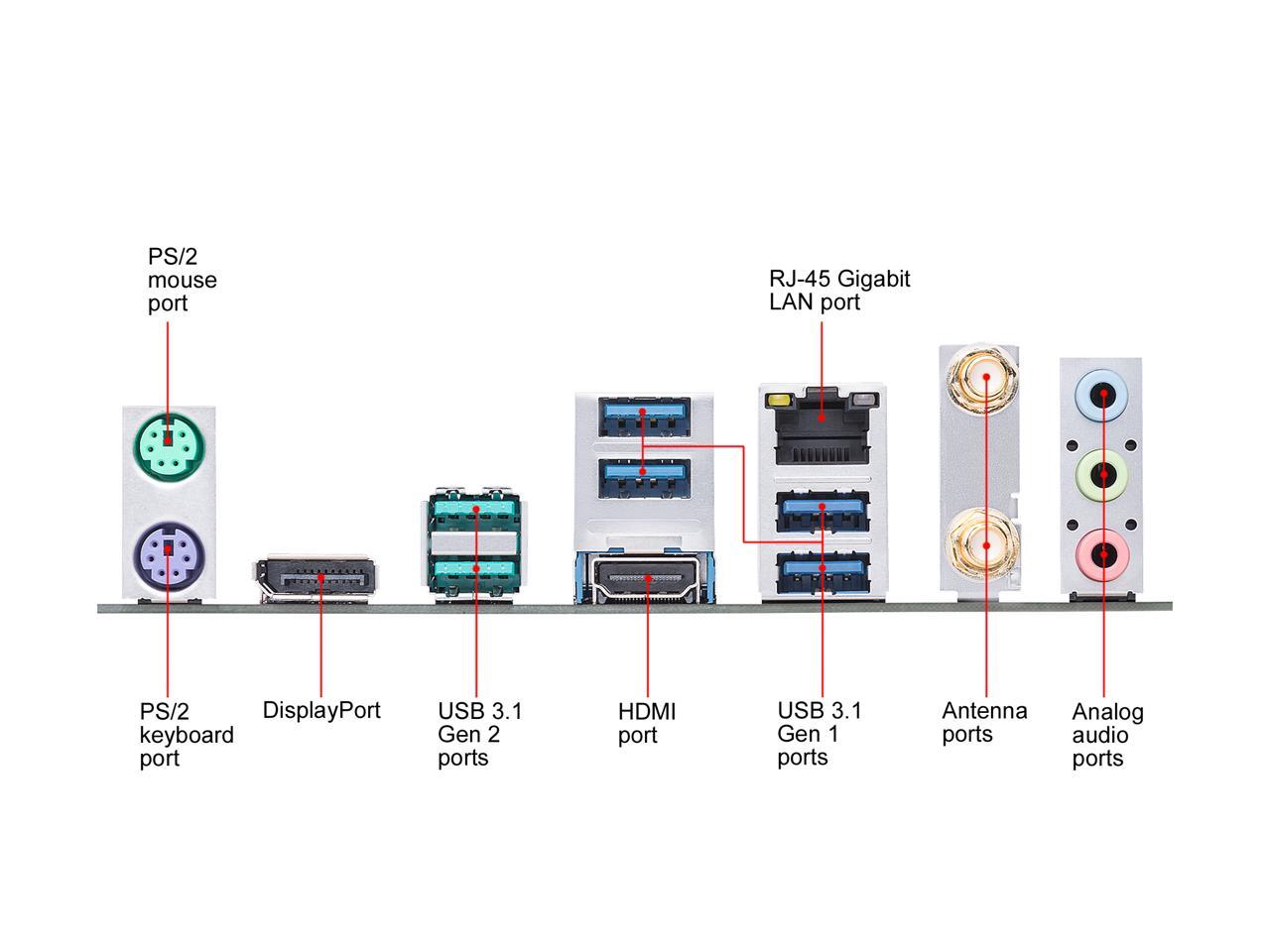

Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 2 x Wi-Fi antenna port(s) 3 x 8-channel Audio I/O

**Internal I/O Connectors**
Onboard USB	2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Header(s) 1 x CPU Fan connector(s) (4-pin) 1 x CPU OPT Fan connector(s) (4-pin) 2 x Chassis Fan connector(s) (4-pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Clear CMOS jumper(s) 1 x System panel connector

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector

**Features**
Features	Multi-GPU Support: Supports AMD CrossFireX Technology Special Features: Fan Xpert4 - Advanced fan and liquid controls for ultimate cooling and quietness ASUS TUF PROTECTION - ASUS DIGI+ VRM: Precision control for stable power - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! ASUS Optimem II: - Optimem (Improved DDR4 stability) ASUS EPU: - EPU TUF ENGINE! Power Design: - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA: - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - File Transfer - ASUS C.P.R. (CPU Parameter Recall) ASUS Quiet Thermal Solution: - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) MemOK! II - Enhance memory compatibility. More smart and convenient. Keep high performance (Shorten the PC starting time) Q-Installer - Auto download driver and software. Friendly for first PC builder BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Operating System: Windows 10 64-bit Management Solution: WOL by PME, PXE

**Packaging**

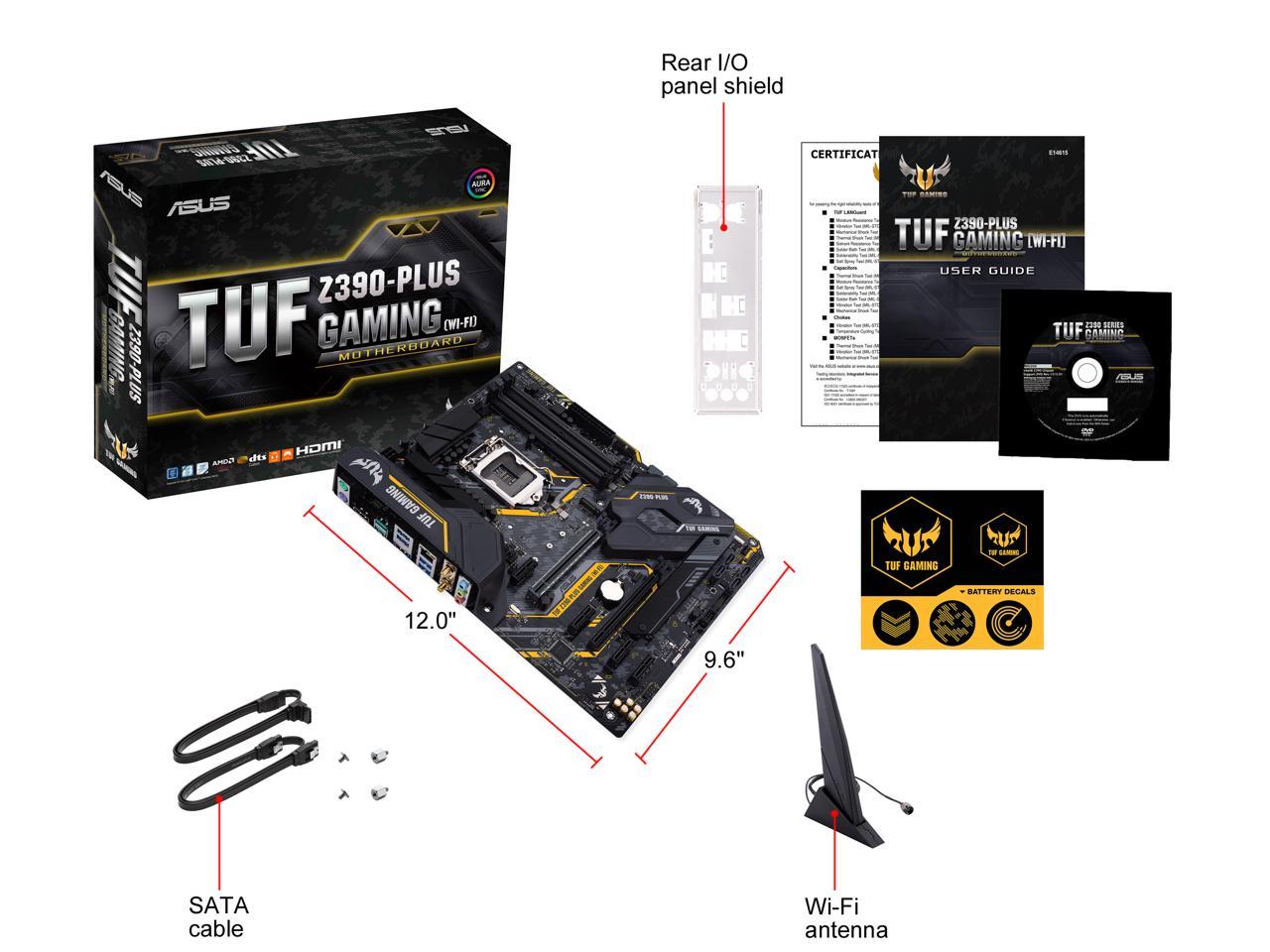

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x SCD (by region)

General Information

UPC	192876126202
