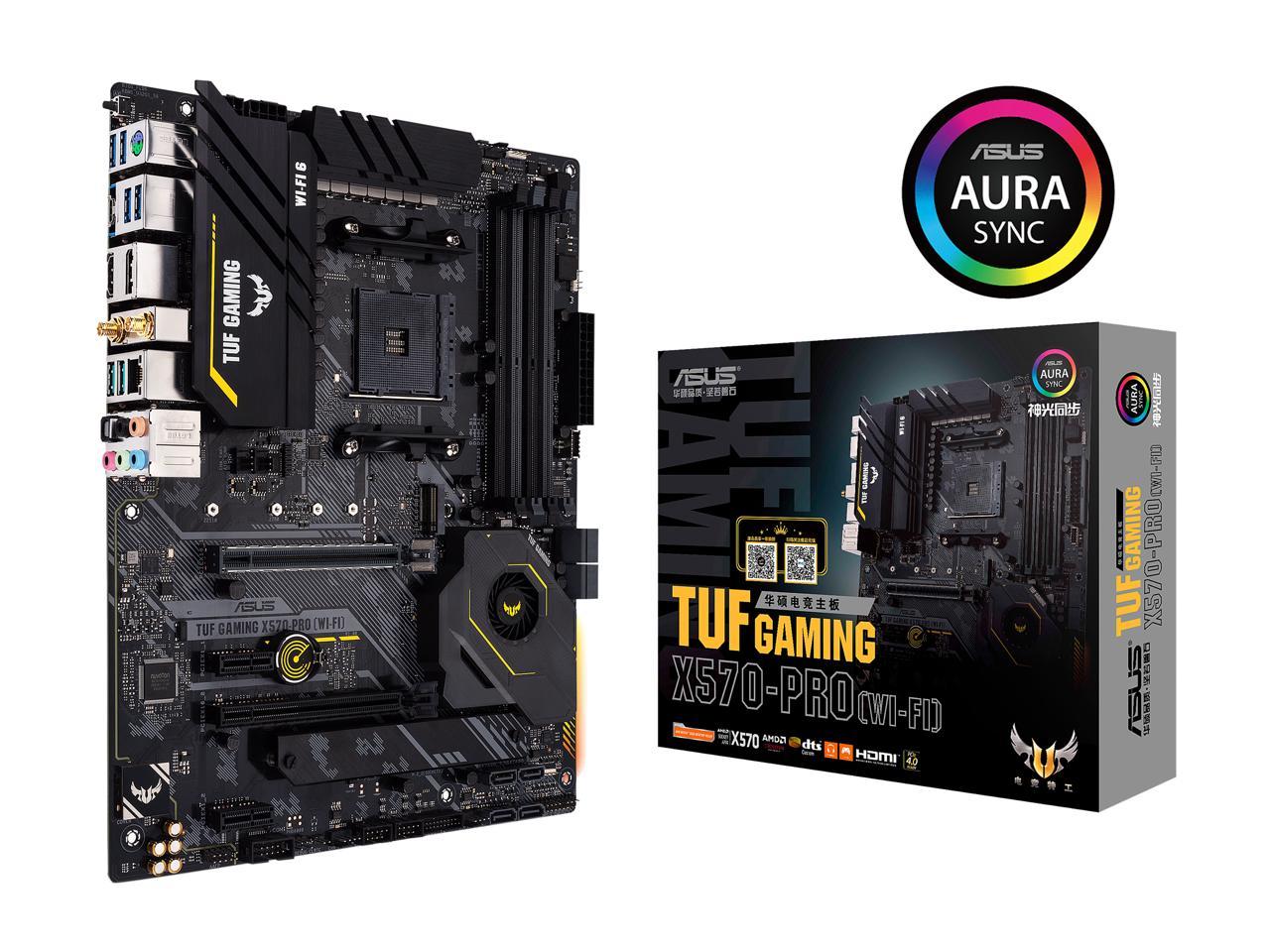

Asus Tuf Gaming X570-Pro (Wifi 6) Amd Am4 (3Rd Gen Ryzen Atx Gaming Motherboard)

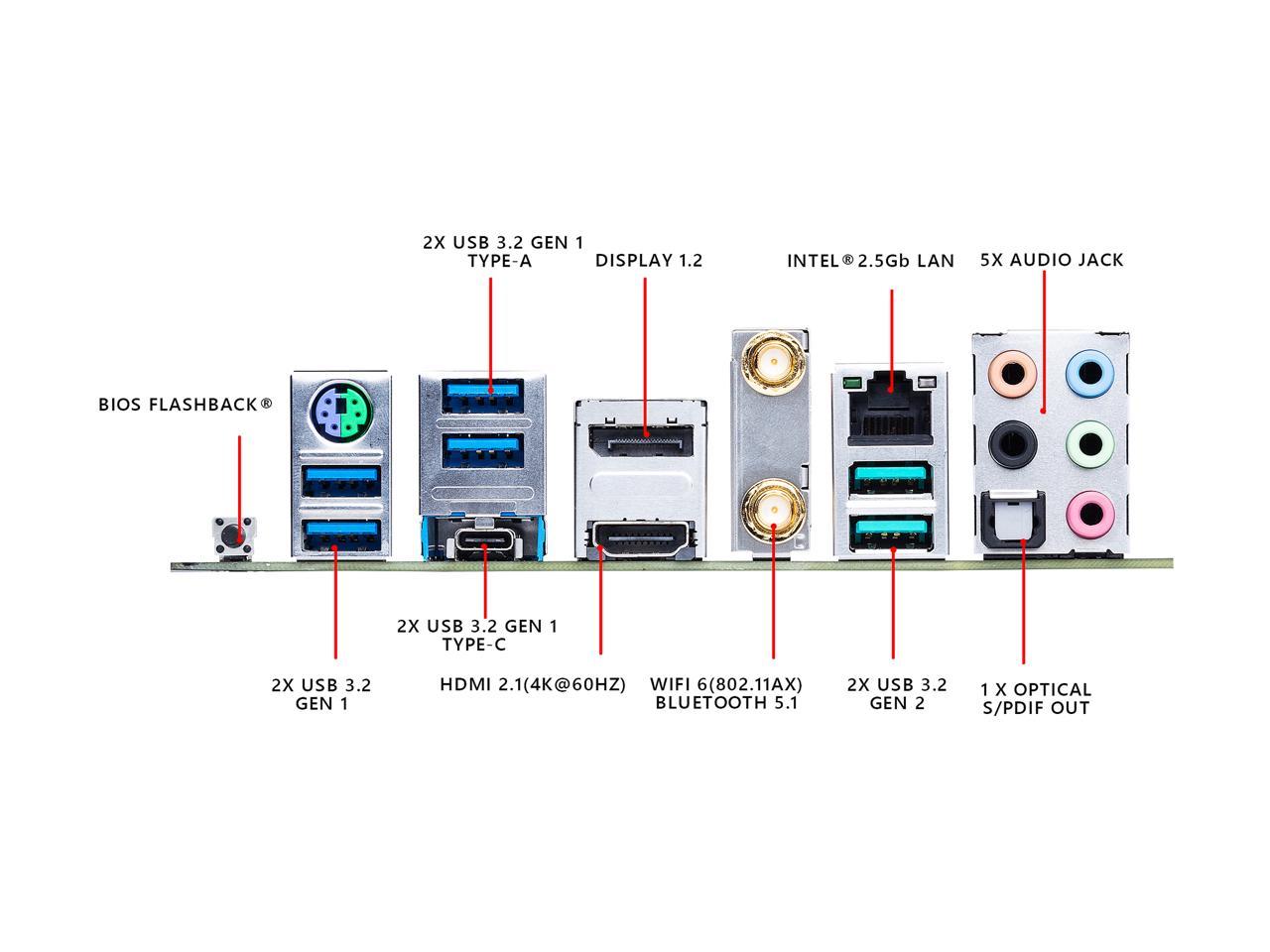

ASUS TUF Gaming X570-PRO (Wi-Fi 6) AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard (PCIe 4.0, 2.5 Gb LAN, BIOS Flashback, HDMI 2.1, USB 3.2 Gen 2, Addressable Gen 2 RGB Header and Aura Sync)

• AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
• Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
• Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
• Gaming Networking: Exclusive onboard 2.5G Intel® LAN, Intel® WiFi 6, Bluetooth 5.1, TUF LANGuard and TurboLAN technology
• Realtek S1200A Codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line-out and 103 dB SNR for line-in
• Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
• TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

DURABLE. STABLE. RELIABLE.

TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Pro (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.

DRIVER & MOSFET

Dr. MOS

The TUF Gaming X570-Pro (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-LAYER PCB

6-LAYER PCB DESIGN

Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.

POWER CONNECTOR

PROCOOL SOCKETS

ENHANCED EATX 4-PIN & 8-PIN SOCKETS

• Solid and more durable
• Prevent hotspots and connector failure

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

TUF COMPONENTS

CONTROLLER

DIGI+ VRM

The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

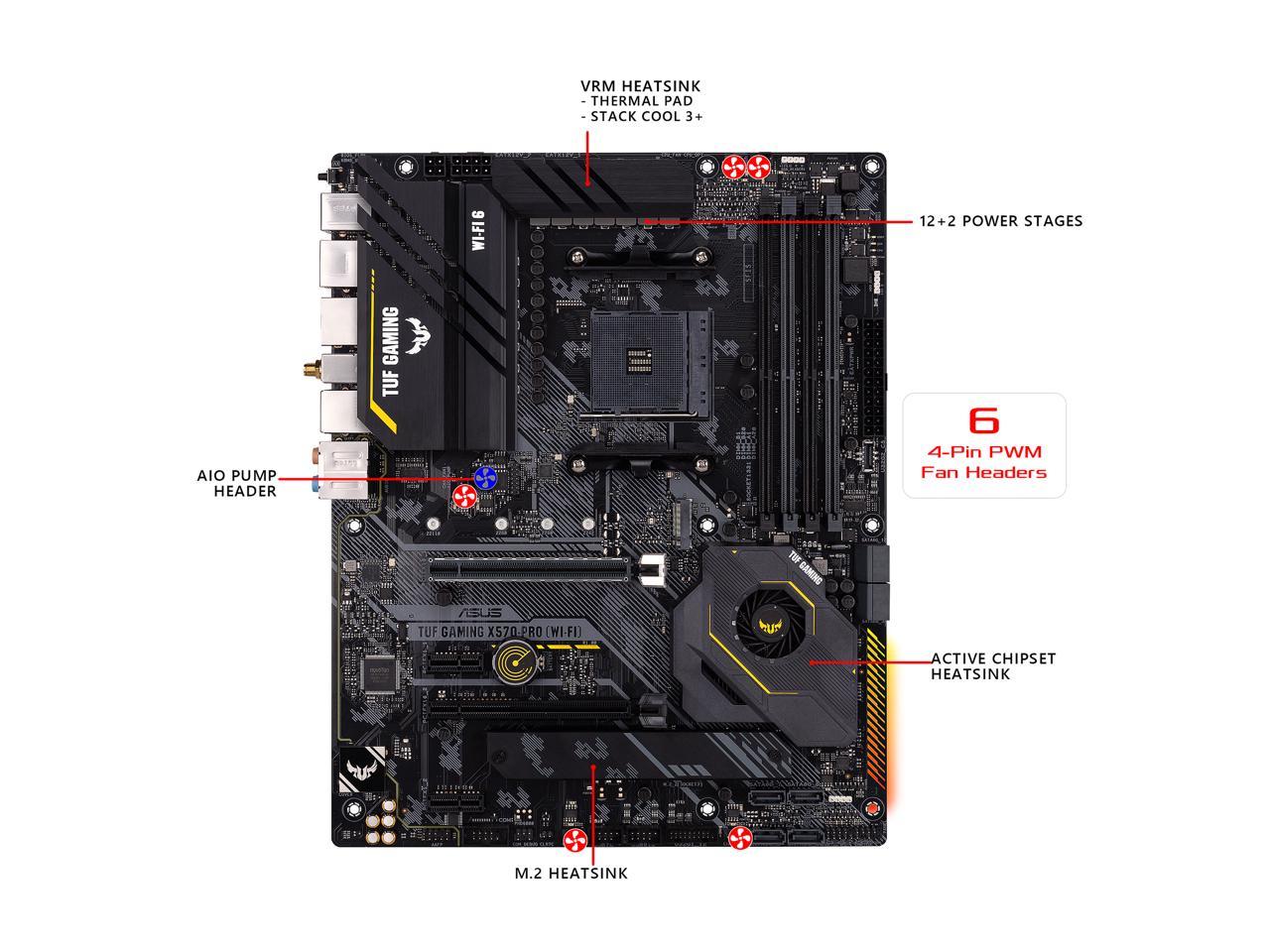

COOLER BY DESIGN

1. VRM HEATSINK

Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.

    THERMAL PAD

High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

    STACK COOL 3+

2oz-copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.

2. ACTIVE CHIPSET HEATSINK

A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

3. M.2 HEATSINK

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

ACTIVE CHIPSET HEATSINK SOLUTION

PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Pro (Wi-Fi) features an actively cooled heatsink to prevent throttling during sustained transfers.

CUSTOM DELTA SUPERFLO FAN

The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.


AIR DUCT

A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

FINNED HEATSINK

The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.

* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.

COMPREHENSIVE FAN CONTROLS

TUF Gaming X570-Pro (Wi-Fi) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.

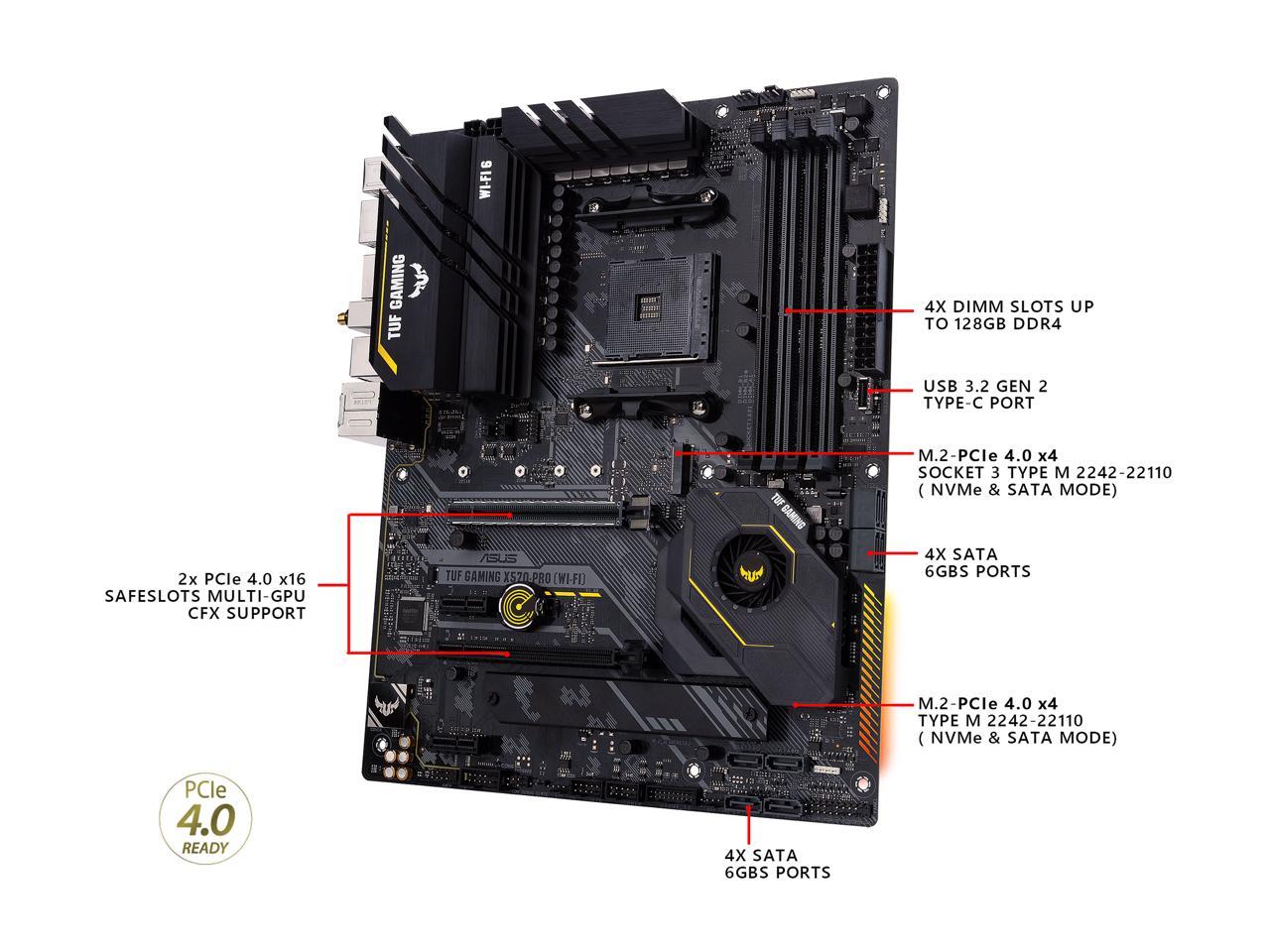

DUAL PCIE 4.0 M.2

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

Badwidth [MB/s]

PCE 4.0x4
8066   8066

PCE 3.0x4
4032 4032

*The actual transmission speed will be lower than the theoretical maximum speed.

ASUS OPTIMEM

PROPRIETARY MEMORY DESIGN

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

ASUS OptiMem advantage:

ASUS OptiMem
53.12 V*pS 53.12 V*pS

Reference Design
72.51 V*pS 72.51 V*pS



ASUS OptiMem benefits:

• Improved memory stability and compatibility
• Allows lower memory latencies at equivalent voltages
• Improved memory frequency margin

Tested by using Synopsys HSPICE simulation software

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

TUF GAMING ALLIANCE

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.

SAFESLOT

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ESD GUARDS

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.

TUF LANGUARD

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

DRAM OVERVOLTAGE PROTECTION

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

STAINLESS STEEL BACK I/O

TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3X longer lifespan than traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.

ARMOURY CRATE

Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.

IMMERSIVE GAMING

TUF Gaming X570-Pro (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Intel® WiFi 6 AX200

The Intel® WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

* Actual speed varies, and depends on networking conditions.

INTEL® 2.5 GB ETHERNET

Intel Ethernet Connection I225-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

TURBO LAN

NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION

Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!

1. Real-time speed monitor

2. Grouping your own favorite list

3. Set the highest priority with one click

4. Set priority to speed up your application

AI NOISE-CANCELING MICROPHONE

AI Noise-Canceling Microphone software is exclusively featured on ASUS motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.

*Testing configuration: CPU: AMD Ryzen 5 3600x; Motherboard: ROG STRIX B550-I GAMING; Graphics card: NVIDIA RTX 2060-O6G; DRAM: Hynix 2666 16 GB; Power: Seasonic 430 W; HDD: Seagate M.2 NVME 2 TB; Cooling: Enermax T.B.APOLLISH; Voice Communication App: Discord (In-app noise canceling effects disabled) ; Background noise: Keyboard typing, mouse clicking, people talking, and music playing
*Actual performance varies by configuration

3DMARK - FPS (2560X1440)

HEAR THE DIFFERENCE

EXCLUSIVE CODEC

REALTEK S1200A CODEC

1. TUF GAMING AUDIO COVER
Effective shielding preserves the integrity of audio signals to ensure best quality.

2. AUDIO ENJOYMENT
Premium Japanese audio capacitors provide warm, natural, and immersive sound.

3. EXCLUSIVE S1200A CODEC
Delivers an expansive soundstage and authorative dynamics.

4. AUDIO SHIELDING
Separates analog/digital signal domains, significantly reducing multi-lateral interference.

SIGNAL-TO-NOISE RATIO

SPEC COMPARISON

TUF Gaming X570 series motherboards utilize a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine audio quality.

AUDIO EFFECT

DTS CUSTOM FOR GAMING HEADSETS

Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

OUTSHINE THE COMPETITION

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

ADDRESSABLE GEN 2 RGB HEADER

TUF Gaming X570-Pro (Wi-Fi)'s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.

THE POWER OF AMD

AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN™ / 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS PROCESSORS

The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7 nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10 Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
