Description
- BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
- AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
- Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A / Type-C
- Gaming Networking: Exclusive Realtek L8200A Gigabit Ethernet, Intel 2x2 802.11 ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.
- AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
- Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
- Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
- Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
- Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
- Realtek S1200A Codec: Features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine audio quality
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
- TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
DURABLE. STABLE. RELIABLE.

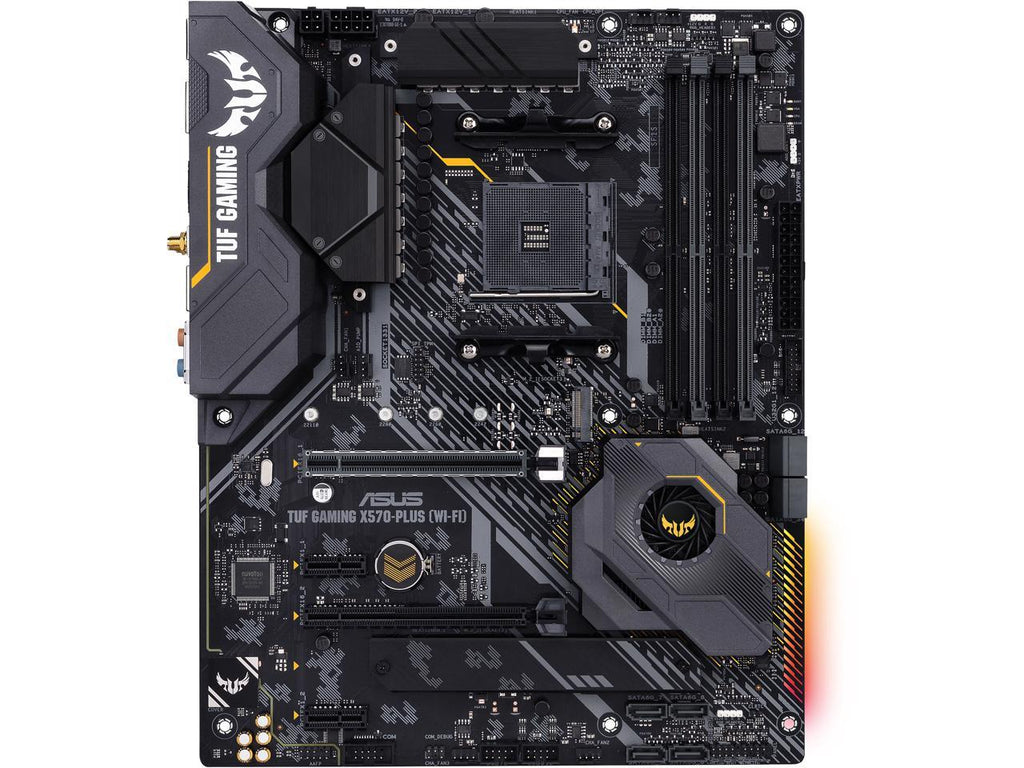

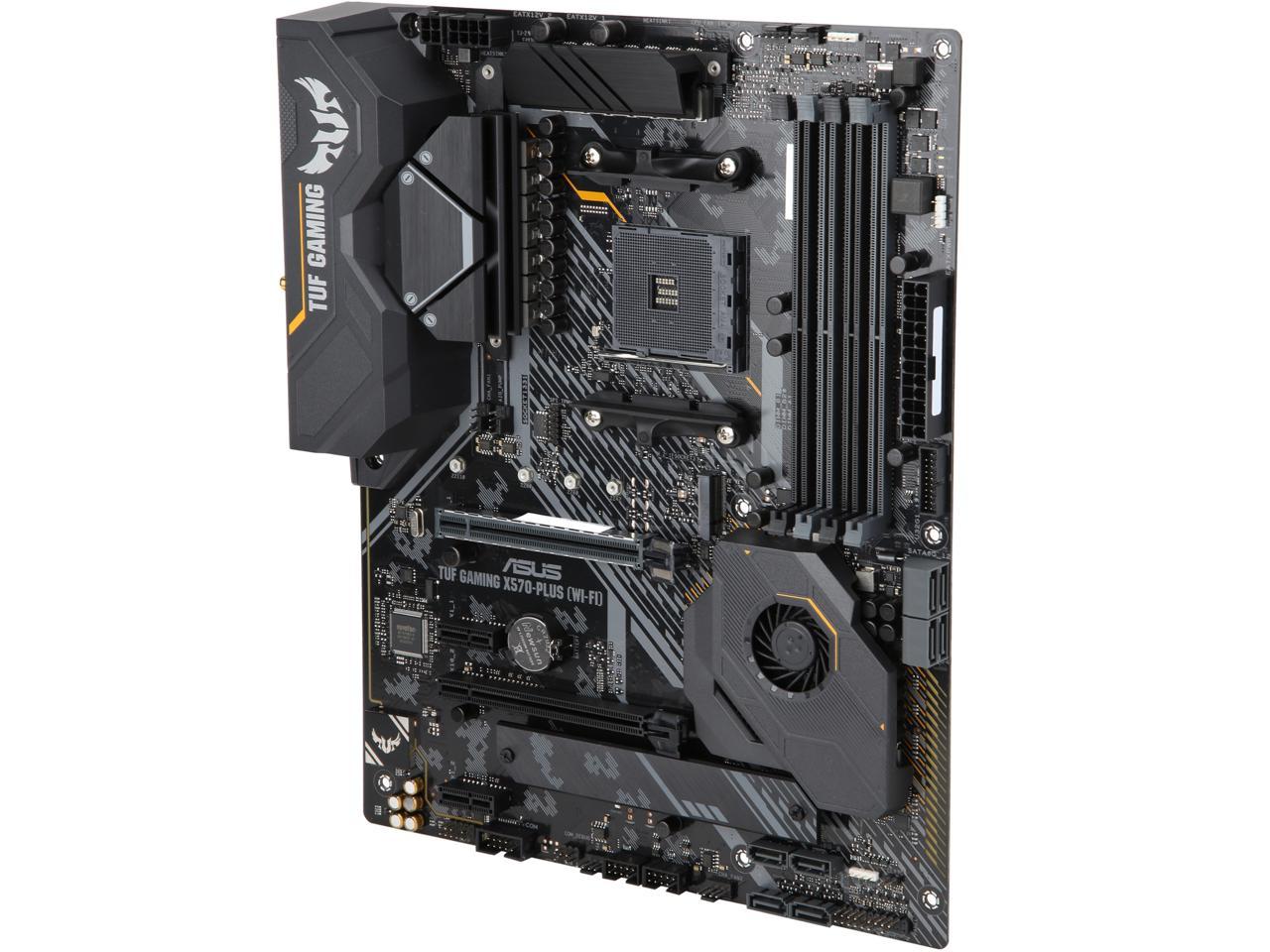

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
-

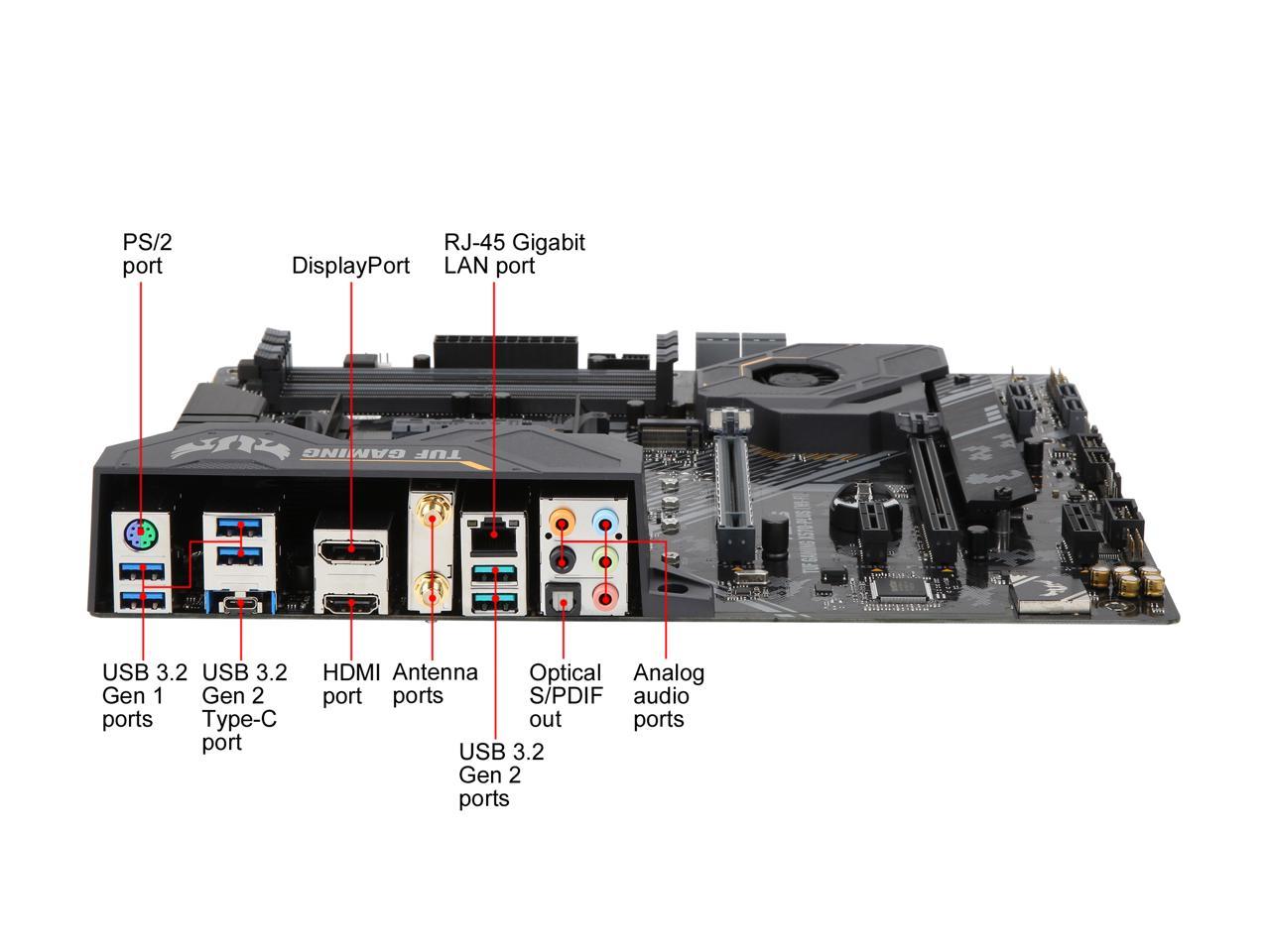

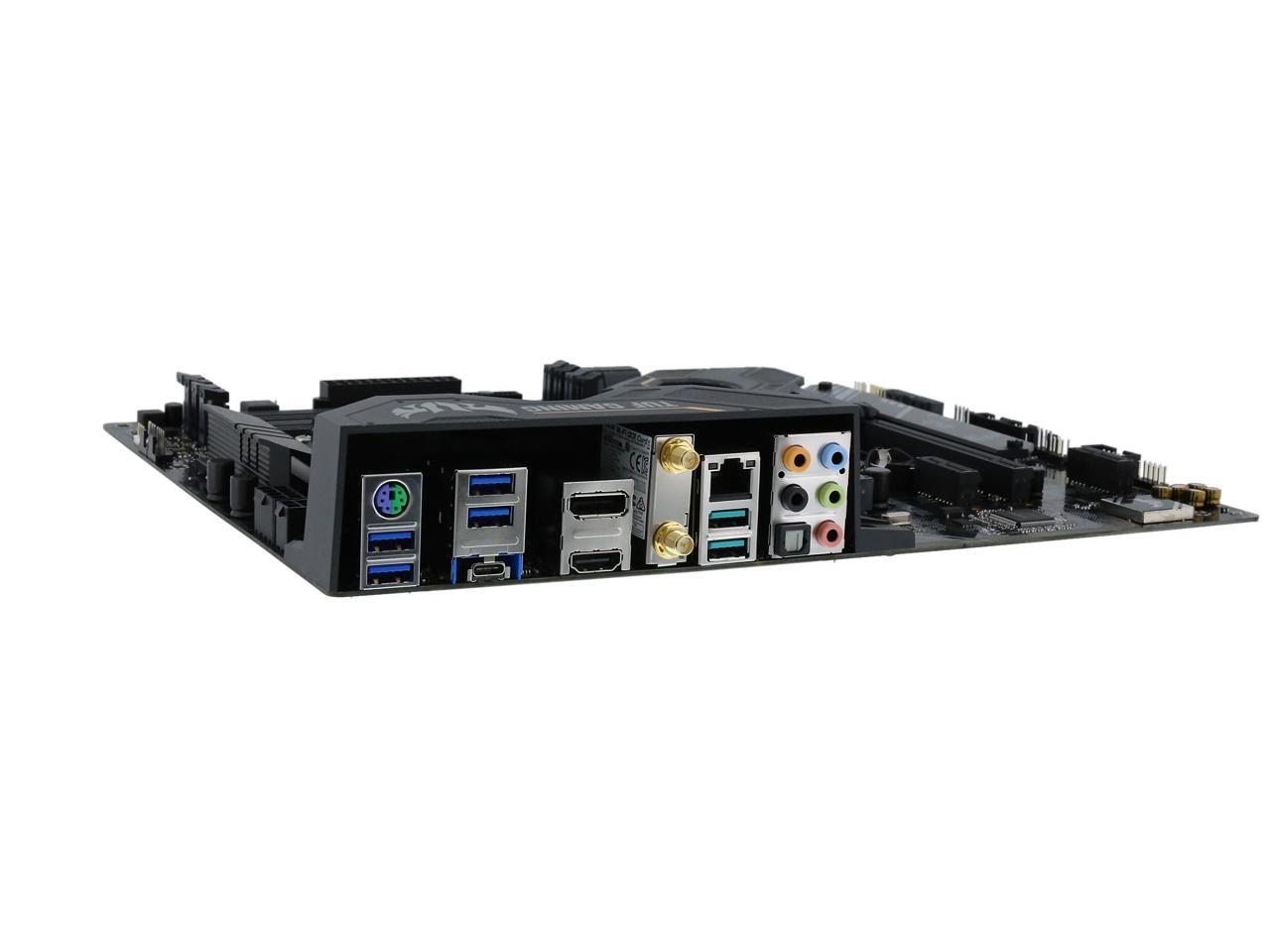

TUF Gaming Armor
-
USB 3.2 Gen 2 Type-C™
-
USB 3.2 Gen 1
-
Display Port
-
HDMI Port
-
Intel® Wi-Fi & BT 5.0
-
USB 3.2 Gen 2
-
Realtek® L8200A LAN
Turbo LAN Utility -
Audio
-
2 x PCIe 4.0 X16 Slots
・ 2-Way CrossFireX™
・ ASUS SafeSlot -
Realtek® S1200A
Exclusive DTS Custom for
GAMING Headsets
・TUF Gaming Audio Cover
・Audio Shielding
・Dedicated audio PCB layers
・Premium Japanese audio capacitors -

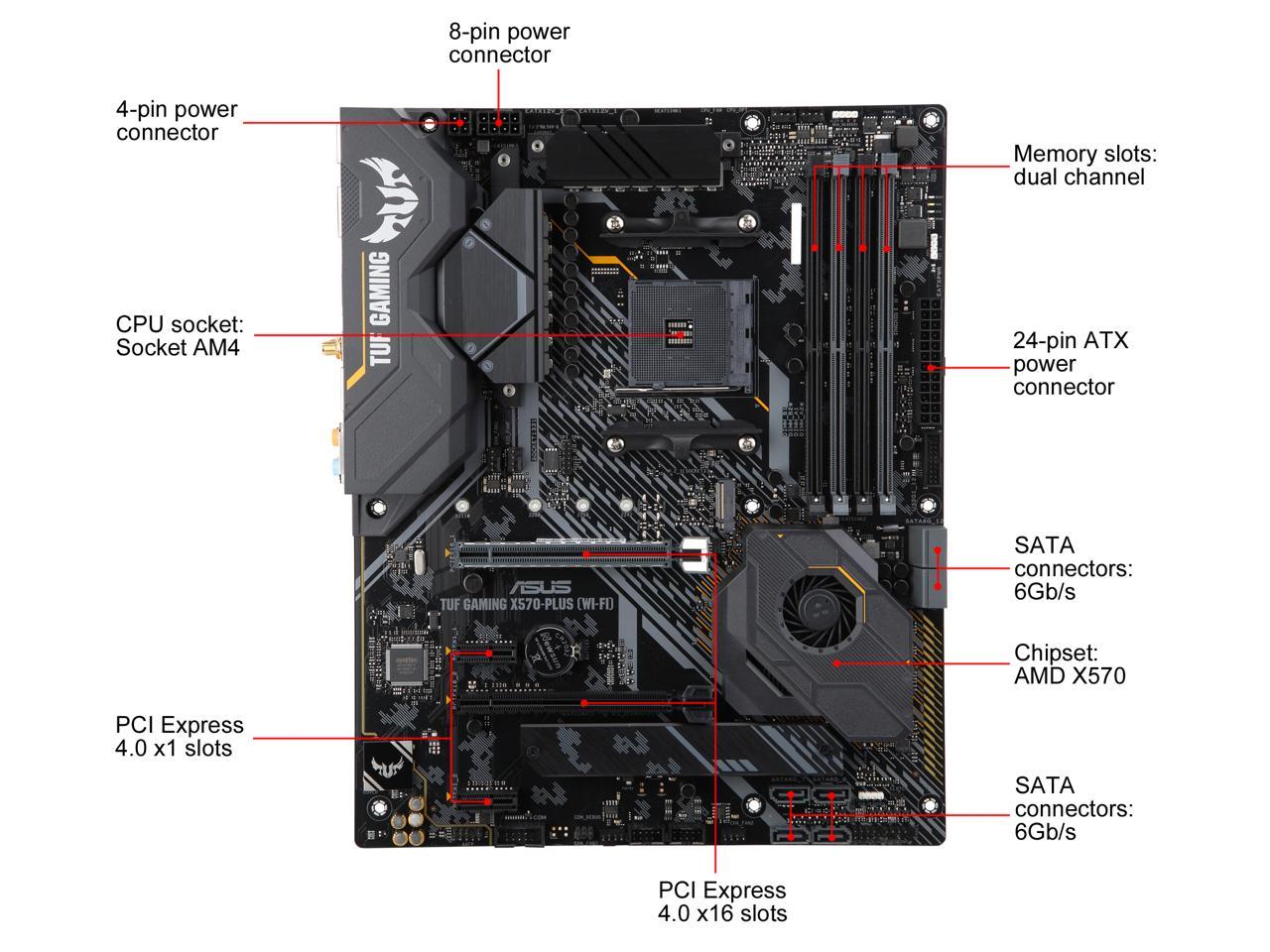

ProCool Connector
-
Dr. MOS
-
DDR4
-
Addressable Gen 2 RGB header
-
AMD AM4 Socket
-
2 x Front USB 3.2 Gen 2 ports
-
2 x M.2 x4 PCIe Gen 4 & SATA mode
-
8 x SATA 3.0 ports
-
AMD X570 Chipset
-
Aura Sync
-
2 x RGB headers
-
4 x Front USB 2.0 ports
POWER DESIGN
6-LAYER PCB DESIGN
The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
PROCOOL SOCKETS
ENHANCED EATX 4-PIN & 8-PIN SOCKETS
- Solid and more durable
- Prevent hotspots and connector failure
TUF CHOKES
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF CAPACITORS
+20% temperature tolerance and 5X-longer lifespan.
COOLER BY DESIGN
1. VRM HEATSINK
Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.
THERMAL PAD
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
2. ACTIVE CHIPSET HEATSINK
A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.
3. M.2 HEATSINK
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
CUSTOM DELTA SUPERFLO FAN
The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.
AIR DUCT
A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
FINNED HEATSINK
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
* L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
COMPREHENSIVE FAN CONTROLS
TUF Gaming X570-Plus (Wi-Fi) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.
All-in-one water-cooling set
Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.
DUAL PCIe 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.
*The actual transmission speed will be lower than the theoretical maximum speed.
ASUS OptiMem advantage:
ASUS OptiMem benefits:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Tested by using Synopsys HSPICE simulation software
TUF GAMING ALLIANCE
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
TUF PROTECTION
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
KEYBOARDS AND MOUSE CONNECTORS
Additional on-circuit ESD transient-voltage-suppression.
VGA PROTECTION
Additional on-circuit ESD TVS diodes to protect VGA output functionality.
USB CONNECTORS
TVS diode for surface-mount and dual in-line package.
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
EXCLUSIVE GIGABIT ETHERNET
Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
INTEL WIRELESS-AC 9260
INTEL WI-FI 5
TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.
* Actual speed varies, and depends on networking conditions.
GAMING AUDIO
TUF Gaming X570 series motherboards utilize a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108 dB signal-to-noise ratio for the stereo line-out and a 103 dB SNR for the line-in, providing pristine audio quality.
.jpg)
0:31
DTS CUSTOM FOR GAMING HEADSETS
Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
AERIAL MODE
Experience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!
SOUNDSCAPE MODE
The ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!
TACTICAL MODE
Shhh — is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
OUTSHINE THE COMPETITION

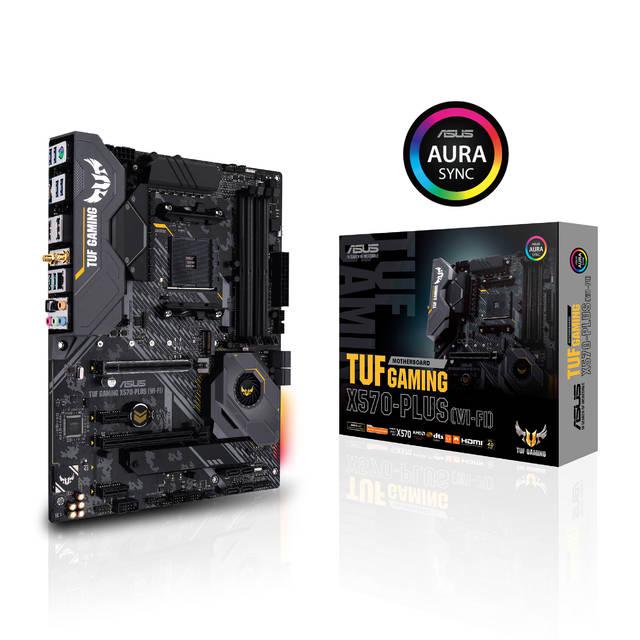

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
ADDRESSABLE GEN 2 RGB HEADER
TUF Gaming X570-Plus (Wi-Fi)'s Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
AMD X570 CHIPSET
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI® and AMD CrossFireX™. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN™ / 2ND AND 1ST GEN AMD RYZEN™ WITH RADEON™ VEGA GRAPHICS PROCESSORS
The high-performance 3rd Gen AMD Ryzen™ processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express® 4.0/3.0 lanes for superb performance.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
- *Precise specifications and features vary by model . Please refer to the specification page
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
General Information
| UPC | 192876388495 |
|---|
