✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.
Description
- Intel B560
- Supports 11th / 10th Gen Intel Core Processors
- Supports Intel Pentium Gold and Celeron Processors
- DDR4 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200 / 2933 / 2800 / 2666 / 2400 / 2133
Intel® B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5 Gb Ethernet, Intel® Wi-Fi 6, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, Aura Sync RGB Lighting, Addressable RGB
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Next-gen connectivity: PCIe 4.0, Realtek 2.5 Gb Ethernet, Intel® Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 support
- Made for online gaming: Intel Wi-Fi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
- Two-way AI Noise-Cancelation: Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- MyASUS: Offer a variety of support features such as helping to contact the customer service center, optimize networking performance and collaborate with your mobile phone through Link to MyASUS
Durable. Stable. Reliable.

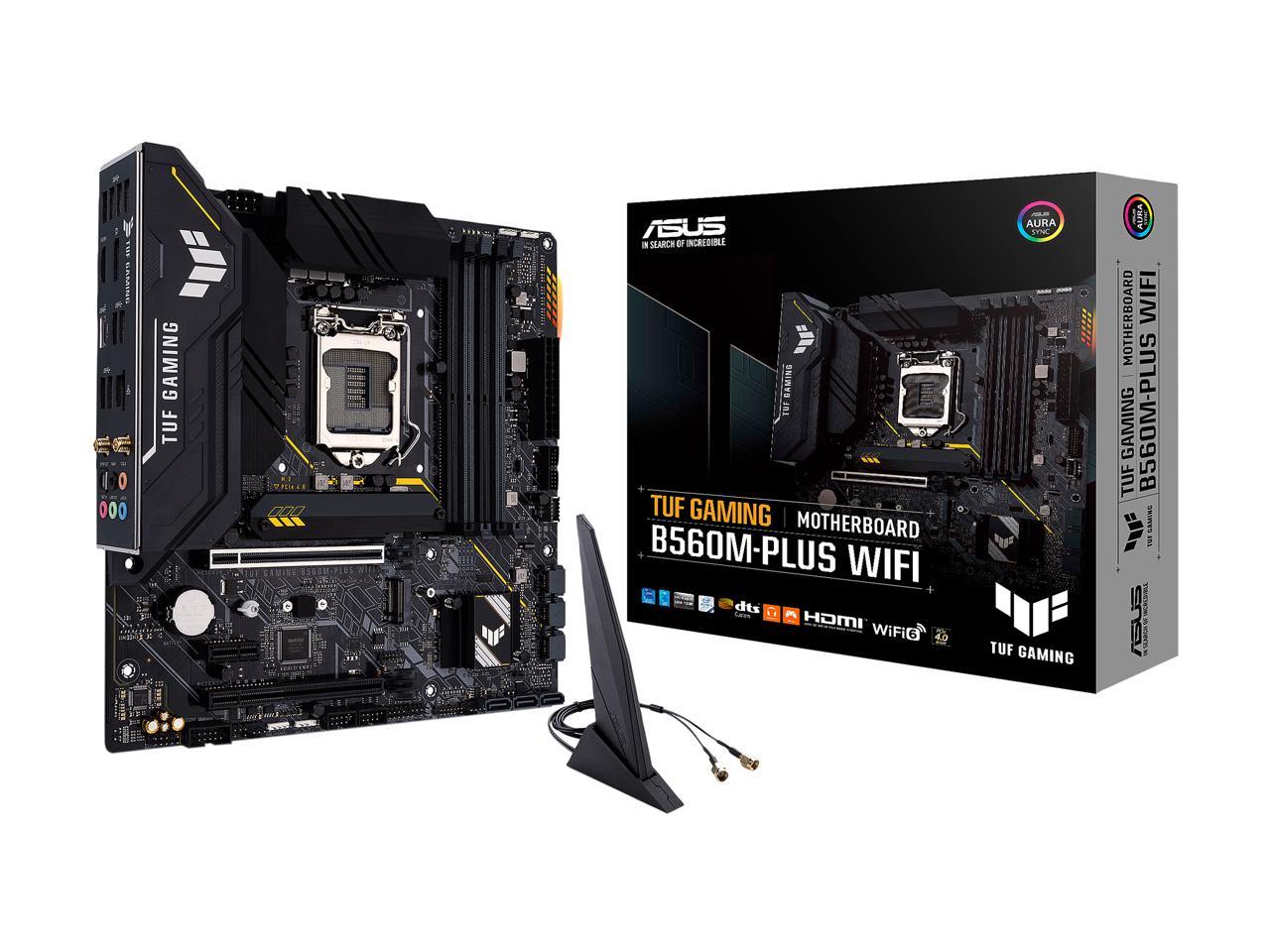

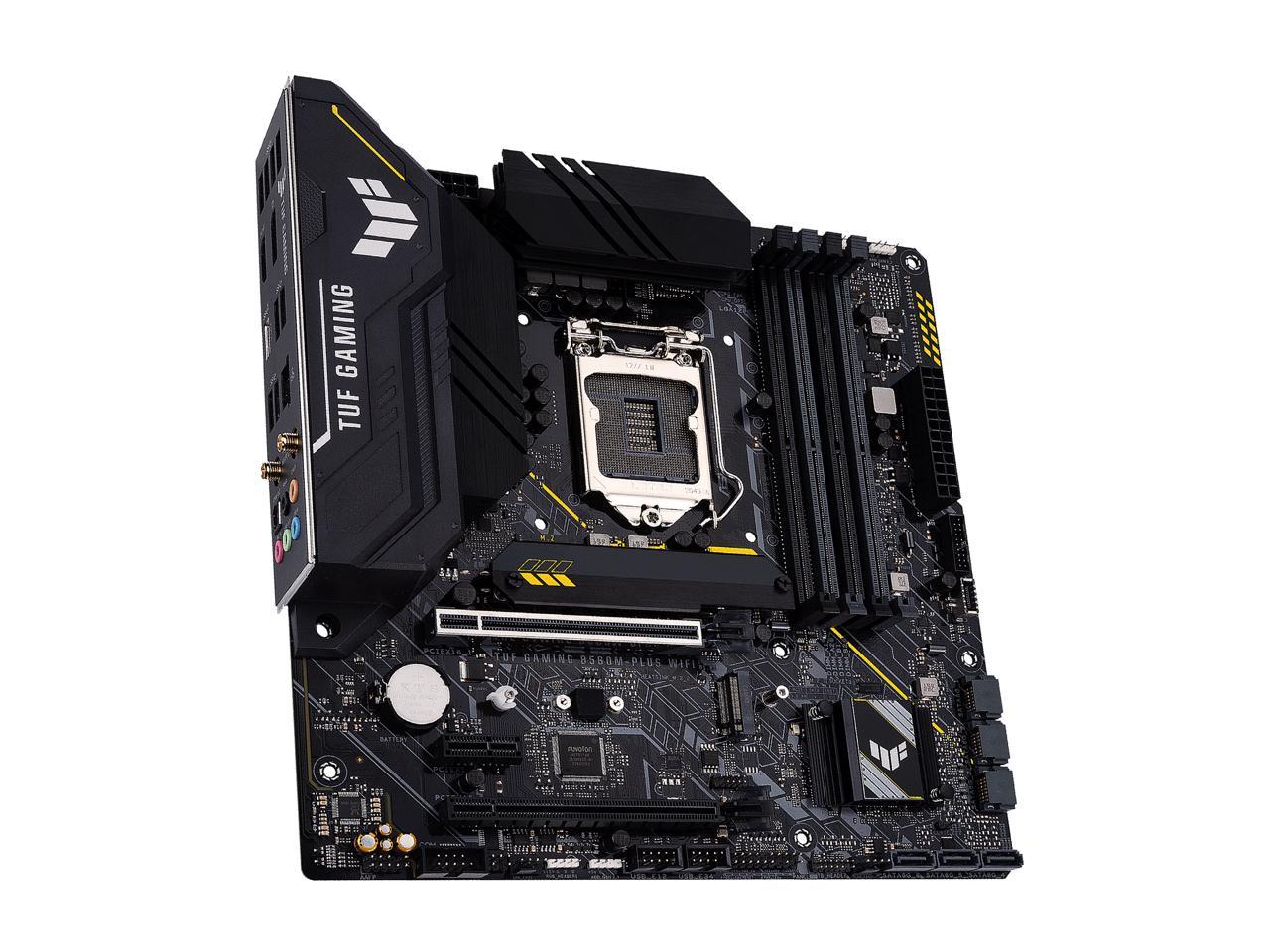

ASUS TUF GAMING B560M-PLUS WI-FI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING B560M-PLUS WI-FI sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
- 4 x USB 2.0
- 1 x DisplayPort
- 1 x HDMI
- 1 x USB 3.2 Gen 1 Type-C
- 2 x USB 3.2 Gen 1
- 2 x USB 3.2 Gen 2
- 2.5 Gb Ethernet
- Intel® Wi-Fi 6
- 5 x Audio jacks
- Pre-mounted I/O Shield
- PCIe 4.0 x16
- ASUS SafeSlot Core+
- M.2 Q-Latch
- PCIe 3.0 x1
- PCIe 3.0 x16 (max @ x4)
- AURA RGB header
- Addressable Gen 2 header
- DDR4 5000 MHz (OC)
- LGA 1200 Socket
- Intel® 11th and 10th Gen Processors
- 2 x Front USB 3.2 Gen 1
- M.2 x4 PCIe 4.0 mode with flexible M.2 heatsink
- M.2 x4 dual mode
- Intel® Optane™ Memory Ready
- 6 x SATA 6 Gb/s
- Intel® B560 Chipset
- 1 x Thunderbolt™ header
- Addressable Gen 2 header
- AURA RGB header
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel® Core™ processors, plus support for faster memory and storage, TUF GAMING B560M-PLUS series motherboards are the perfect foundation for your next high-core-count battle rig.
Power Design
Driver and MOSFET
DrMOS
The onboard VRM of TUF GAMING B560 series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.
Multilayer PCB
6-layer PCB Design
Multiple PCB layers shift heat away from critical components, providing more headroom to push CPUs beyond stock speeds.
Power Connector
ProCool Connectors
Enhanced EATX 8-Pin Connectors
- Extreme durability
- Prevent hotspots and connector failure
* The theoretical value is for reference only.
System Stability
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability.
TUF Capacitors
Proprietary capacitors provide up to 20% greater temperature tolerance and 5X-longer lifespan.
Controller
Digi+ VRM
The integrated Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Cooling
Cooler by Design
1. Larger VRM heatsink
A larger, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
Thermal pad
High quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
2. Flexible M.2 Heatsink
TUF GAMING B560M-PLUS Series have flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
A larger, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
Thermal pad
High quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
2. Flexible M.2 Heatsink
TUF GAMING B560M-PLUS Series have flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Comprehensive Fan Controls
TUF GAMING B560M-PLUS series motherboards feature comprehensive fan controls that can be configured via Fan Xpert 4 utility or via the award-winning ASUS UEFI BIOS.
Memory & Storage
PCIe 4.0 M.2 (up to 64 Gbps)
TUF GAMING B560 series motherboards feature PCIe 4.0 M.2 for an incredible performance boost.
* Actual transmission speed will be lower than theoretical maximum speed.
** The M.2_1 supports PCIe 4.0 and the M.2_2 support PCIe 3.0.
* Actual transmission speed will be lower than theoretical maximum speed.
** The M.2_1 supports PCIe 4.0 and the M.2_2 support PCIe 3.0.
DRAM Overclocking Performance
DDR4 OC 5000 MHz+
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Memory Speed Improvement
TUF GAMING B560 SERIES
5000 MHZ(OC)
TUF GAMING B460 SERIES
2933 MHz
TUF GAMING B560 SERIES
5000 MHZ(OC)
TUF GAMING B460 SERIES
2933 MHz
Connectivity
USB 3.2 Gen 1 Type-C
Numerous USB ports support gaming rigs loaded with peripherals, including a rear-panel USB Type-C connector with fast USB 3.2 Gen 1 connectivity for compatible cases.
Thunderbolt™ 4 Support
TUF GAMING B560M-PLUS series feature Thunderbolt™ 4 support via an on-board header. With latest Intel-certified ASUS ThunderboltEX 4 add-on card, TUF GAMING B560M-PLUS series can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.
40 Gbps on Thunderbolt 4
Consistent, superfast performance
40 Gbps on Thunderbolt 4
Consistent, superfast performance
Easy PC DIY
TUF GAMING motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF Gaming Alliance
Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
TUF Protection
SafeSlot Core+
SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
Strengthened solder points around the PCIe and DIMM pins.
Metal inserts keep graphics cards properly aligned during installation.
The metal side-panels feature hooks that firmly clasp the slot body.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV.
KEYBOARDS AND MOUSE CONNECTORS
Additional on-circuit ESD transient-voltage-suppression.
USB CONNECTORS
TVS diode for surface-mount and dual in-line package.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
* ESD result is undertaken by individual LANGaurd.
DRAM Overvoltage Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Stainless Steel Back I/O Panel
TUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a 3X-longer lifespan versus traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
Easy Configuration
.gif)
M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD and neatly eliminate traditional screws.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
Immersive Gaming
TUF GAMING B560M-PLUS series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Networking
Intel® Wi-Fi 6
The Intel® Wi-Fi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6.
* Actual speed varies, and depends on networking conditions.
Intel® Wireless Wi-Fi 6 adapter
2.4 Gbps
Other wireless adapter
0.86 Gbps
2.4 Gbps
Other wireless adapter
0.86 Gbps
* Actual speed varies, and depends on networking conditions.
Exclusive 2.5 gigabit Ethernet
2.5 G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Turbo LAN
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.- Real-time speed monitor
- Grouping your own favorite list
- Set the highest priority with one click
- Set priority to speed up your application
MyASUS
MyASUS offers a variety of support features to help you contact customer service, troubleshoot issues and optimize product performance. You can also use MyASUS to enable the Wi-Fi SmartConnect function to automatically connect to the wireless router with the best signal.
Two-Way AI Noise Cancelation
This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.* An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
500 M
Deep-learning database
Deep-learning database
Audio
Input/output
Input/output
High
Fidelity
Fidelity
Minimal
Performance impact
Performance impact
COD: MW - FPS (2560 x 1440)
* Testing configuration: CPU: 11th Gen Intel Core Processor ; Motherboard: ROG MAXIMUS XIII HERO; Graphics card: NVIDIA RTX 3070; DRAM: G.SKILL F4-3200C16Q-32GVK; Power: SUPER FLOWER 550W; HDD: ADATA SX910 SSD 128G; Cooling: Enermax T.B.APOLLISH; Game: CALL OF DUTY: MODERN WARFARE ; Voice Communication App: Discord (In-app noise canceling effects disabled) ; Background noise: Keyboard typing, mouse clicking, people talking, and music playing.
* Actual performance varies by configuration.
* Actual performance varies by configuration.
Hear the Difference
.jpg)
0:17
.jpg)
0:17
AI OFF
AI ON
Background noise
Other human voice
Human speech
Gaming Audio
Better Audio Effects
.png?ts=637479391433561183)
0:31
DTS® Custom for Gaming Headsets
Hone your battle skills with exclusive DTS® Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.
Aerial mode
Experience audio as though hovering above the game world, with sound coming from ahead — perfect for MOBA, RTA, strategy and sports titles!
Soundscape mode
The ideal audio envelope for MMO, RPG, action and horror games — your ears will put you in the center of the action!
Tactical mode
Shhh — is that an enemy just around the corner? DTS Custom emphasizes detail for stealthy play, so you'll detect and locate every footstep!
Aura Sync RGB Lighting
Outshine the Competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Static
Breathing
Strobing
Rainbow
Color Cycle
Starry Night
Music Effect
Smart
Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
- *Precise specifications and features vary by model. Please refer to the specification page.
- The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
General Information
| UPC | 195553125284 |
|---|
