Name: Asus Tuf B450M-Plus Gaming Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard
Brand: ASUS
SKU: TUF B450M-PLUS GAMIN
Price: 234.19 USD
Availability: InStock

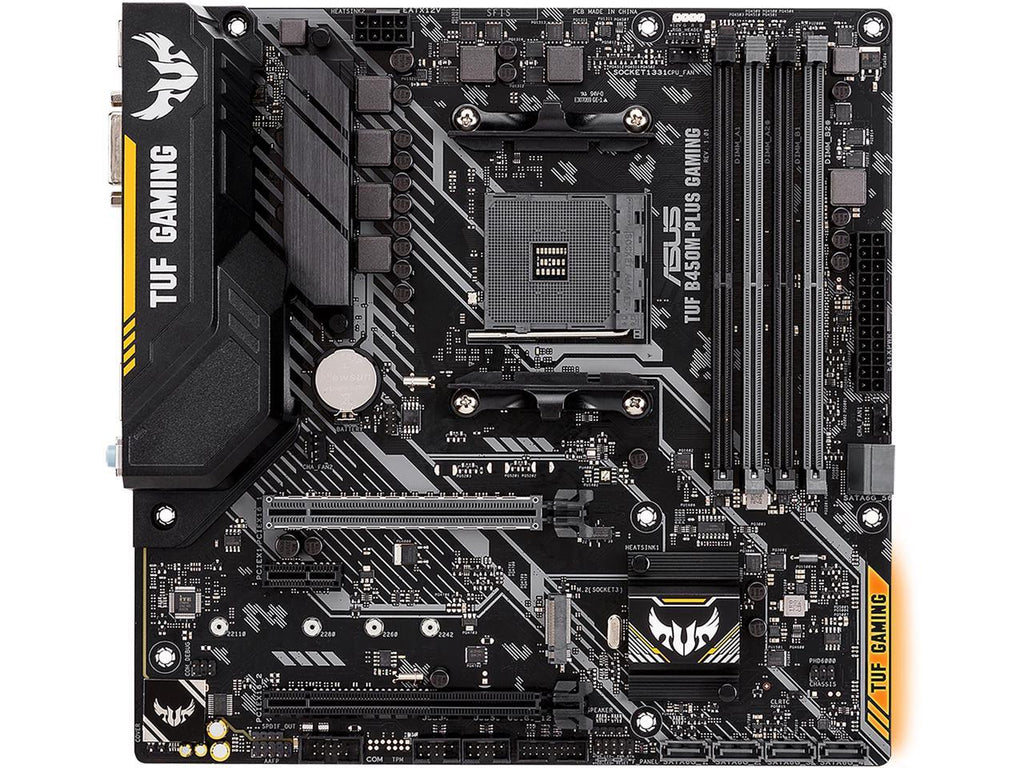

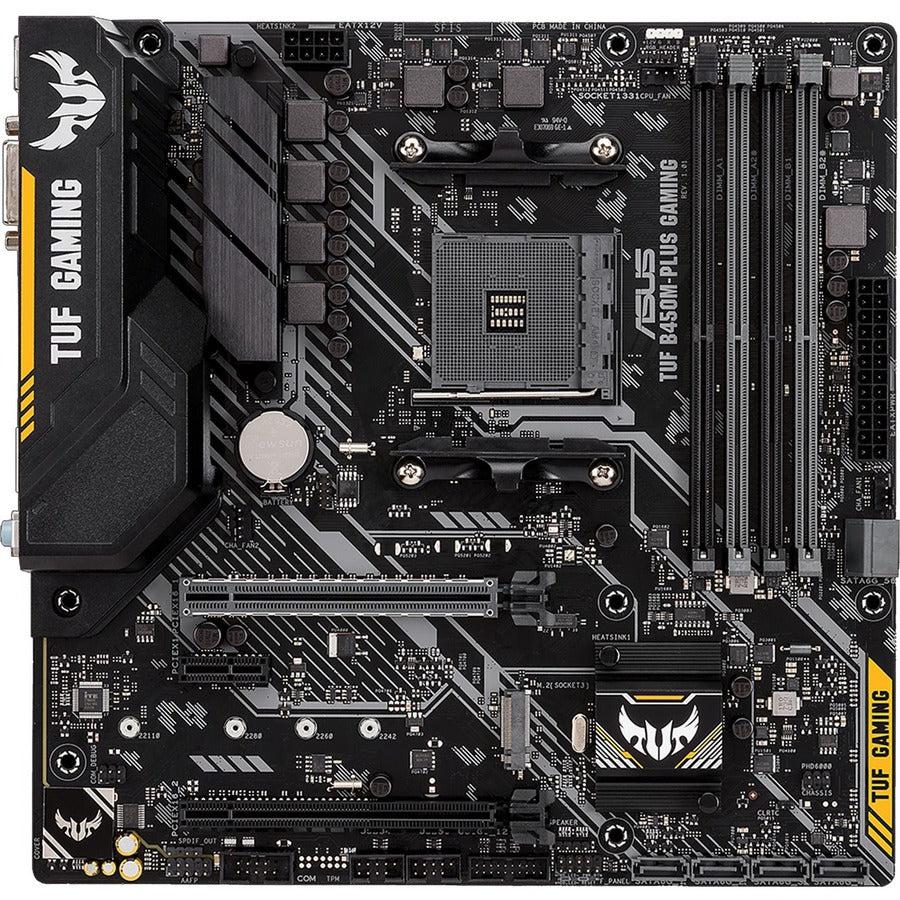

Asus Tuf B450M-Plus Gaming Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard

Roll over image to zoom in Click on image to zoom

2nd generation AMD Ryzen AM4 maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and Gigabit LAN

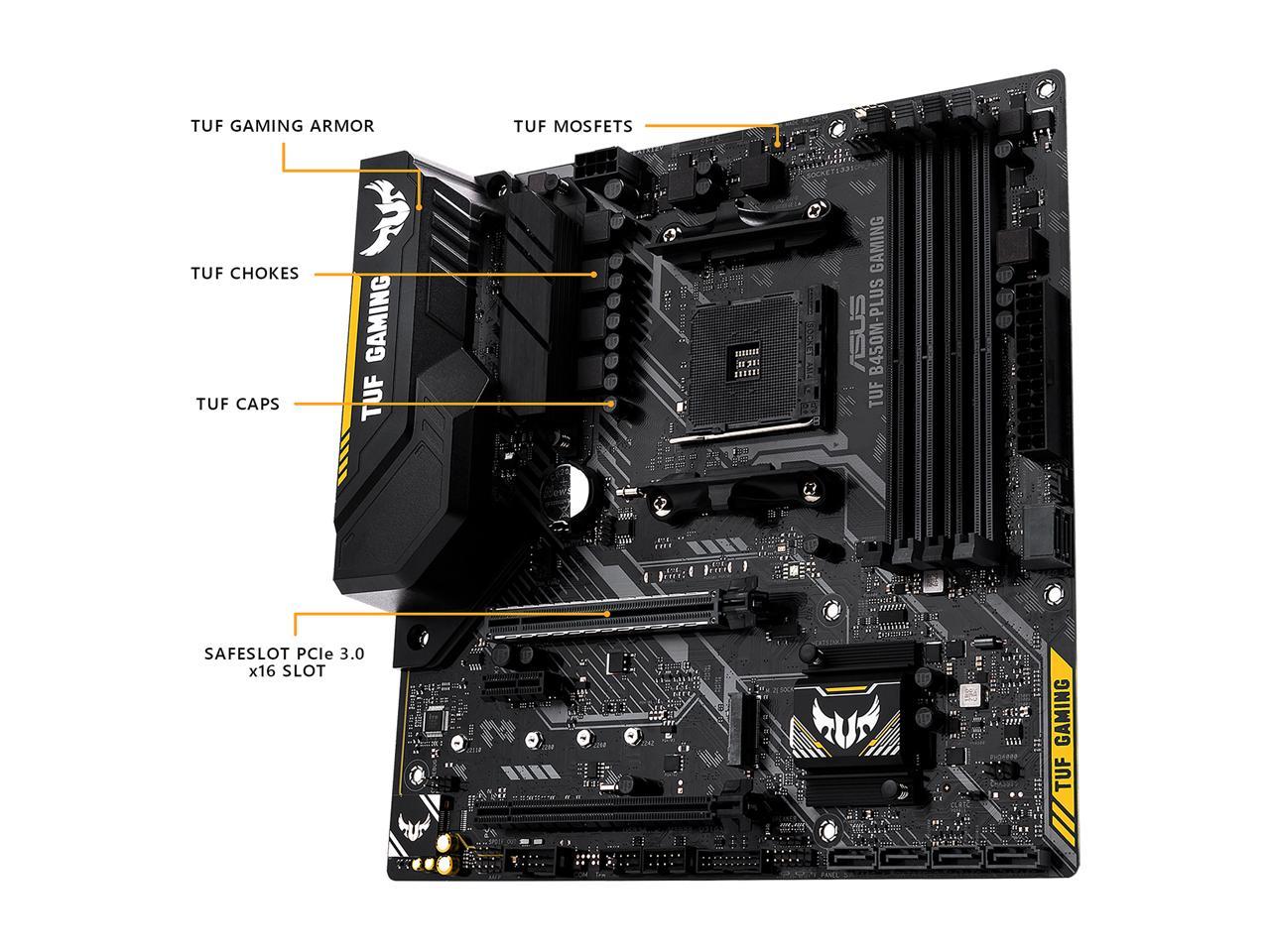

Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability

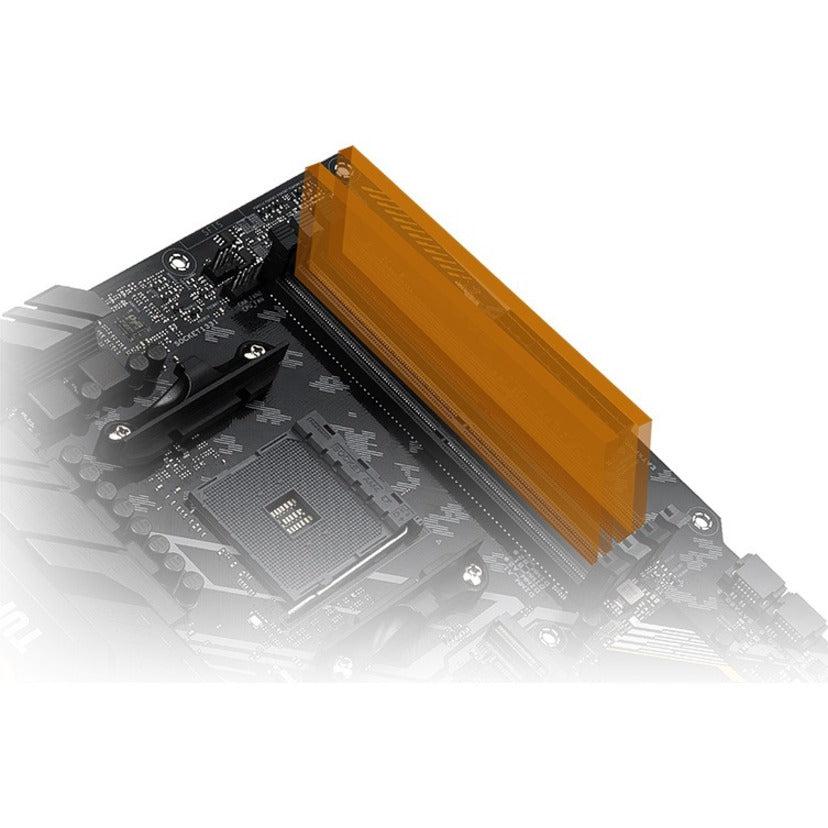

TUF Protection with SafeSlot and Overvoltage protection ensures component stability and dependability

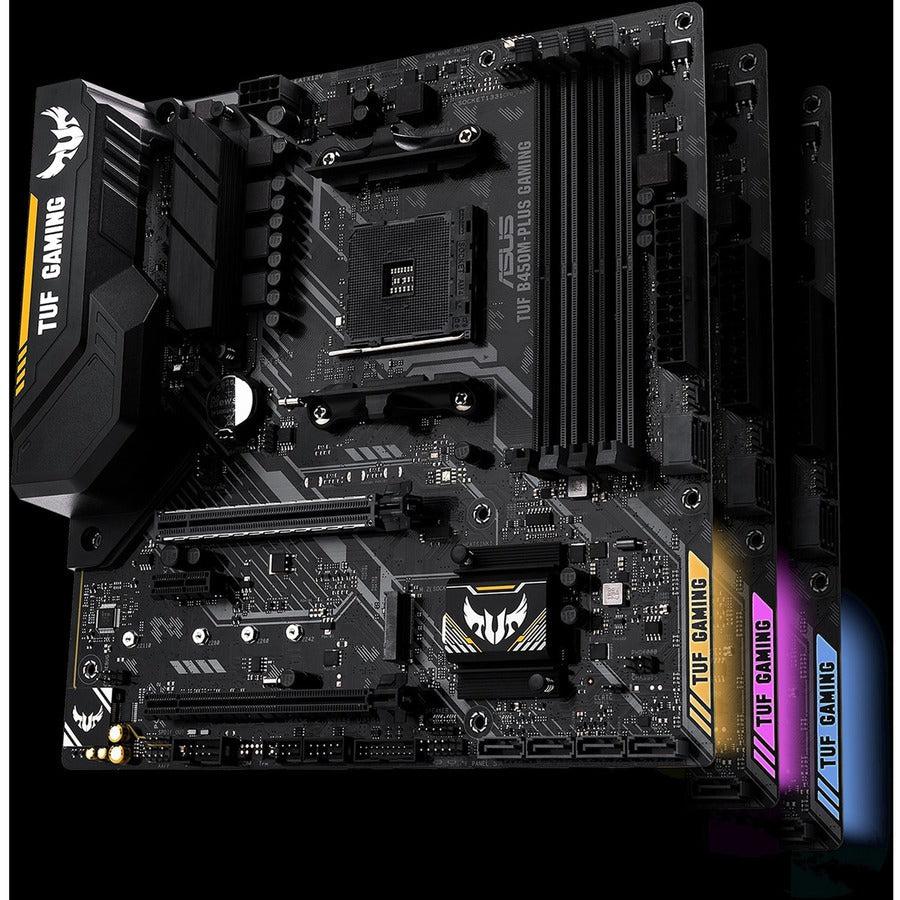

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
Exclusive DTS Custom audio

**Model**
Brand	ASUS
Series	TUF
Model	B450M-PLUS GAMING

**Supported CPU**
CPU Socket Type	AM4
CPU Type	AMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors Supports CPU up to 8 cores* * Due to CPU limitation, CPU cores supported varies by processor. ** Refer to www.asus.com for the AMD CPU support list.

**Chipsets**
Chipset	AMD B450

**Memory**

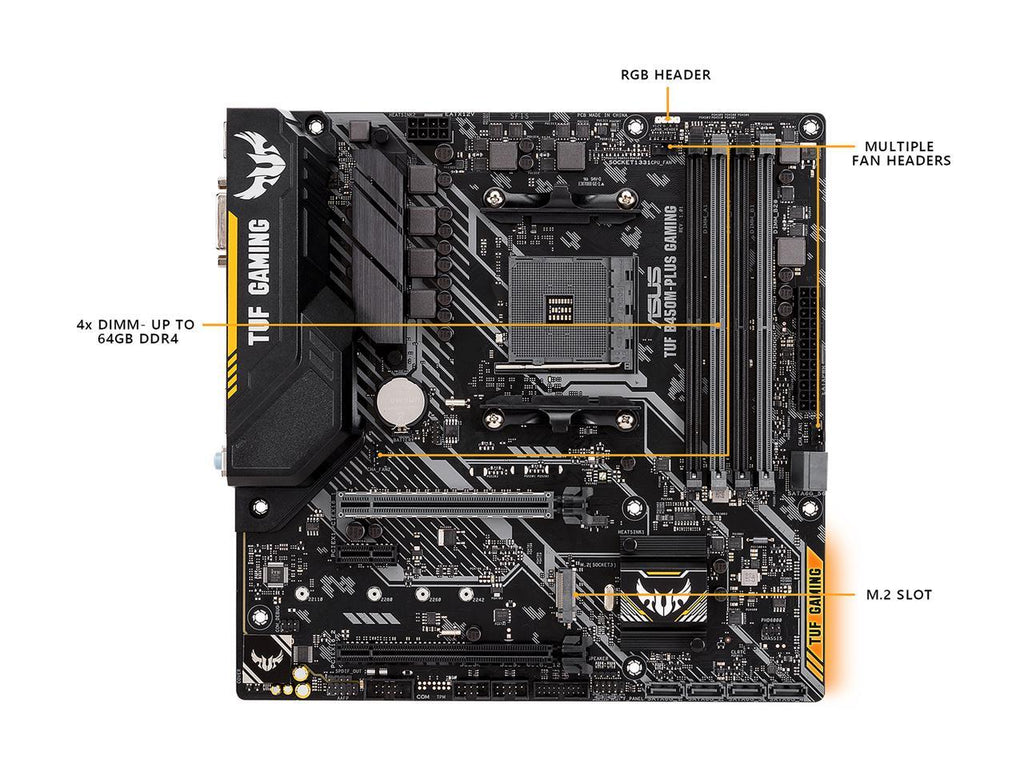

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200(O.C)/ 3000(O.C)/ 2800(O.C)/ 2666/ 2400/ 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16	1 x PCI Express 2.0 x16 slots (max. at x4 mode)
PCI Express x1	1 x PCI Express 2.0 x1 slot

**Storage Devices**
SATA 6Gb/s	AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors: 2 x SATA 6Gb/s port(s) AMD B450 chipset: 4 x SATA 6Gb/s port(s)
M.2	1 x M.2 socket 3 with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support* * When a M.2 device is installed, the SATA6G_5/6 ports do not operate
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI, DVI-D ports - Supports HDMI 2.0b with max. resolution 4096x2160@60Hz - Supports DVI-D with max. resolution up to 1920x1200@60Hz

**Onboard Audio**

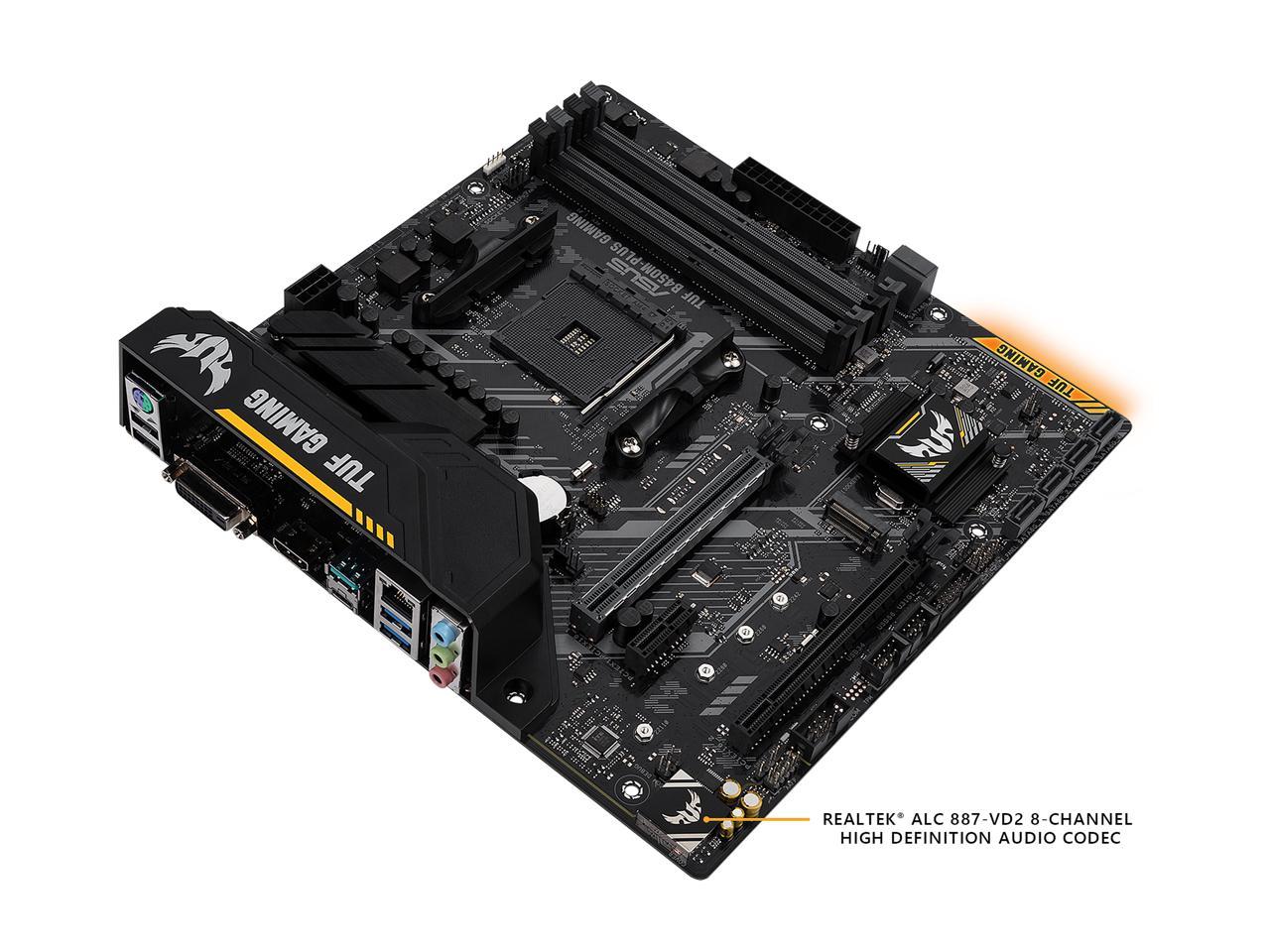

Audio Chipset	Realtek ALC887-VD2
Audio Channels	8 Channels * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

**Onboard LAN**
LAN Chipset	Realtek RTL8111H
Max LAN Speed	10/100/1000Mbps

**Rear Panel Ports**

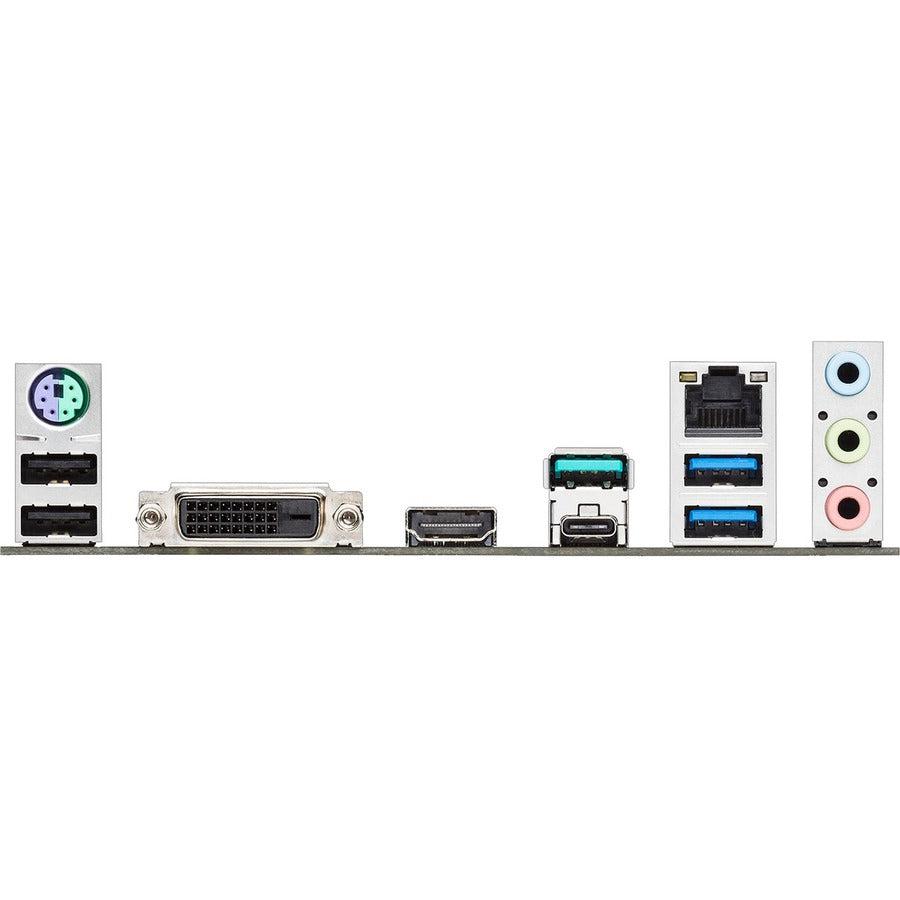

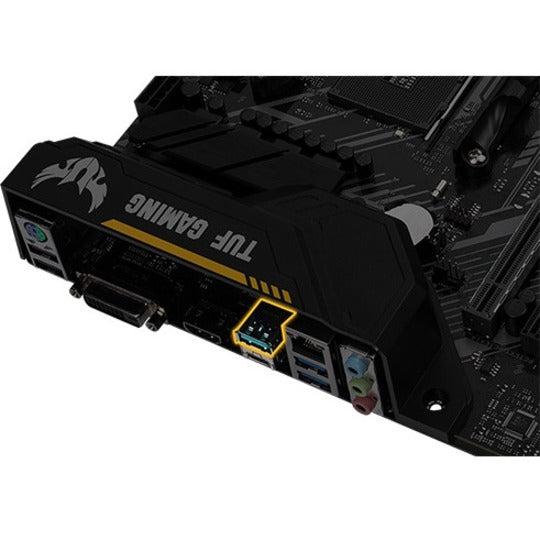

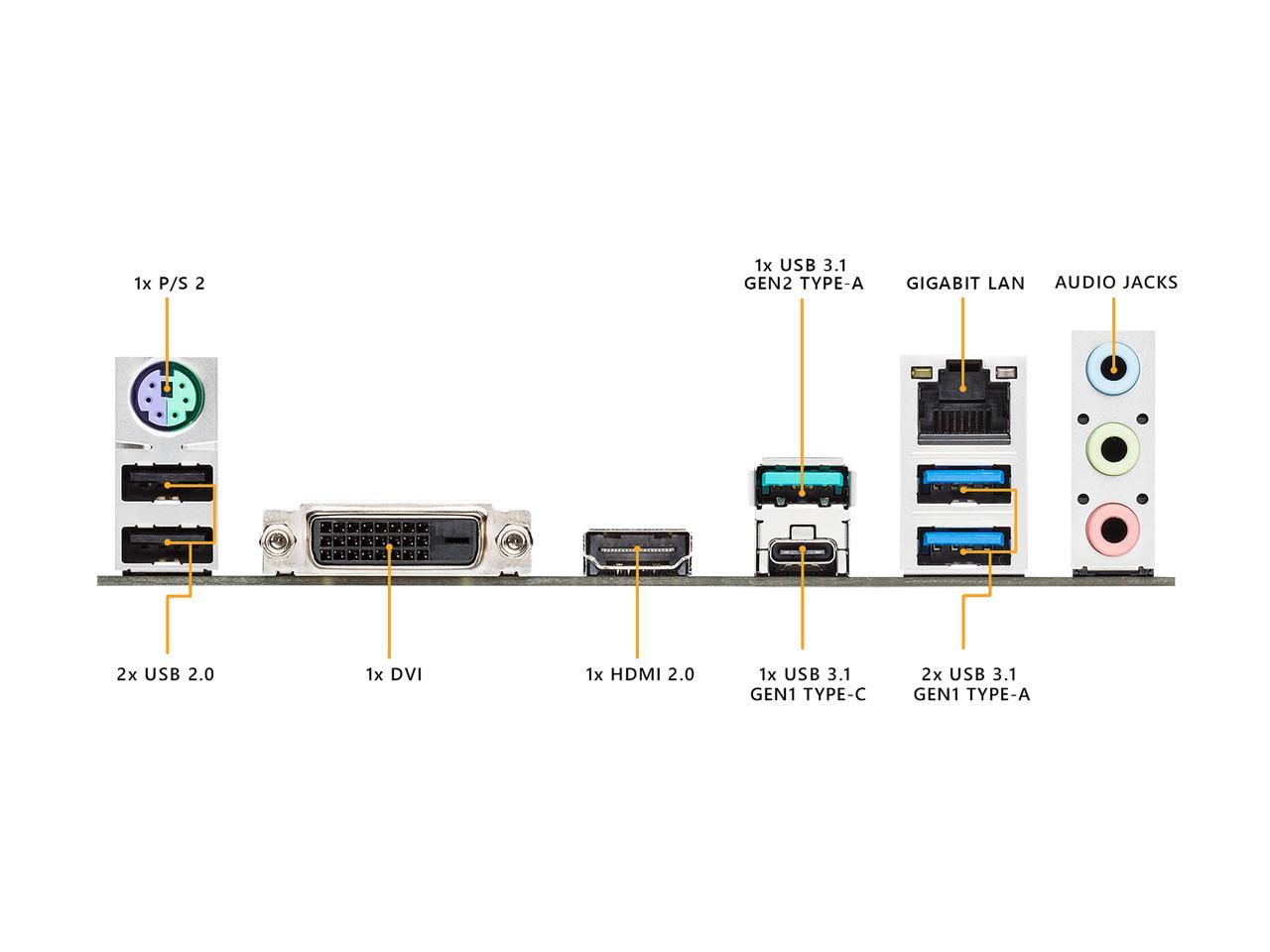

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 2 Type-A 1 x USB 3.1 Gen 1 (blue) USB Type-C 2 x USB 2.0 2 x USB 3.1 Gen 1 (blue) 3 x Audio jack(s)

**Internal I/O Connectors**
Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x Aura RGB Strip Header 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header

**Physical Spec**
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin EATX Power connector 1 x 8-pin ATX 12V Power connector

**Features**
Features	Multi-GPU Support: Supports AMD CrossFireX Technology Special Features: ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design AURA: - Aura Lighting Control ASUS Exclusive Features: - AI Suite 3 - Ai Charger - PC Cleaner ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 2+ ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS User Profile, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control, F4 AURA ON/OFF, F9 Search Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

**Packaging**

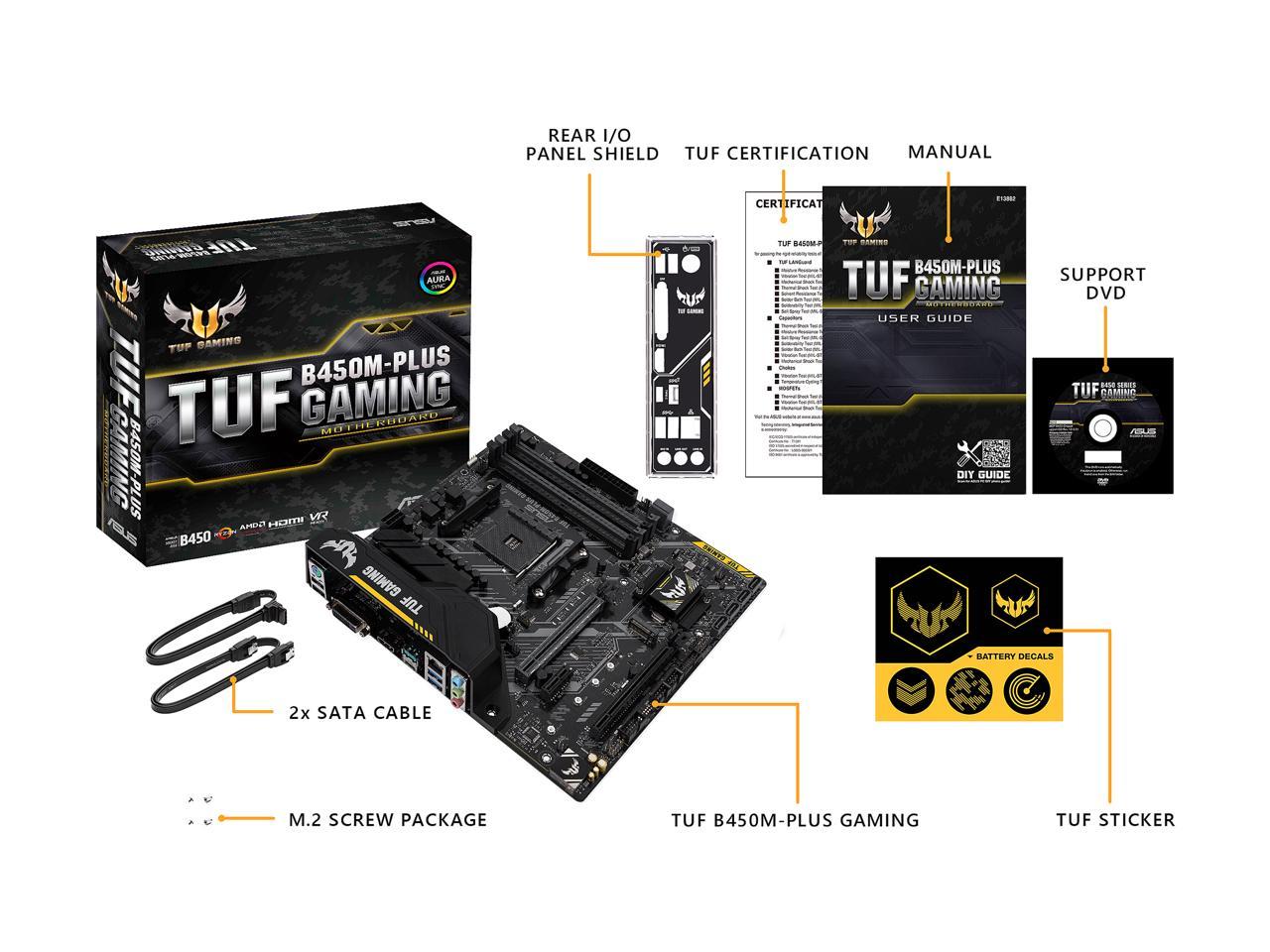

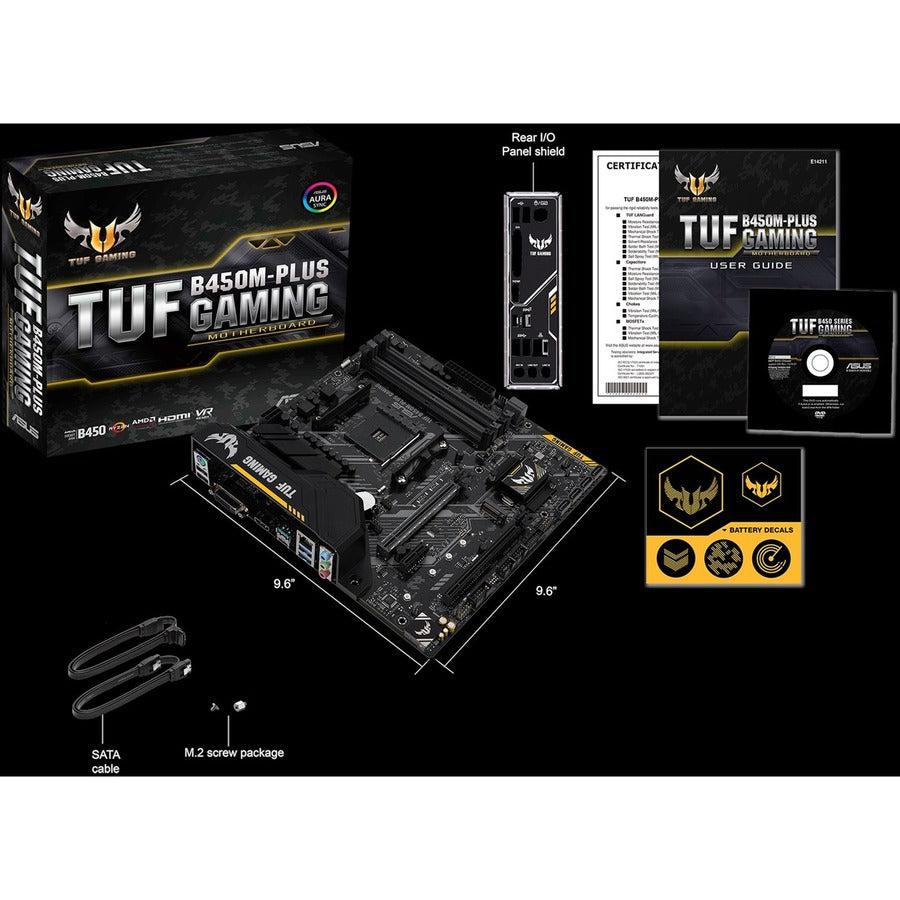

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s)

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	TUF B450M-PLUS GAMIN
Manufacturer Website Address	http://usa.asus.com
Brand Name	TUF
Product Model	B450M-PLUS GAMING
Product Name	B450M-PLUS GAMING Desktop Motherboard
Product Type	Desktop Motherboard
UPC	192876020425

Chipset

Chipset Manufacturer	AMD

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6

Width	9.6"
Depth	9.6"

Miscellaneous

Package Contents	B450M-PLUS GAMING Desktop Motherboard User's Manual I/O Shield 2 x SATA 6Gb/s Cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification Card(s)
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year

Asus Tuf B450M-Plus Gaming Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard

Description

Asus Tuf B450M-Plus Gaming Am4 Amd B450 Sata 6Gb/S Micro Atx Amd Motherboard
