Name: Asus Rog Strix Z490-H Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard
Brand: ASUS
SKU: STRIX Z490-H GAMING
Price: 661.00 CAD
Availability: InStock

Asus Rog Strix Z490-H Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

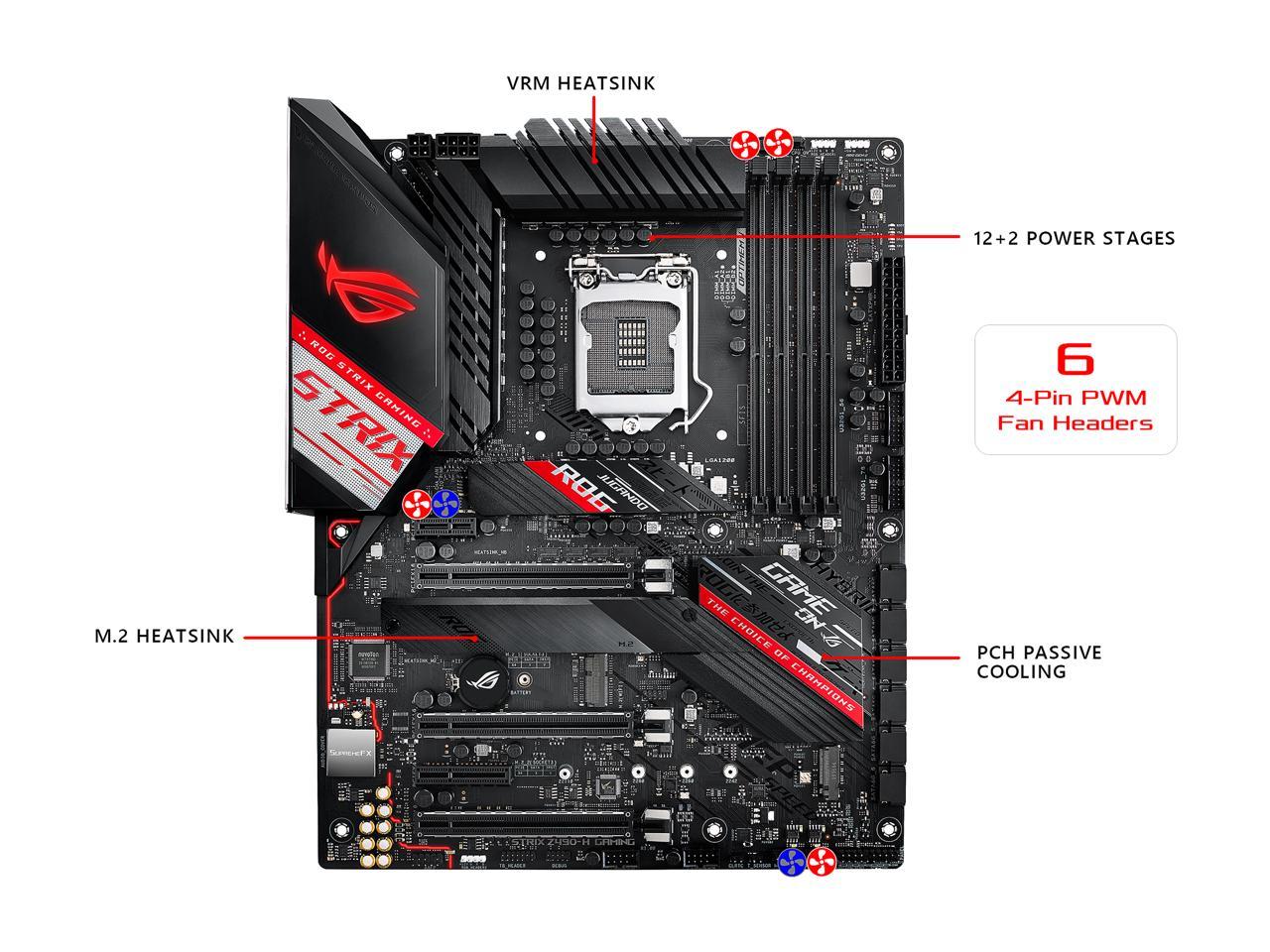

Robust Power Solution: 12+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
Fastest Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, Thunderbolt header
Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

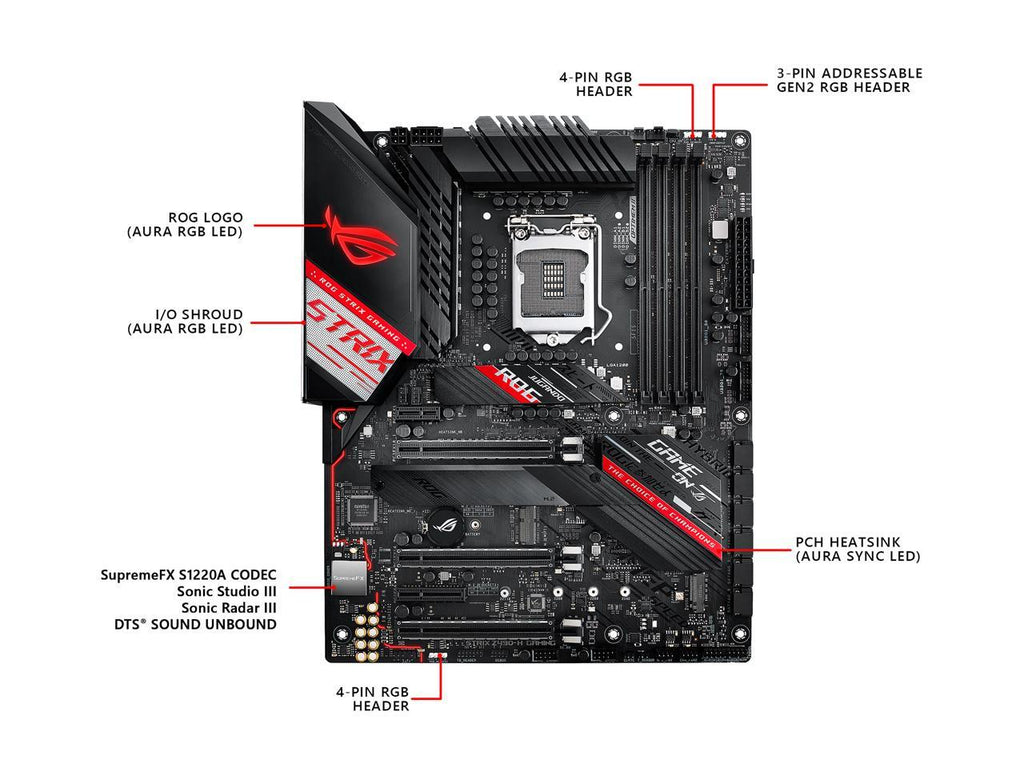

Unmatched Personalization: Time-honored red on black gaming look, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

**Model**
Brand	ASUS
Series	ROG
Model	STRIX Z490-H GAMING

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z490

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x DisplayPort 1.4 * 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	Intel 10th Gen Processors 3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
PCI Express x4	Intel Z490 Chipset 1 x PCIe 3.0 x4 (max at x2 mode)
PCI Express x1	1 x PCIe 3.0 x1
Other Slots	M.2 slot only (Key E) (Support CNVI & PCIe interface)* * Wi-Fi module is sold separately.

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX Surround Sound High Definition Audio CODEC S1220A
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps

**Rear Panel Ports**

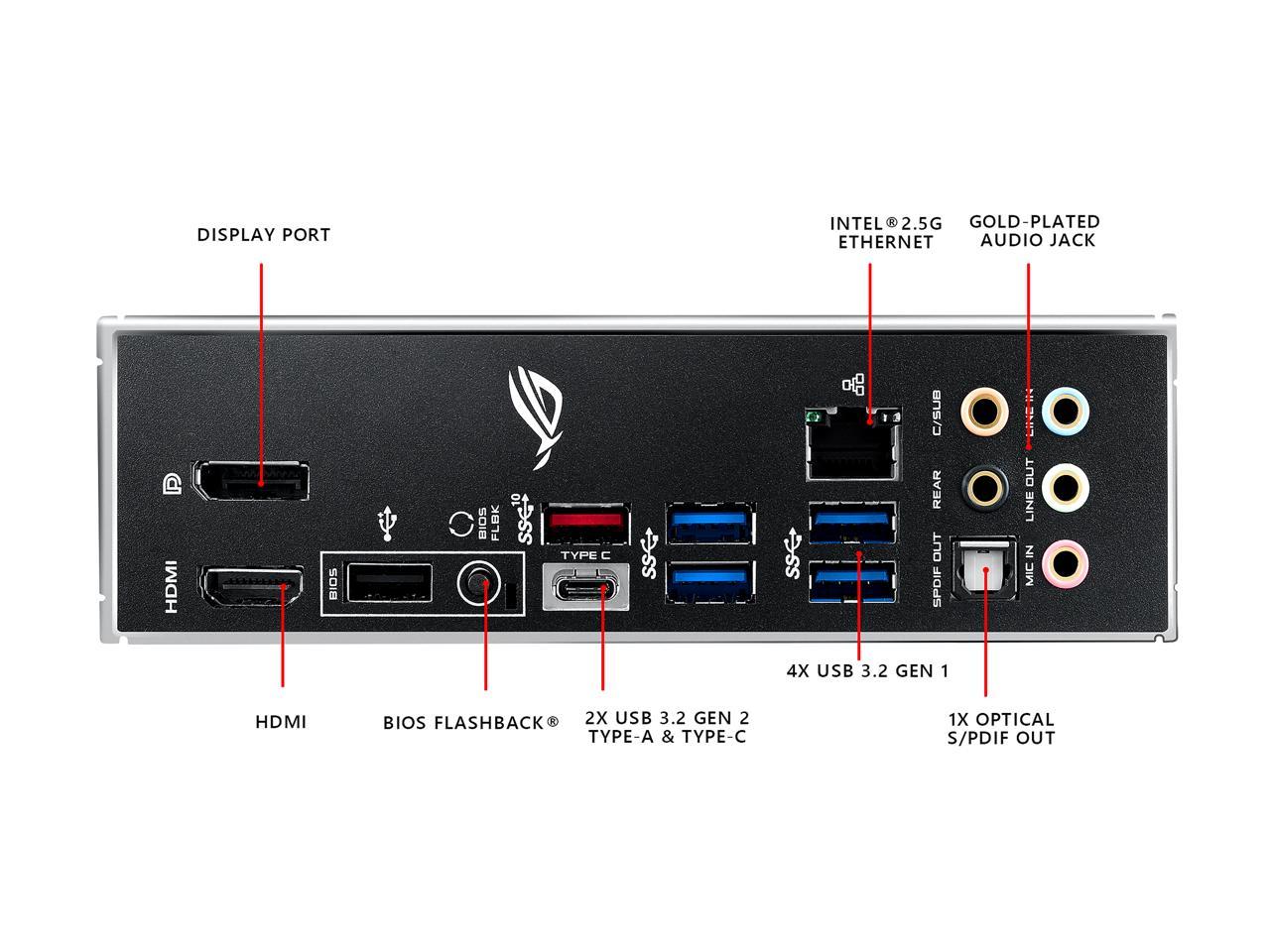

Back I/O Ports	1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-C) 4 x USB 3.2 Gen 1 Type-A 1 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x Optical S/PDIF out 1 x USB BIOS FlashBack Button(s) 5 x Gold-plated audio jacks

**Internal I/O Connectors**
Onboard USB	2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x Thunderbolt header(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x VRM_HS_FAN Header

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB

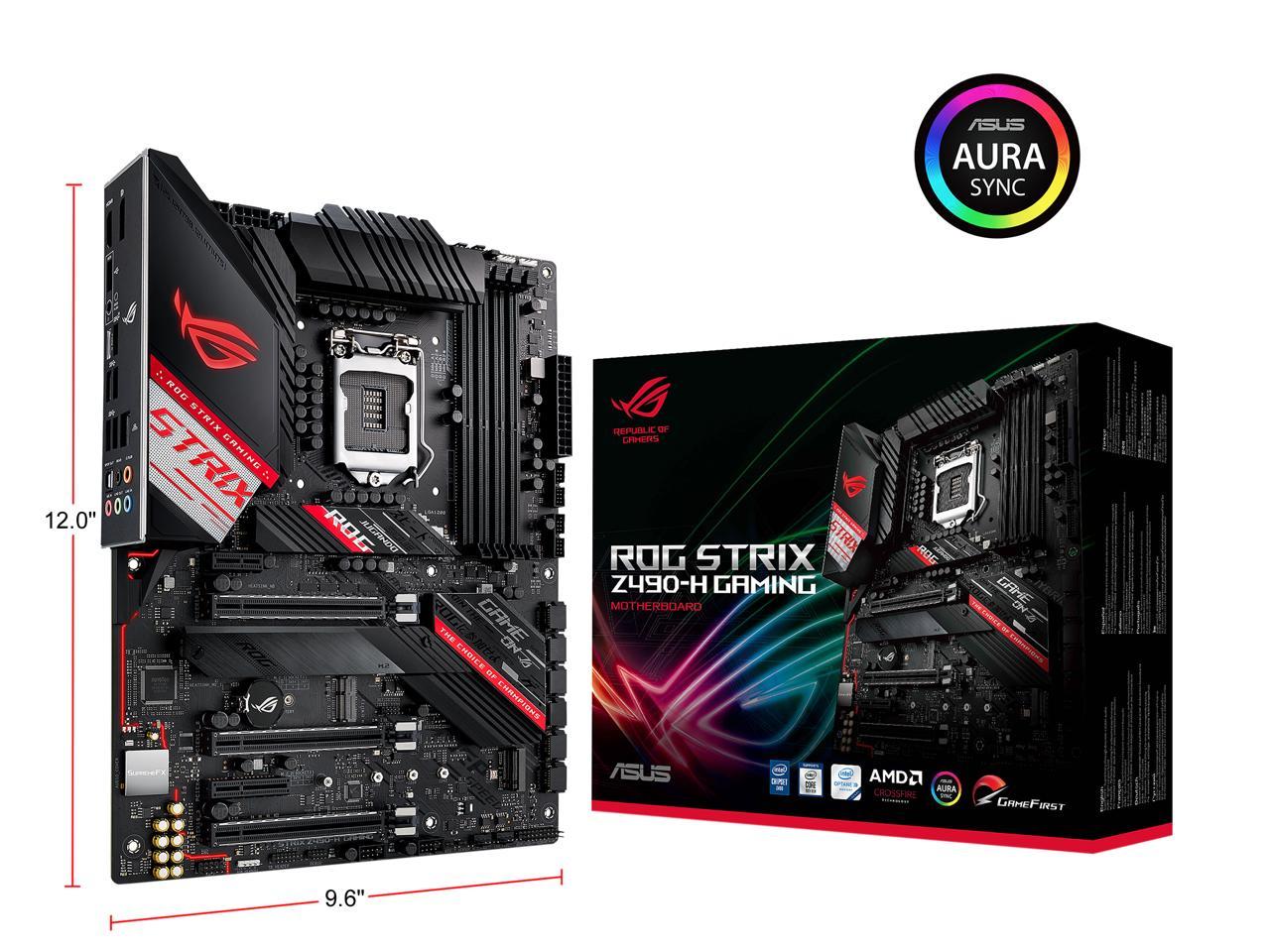

Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

**Features**
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 -5-way Optimization with AI Overclocking. TPU EPU Digi+ VRM Fan Xpert 4 Turbo app -EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [ yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS Flashback button -BIOS FlashBackTM LED - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - 2 x Standard RGB headers - Addressable Gen 2 RGB header Onboard red LED lighting accent BIOS: 192(128+64)MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE

**Packaging**

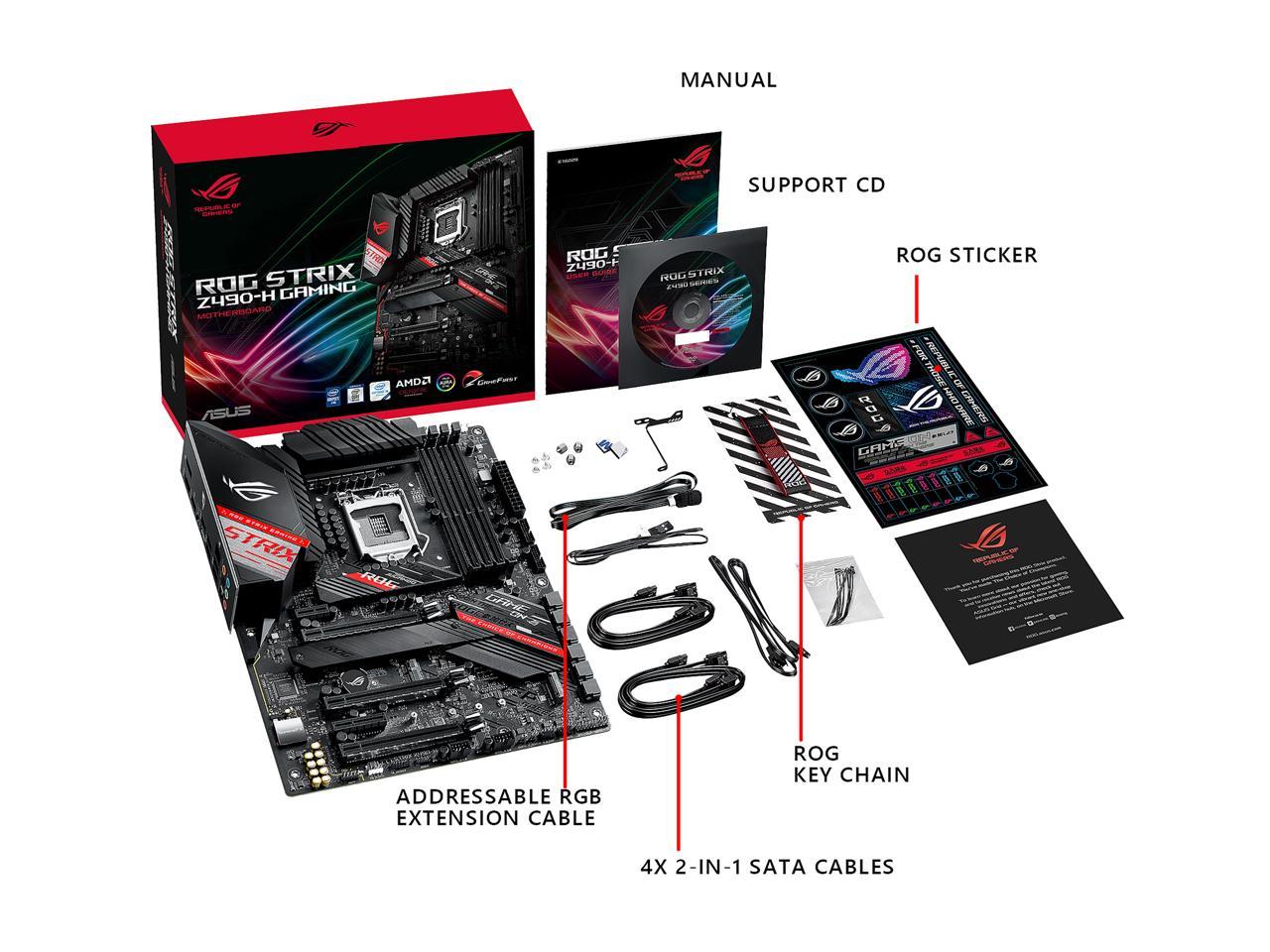

Package Contents	Accessories: User's manual 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 M.2 SSD screw package(s) 1 M.2 Key E screw package(s) 1 ROG key chain

General Information

UPC	192876674291
