Name: Asus Rog Strix Z490-E Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 (Wifi 6) Sata 6Gb/S Atx Intel
Brand: ASUS
SKU: STRIX Z490-E GAMING
Price: 764.00 CAD
Availability: InStock

Asus Rog Strix Z490-E Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 (Wifi 6) Sata 6Gb/S Atx Intel

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

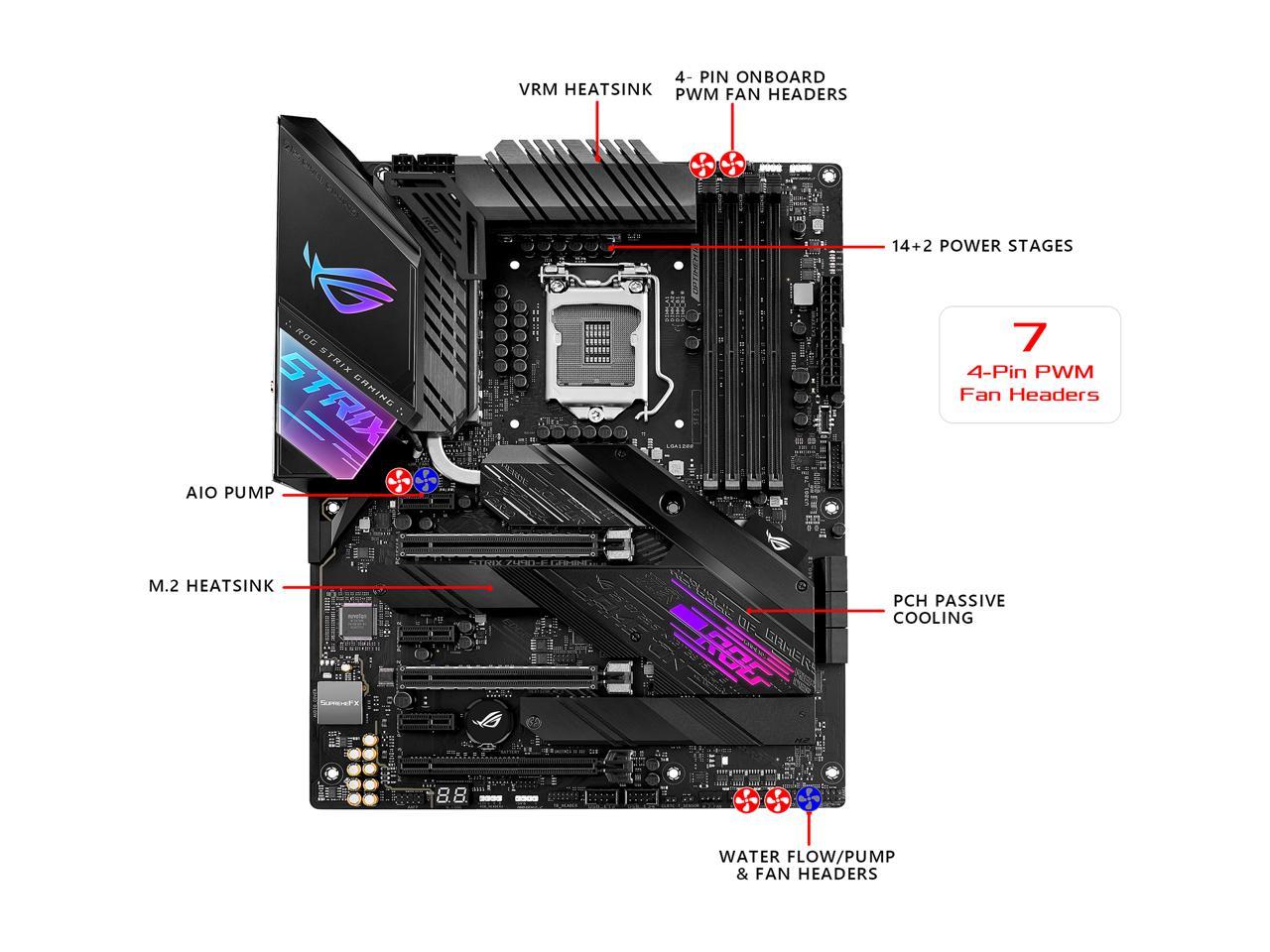

Robust Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power even when push the CPU performance to the limit
Optimized Thermal Design: Except comprehensive heatsink, heatpipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
High-performance Gaming Networking: On-board Intel WiFi 6 AX201 (802.11 ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 2 Type-C connector
Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
Unmatched Personalization

**Model**
Brand	ASUS
Series	ROG
Model	STRIX Z490-E GAMING

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z490

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x DisplayPort 1.4 * 1 x HDMI 1.4b * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**

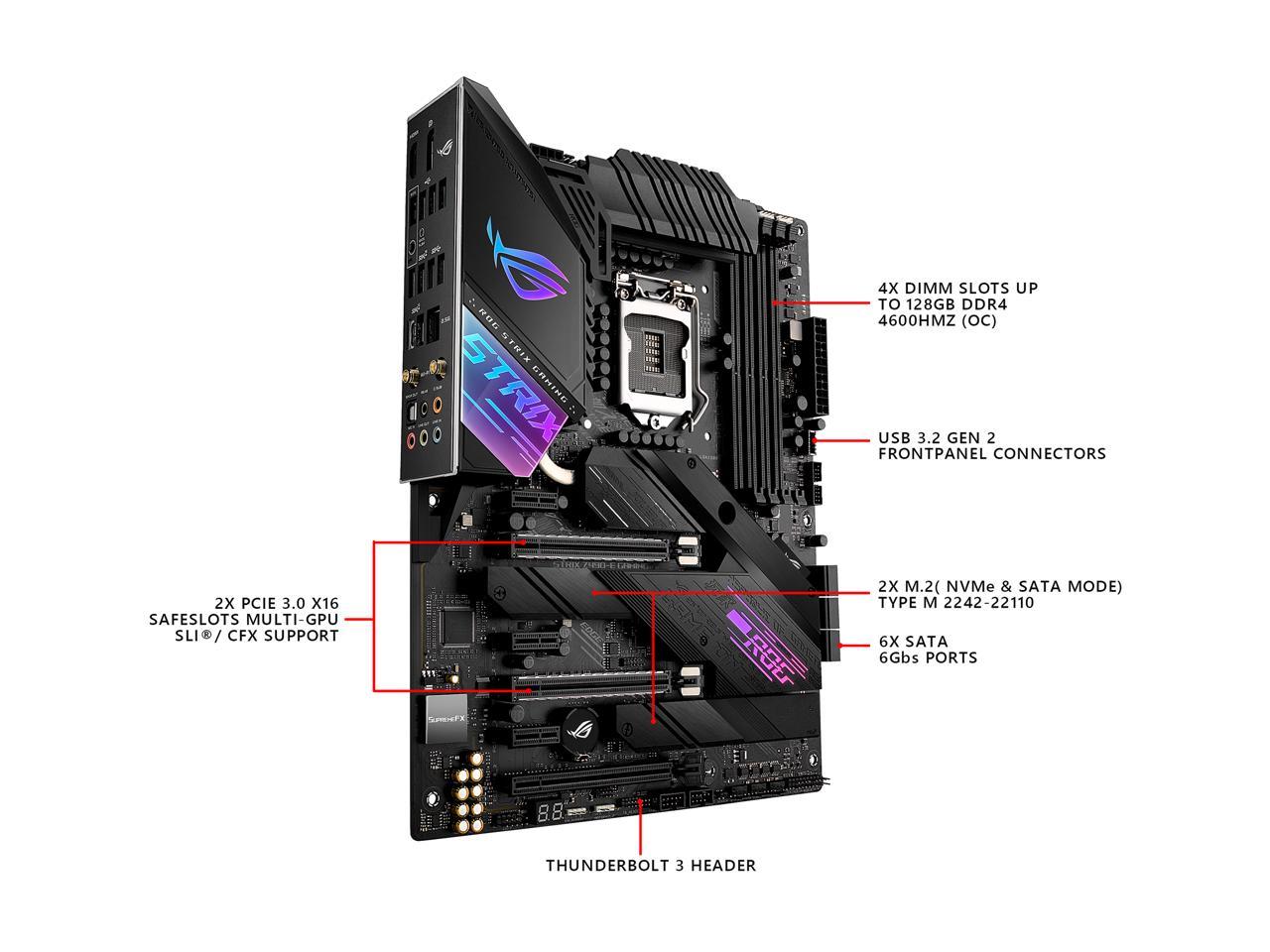

PCI Express 3.0 x16	Intel 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8)
PCI Express x4	Intel Z490 Chipset 1 x PCIe 3.0 x4 (x4 mode)
PCI Express x1	3 x PCIe 3.0 x1

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface
Bluetooth	Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later.

**Rear Panel Ports**

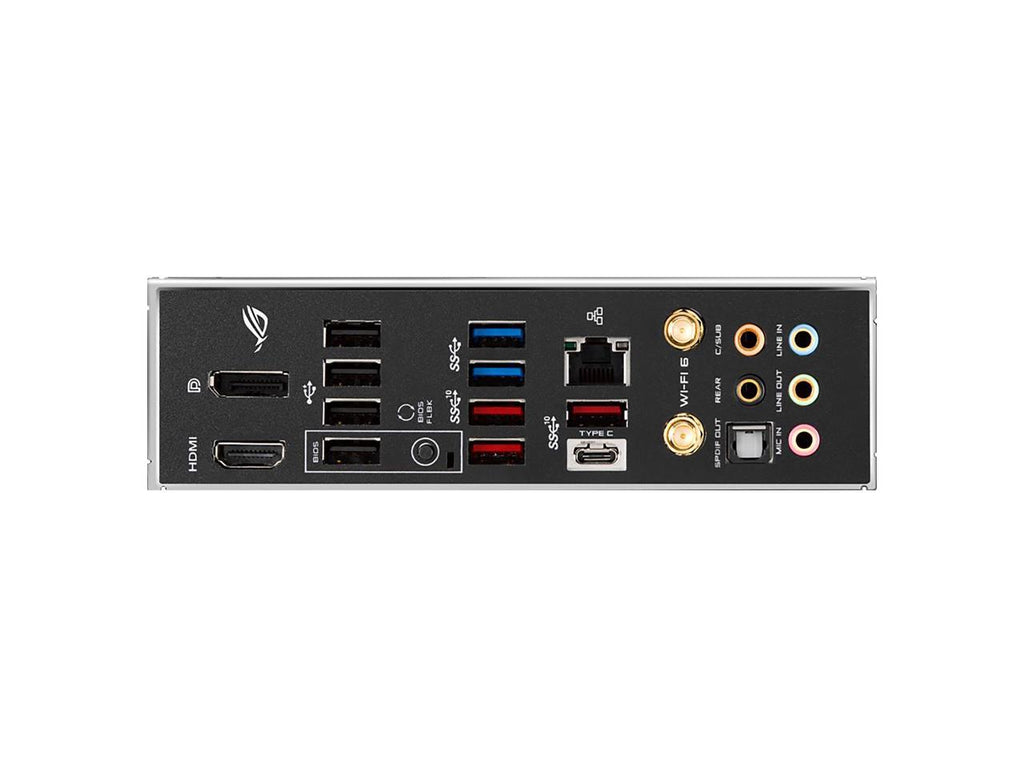

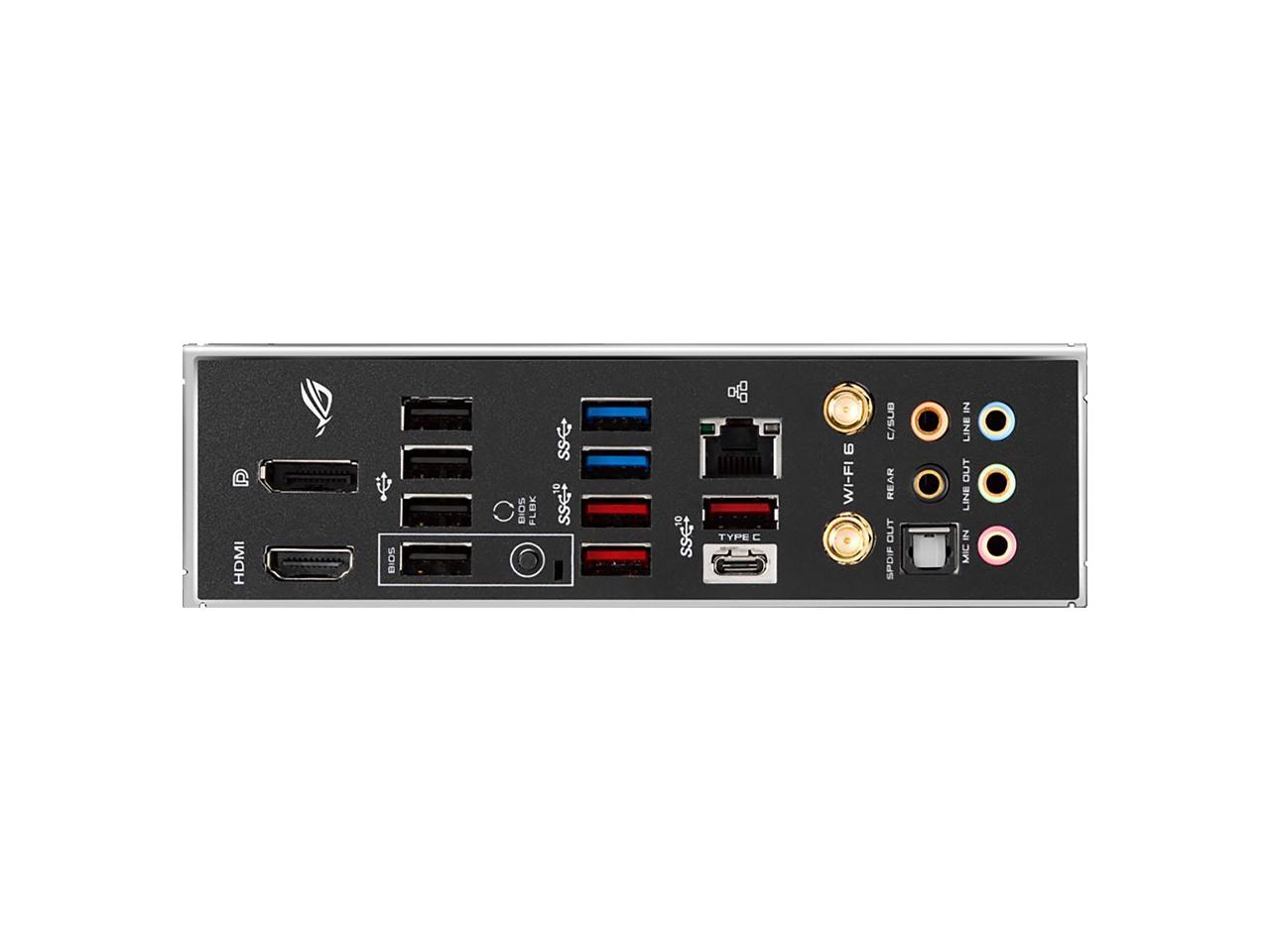

Back I/O Ports	1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C) 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS FlashBack Button(s) 5 x Gold-plated audio jacks ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen2 connector support additional 1 USB ports (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

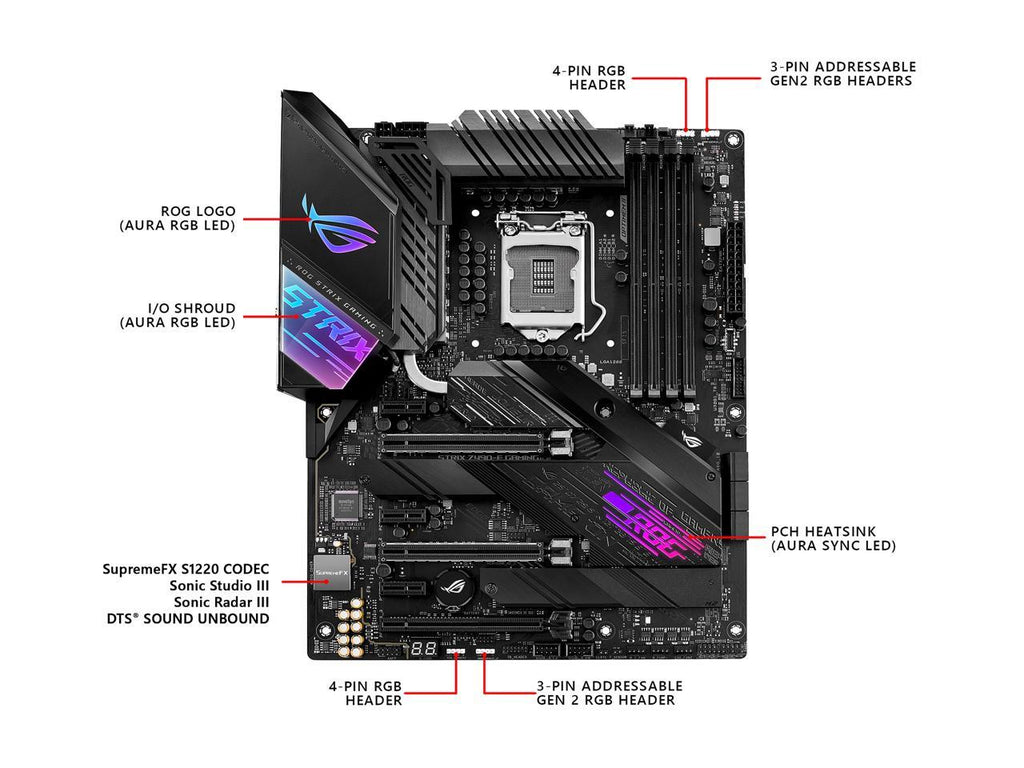

Other Connectors	1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 2 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 1 x Thunderbolt header(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x Q-Code 1 x VRM_HS_FAN Header

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB

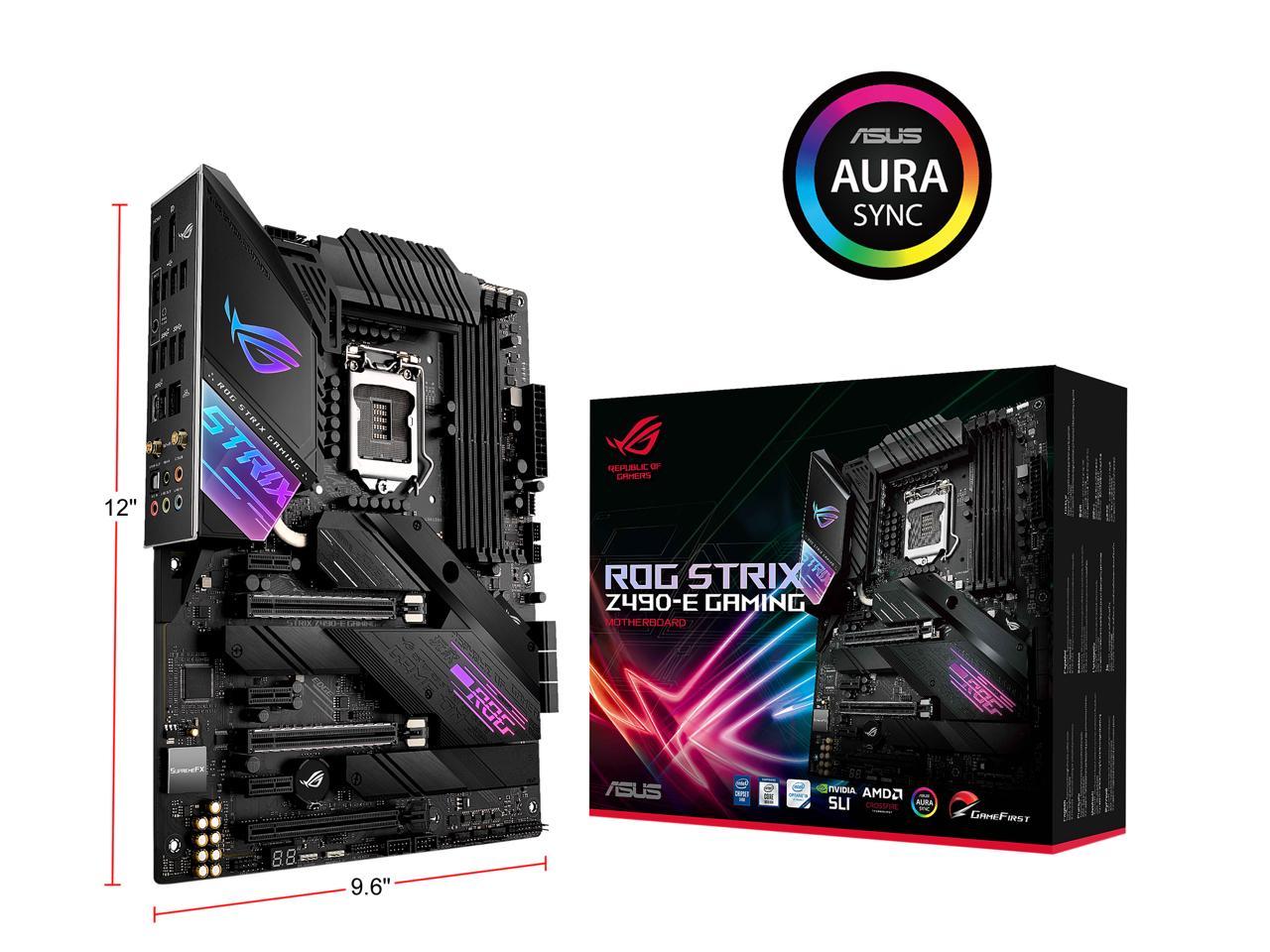

Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

**Windows Compatibility**
Windows 11	Supported

**Features**
Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Special Features: AURA: - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS EZ DIY: - ASUS USB BIOS FlashBack ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM DIY Friendly Design - ProCool II - SafeSlot Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync AI Suite 3: - 5-way Optimization with AI Optimization. TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS AI Optimization Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS: 192(128+64)MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

**Packaging**
Package Contents	Accessories: User's manual 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan) 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 x Wi-Fi moving antenna 1 M.2 SSD screw package(s) 1 ROG key chain

General Information

UPC	192876671634

Asus Rog Strix Z490-E Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 (Wifi 6) Sata 6Gb/S Atx Intel

Description

Asus Rog Strix Z490-E Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 (Wifi 6) Sata 6Gb/S Atx Intel
