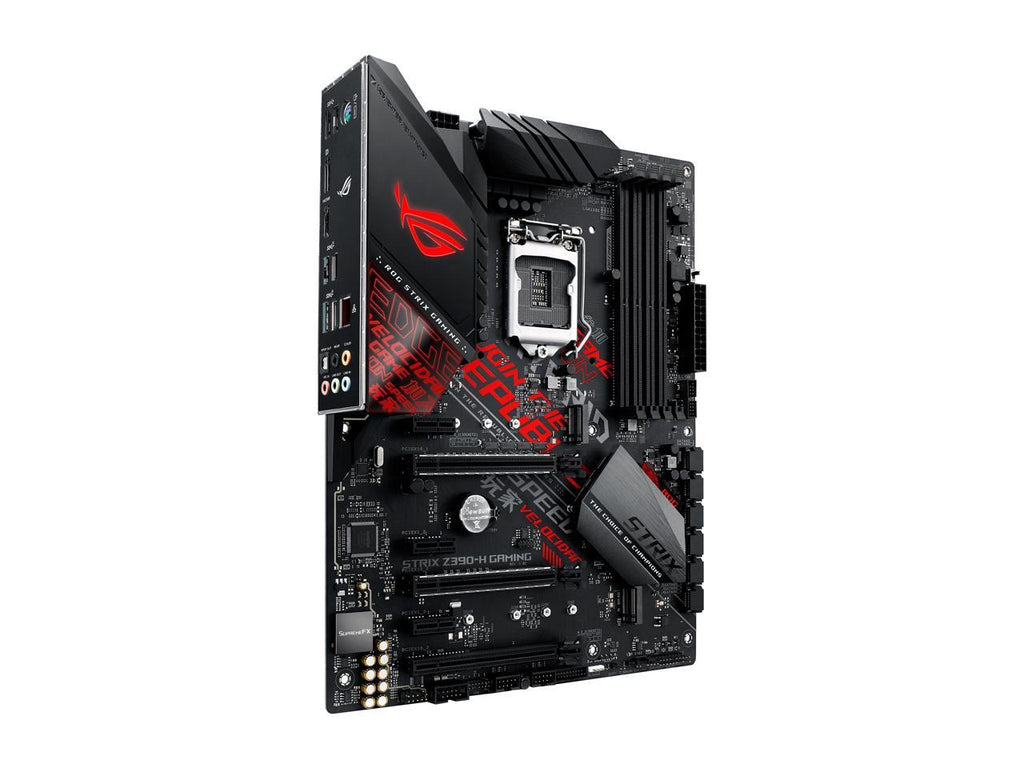

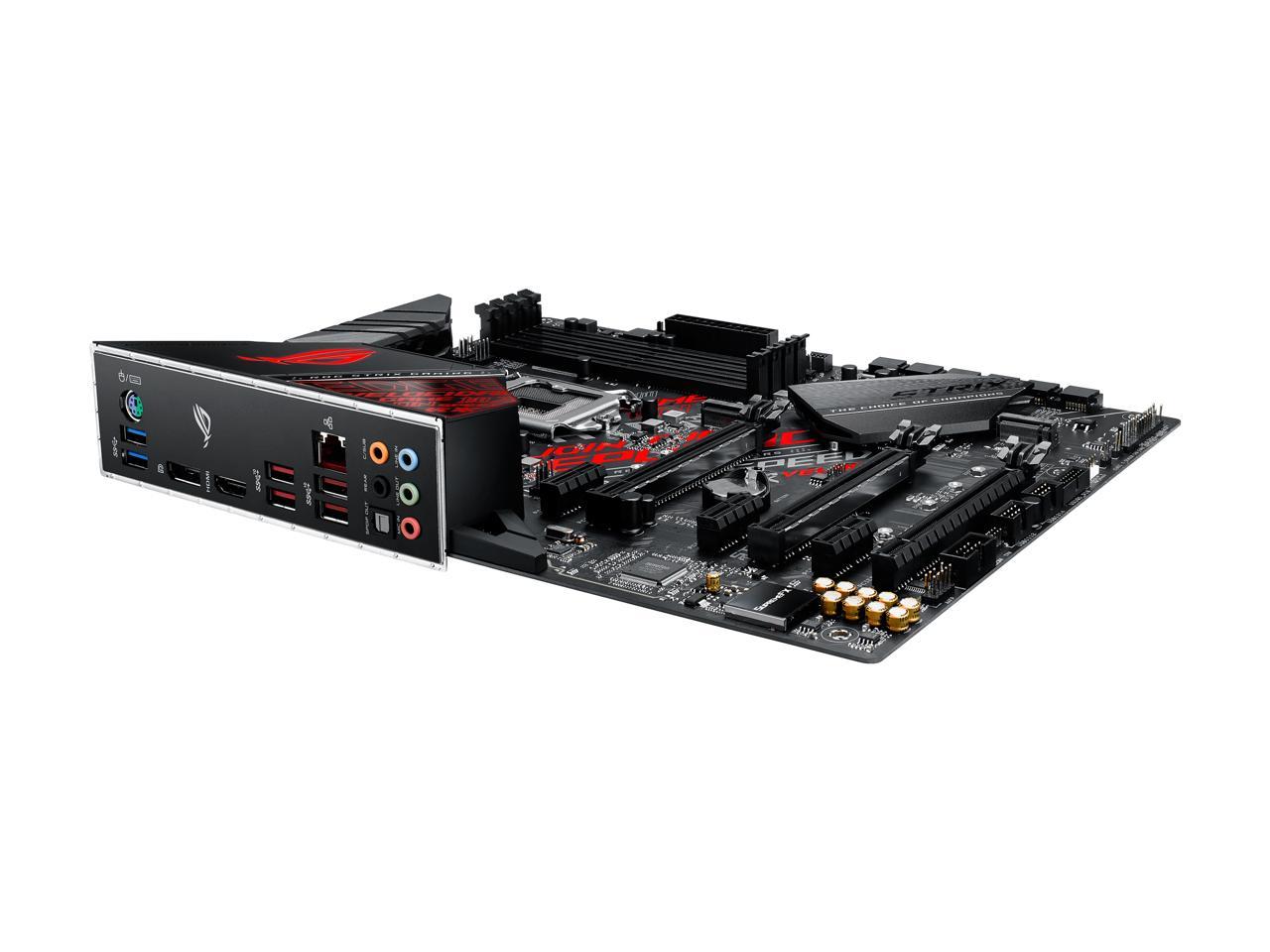

Name: Asus Rog Strix Z390-H Gaming Motherboard Lga1151 (Intel 8Th And 9Th Gen) Atx Ddr4 Dp Hdmi M.2 Usb 3.1 Gen2 Gigabit Lan
Brand: ASUS
SKU: Strix Z390-H Gaming
Price: 595.00 CAD
Availability: InStock

Asus Rog Strix Z390-H Gaming Motherboard Lga1151 (Intel 8Th And 9Th Gen) Atx Ddr4 Dp Hdmi M.2 Usb 3.1 Gen2 Gigabit Lan

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, and ASUS OptiMem II for better DRAM overclocking stability
8-channel HD audio with ROG exclusive SupremeFX S1220A codec driven by Japanese capacitors for warm and rich sound
Gamer's Guardian ensures component longevity with SafeSlot, ESD Guards and DRAM Overcurrent Protection
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

**Model**
Brand	ASUS
Series	ROG
Model	Strix Z390-H Gaming

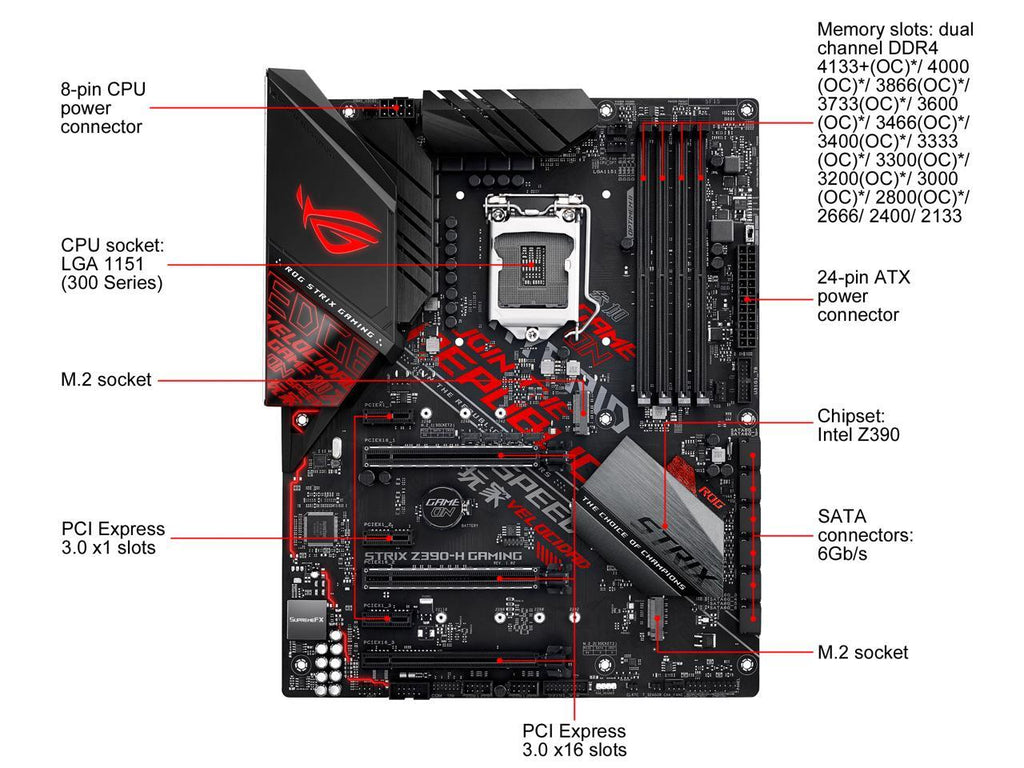

**Supported CPU**
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * Intel Turbo Boost Technology 2.0 support depends on the CPU type

**Chipsets**
Chipset	Intel Z390

**Onboard Video**
Onboard Video Chipset	Integrated Graphics Processor - Intel UHD Graphics support Multi-VGA output support: HDMI/DisplayPort - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz - Supports HDMI 1.4b withUHD, max. resolution 4096 x 2304 @ 24 Hz, 24 bpp or 3840 x 2160 @ 30 Hz, 24 bpp

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4133+(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	8th Gen Intel Core Processors 2 x PCIe 3.0 x16 slots (support x16, x8/x8) Intel Z390 Chipset 1 x PCIe 3.0 x16 slot (max. at x2 mode)
PCI Express x1	3 x PCIe 3.0 x1 slots

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes) 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps

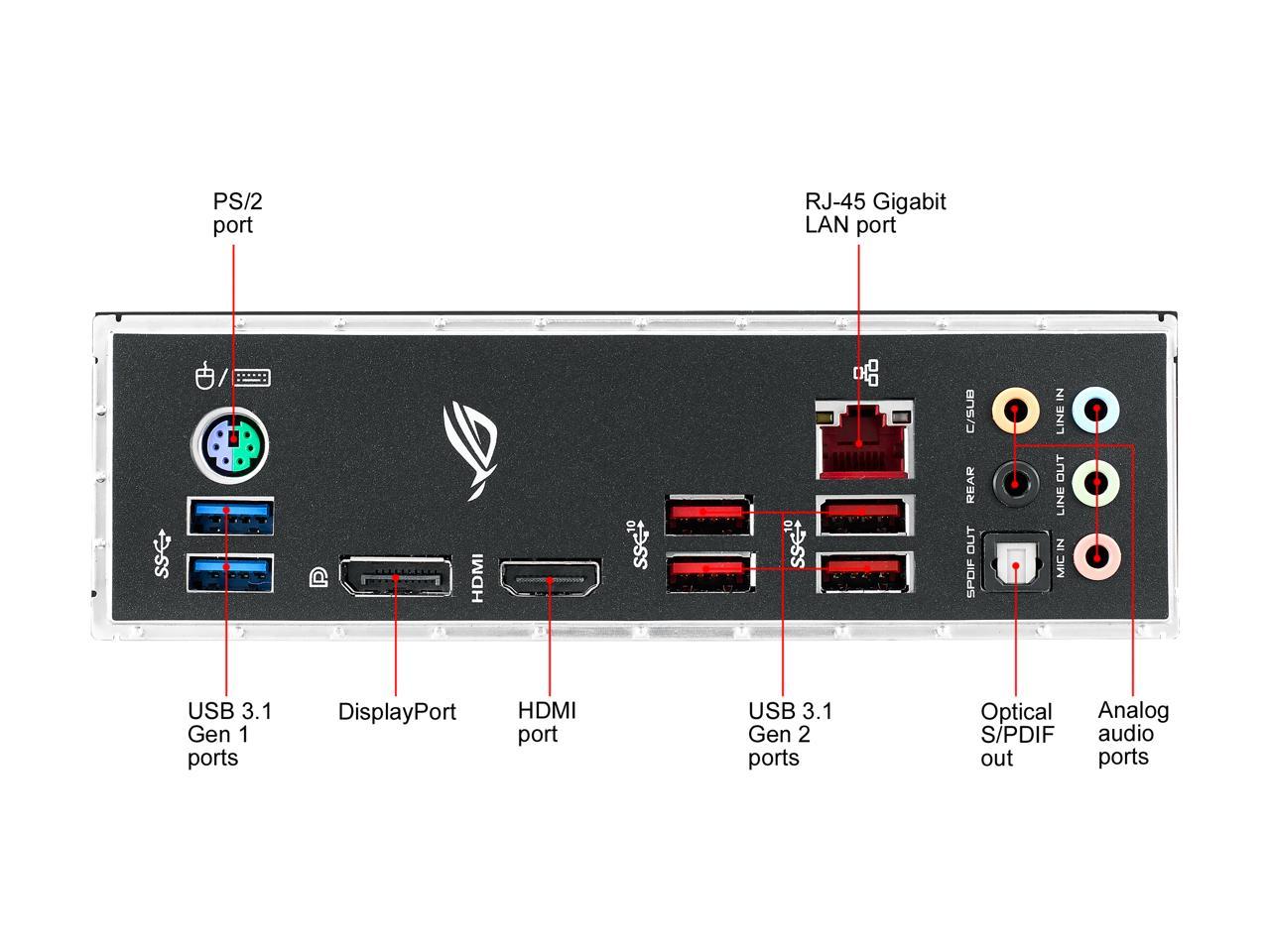

**Rear Panel Ports**
PS/2	1 x PS/2 keyboard/mouse port
HDMI	1 x HDMI
RJ45	1 x Anti-surge LAN (RJ45) port
DisplayPort	1 x DisplayPort
USB 3.1	2 x USB 3.1 Gen1 ports [blue] 4 x USB3.1 Gen2 ports (4 x Type-A [red])
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

**Internal I/O Connectors**
Onboard USB	2 x USB 3.1 Gen 1 header supports additional 4 USB 3.1 Gen 1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports
Other Connectors	1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 2 x 4-Pin Chassis fan connectors 1 x 4-Pin AIO_PUMP connector 1 x CPU_OV 1 x Thermal sensor connector 1 x Aura RGB headers 1 x MemOK!_II switch 1 x COM port 1 x TPM connector 1 x Front panel audio connector (AAFP) 1 x System panel connector 1 x Clear CMOS jumper

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB

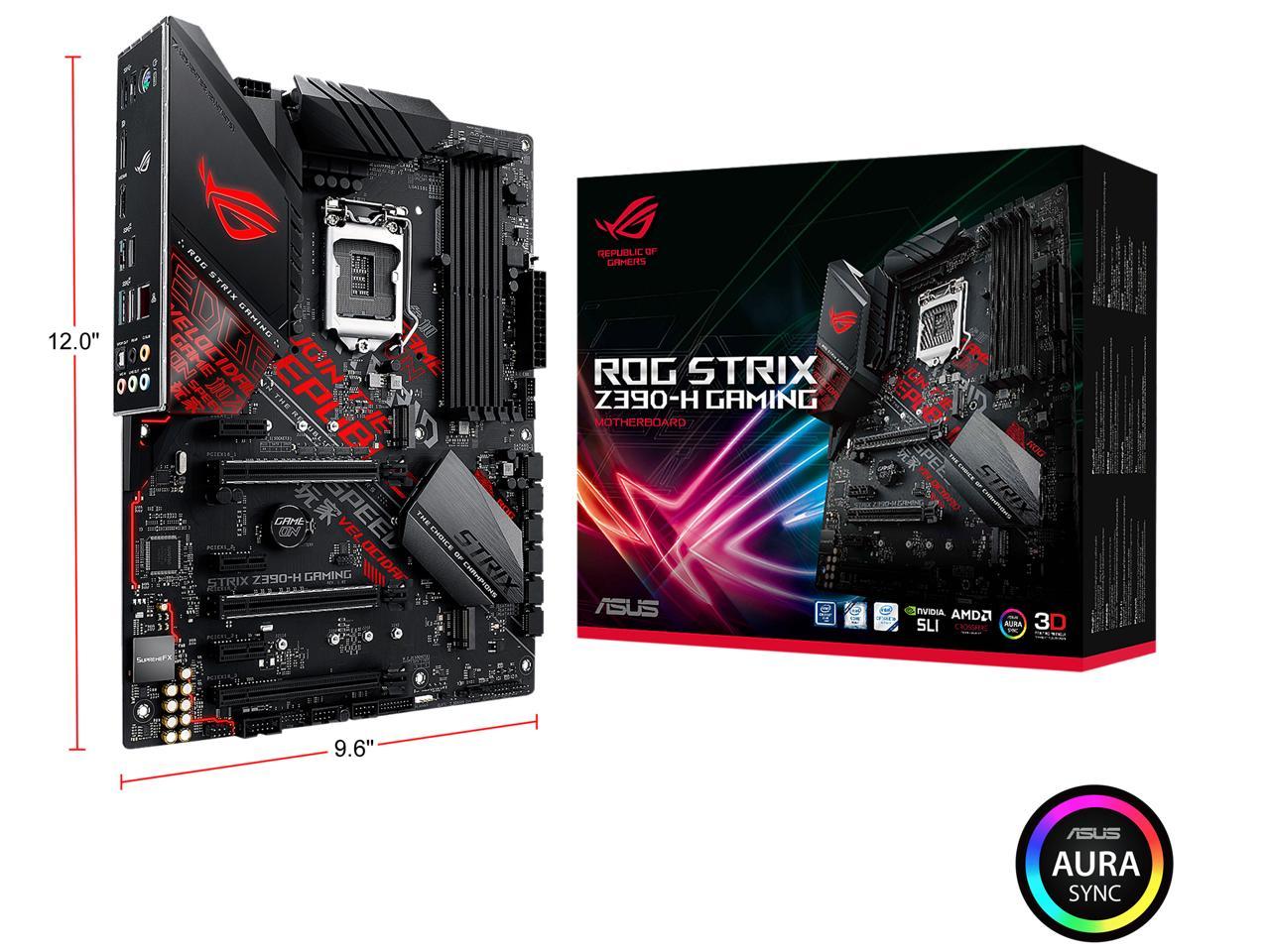

Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector

**Features**
Features	Multi-GPU Support: Supports NVIDIA 2-Way/Quad-GPU SLI Technology Supports AMD 3-Way/Quad-GPU CrossFireX Technology ROG Exclusive Features: ROG RAMCache III ROG GameFirst V ROG CPU-Z ROG Overwolf Special Feature: AURA - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer's Guardian - Procool - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on LAN, Audio and USB3.1/2.0 ports - Highly Durable Components ASUS Exclusive Features - Armoury Crate - Pre-mounted I/O Shield - OptiMem II - 3D Printing Friendly design - AI Suite 3 - MemOK! II - AI Charger ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design - Q-LED (CPU, DRAM, VGA, Boot Device LED) - Q-Slot - Q-DIMM BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Manageability: WOL, PXE Support DVD: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) Operating System Support: Windows 10 64-bit

**Packaging**
Package Contents	Accessories: Support DVD User guide 2 x 2-in-1 SATA 6Gb/s cables 1 x SLI HB Bridge (2-WAY-M) 1 x Extension Cable for RGB Strips (80cm) 1 x Fan holder 1 x M.2 Screw Package 1 x ROG Strix series sticker 1 x ROG Strix thank you card 1 x Pack of cable tie

General Information

UPC	192876122426

Asus Rog Strix Z390-H Gaming Motherboard Lga1151 (Intel 8Th And 9Th Gen) Atx Ddr4 Dp Hdmi M.2 Usb 3.1 Gen2 Gigabit Lan

Description

Asus Rog Strix Z390-H Gaming Motherboard Lga1151 (Intel 8Th And 9Th Gen) Atx Ddr4 Dp Hdmi M.2 Usb 3.1 Gen2 Gigabit Lan
