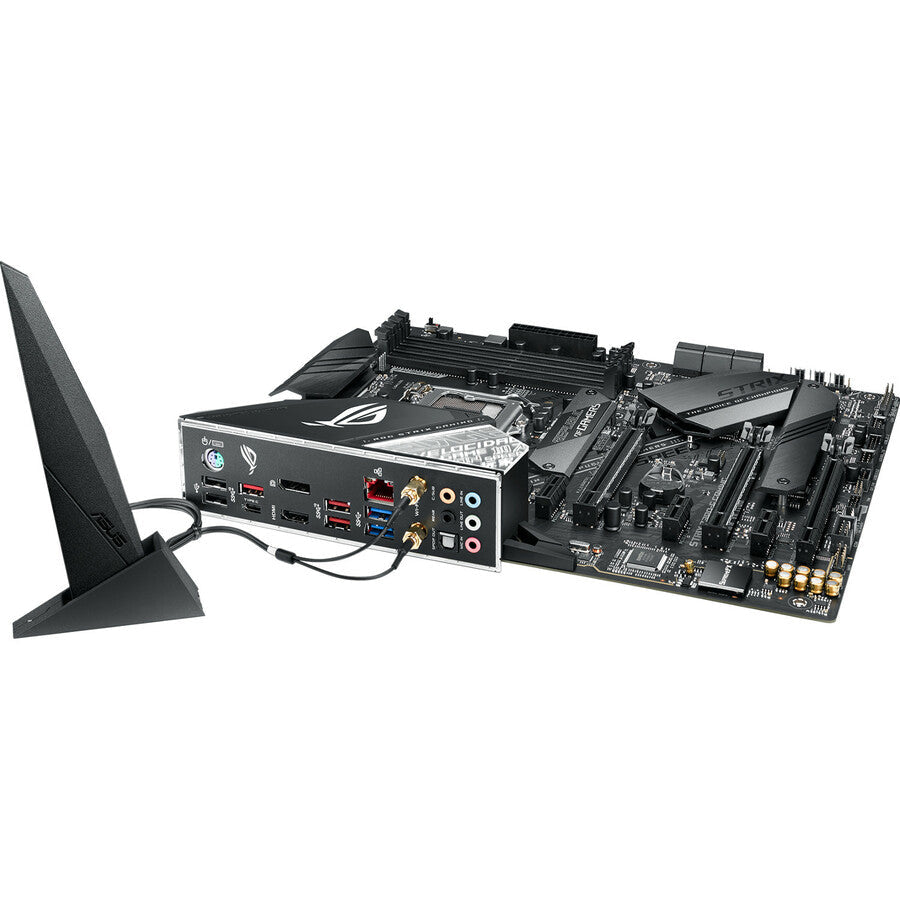

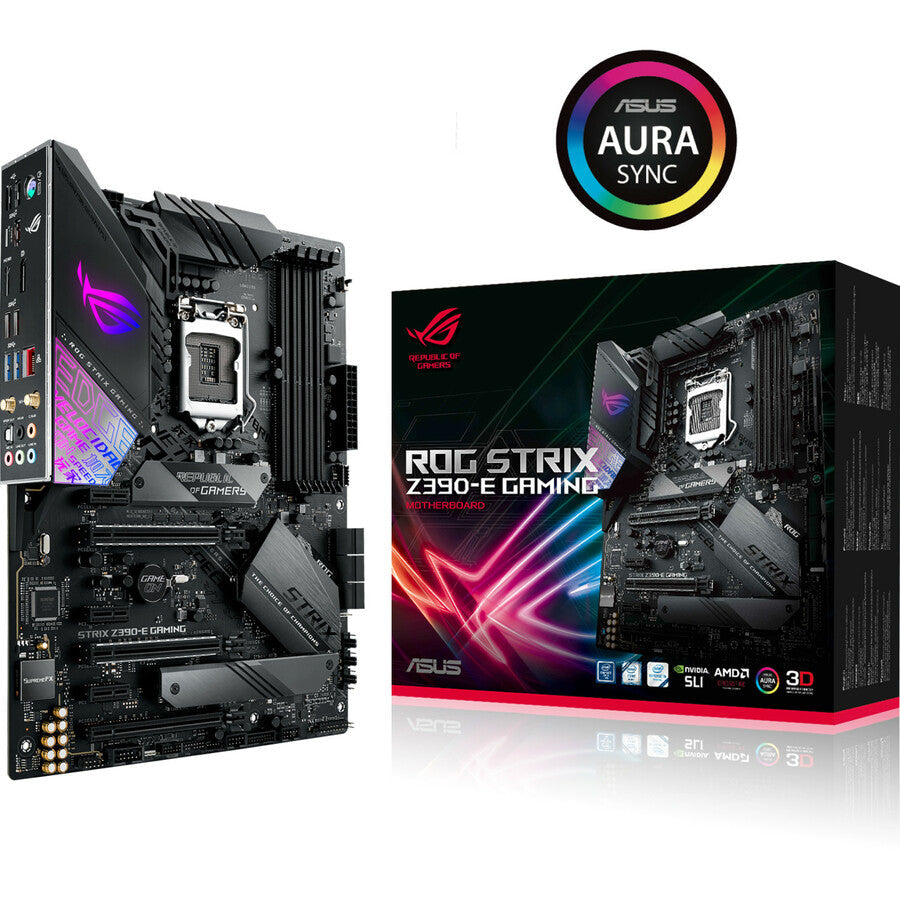

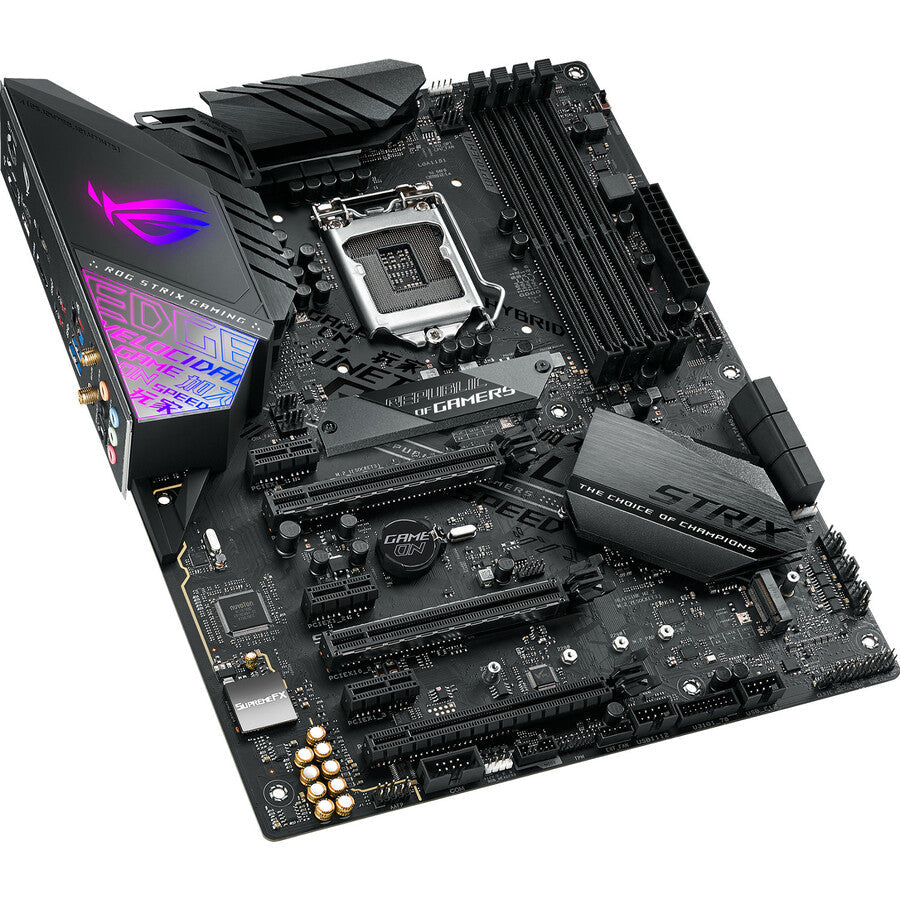

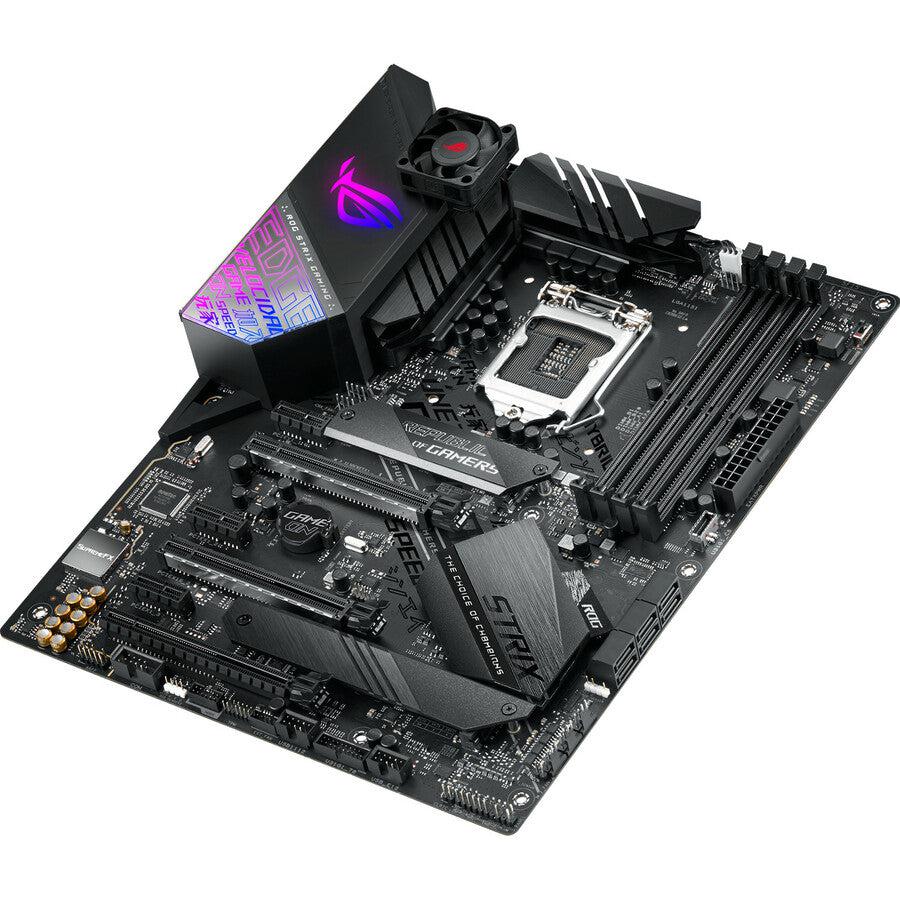

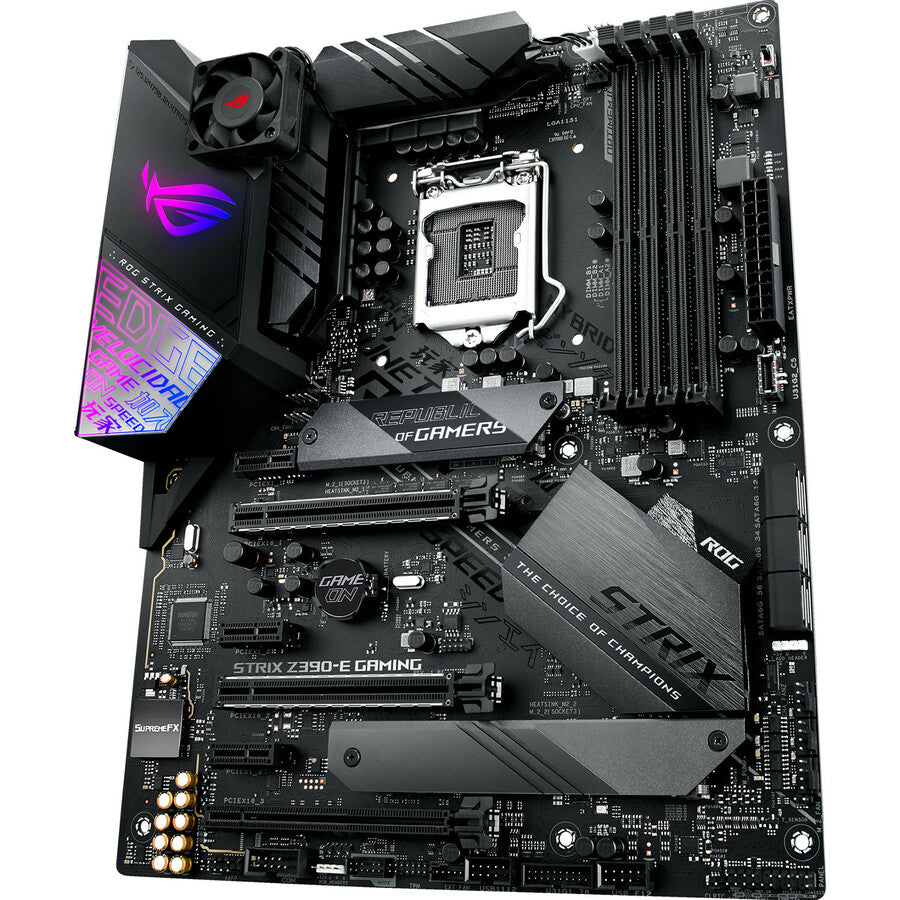

Name: Asus Rog Strix Z390-E Gaming Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard
Brand: ASUS
SKU: ROG Strix Z390-E Gaming
Price: 858.00 CAD
Availability: InStock

Asus Rog Strix Z390-E Gaming Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

ntel Z390
Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
5-Way Optimization w/ 1-click OC
AURA Sync RGB

**Model**
Brand	ASUS
Series	ROG
Model	Strix Z390-E Gaming

**Supported CPU**
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * Intel Turbo Boost Technology 2.0 support depends on the CPU type

**Chipsets**
Chipset	Intel Z390

**Onboard Video**
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x1	3 x PCIe 3.0/2.0 x1

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)* 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) * When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX S1220A High Definition Audio CODEC
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps
Wireless LAN	Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
Bluetooth	Bluetooth v5.0

**Rear Panel Ports**

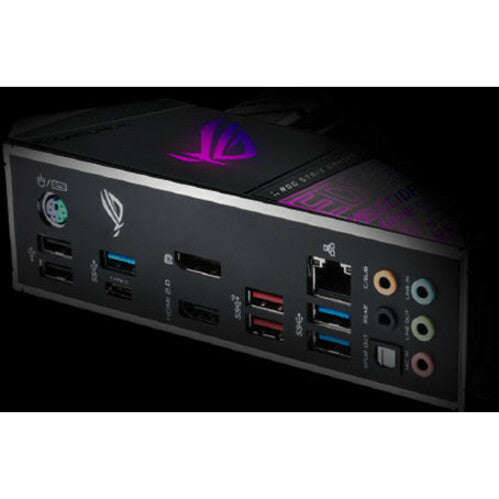

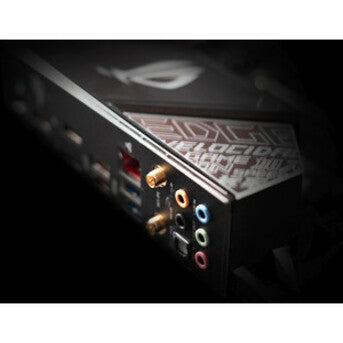

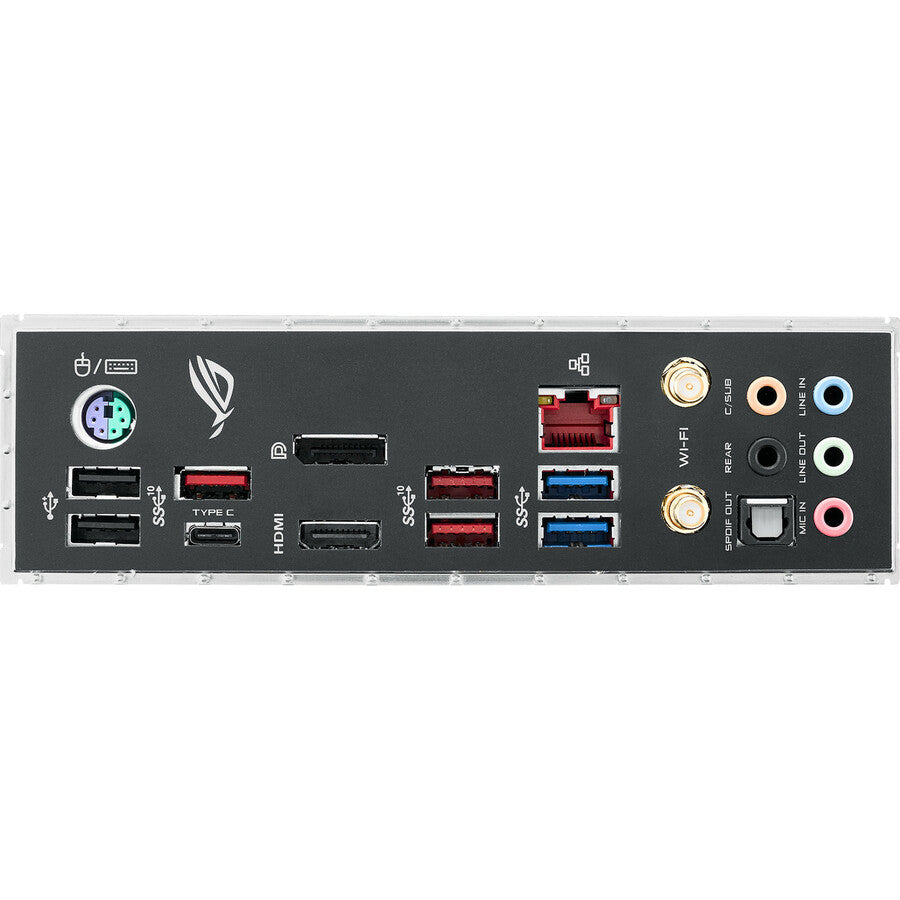

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (3 x Type-A + 1 x USB Type-C) 2 x USB 3.1 Gen 1 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module

**Internal I/O Connectors**
Onboard USB	1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

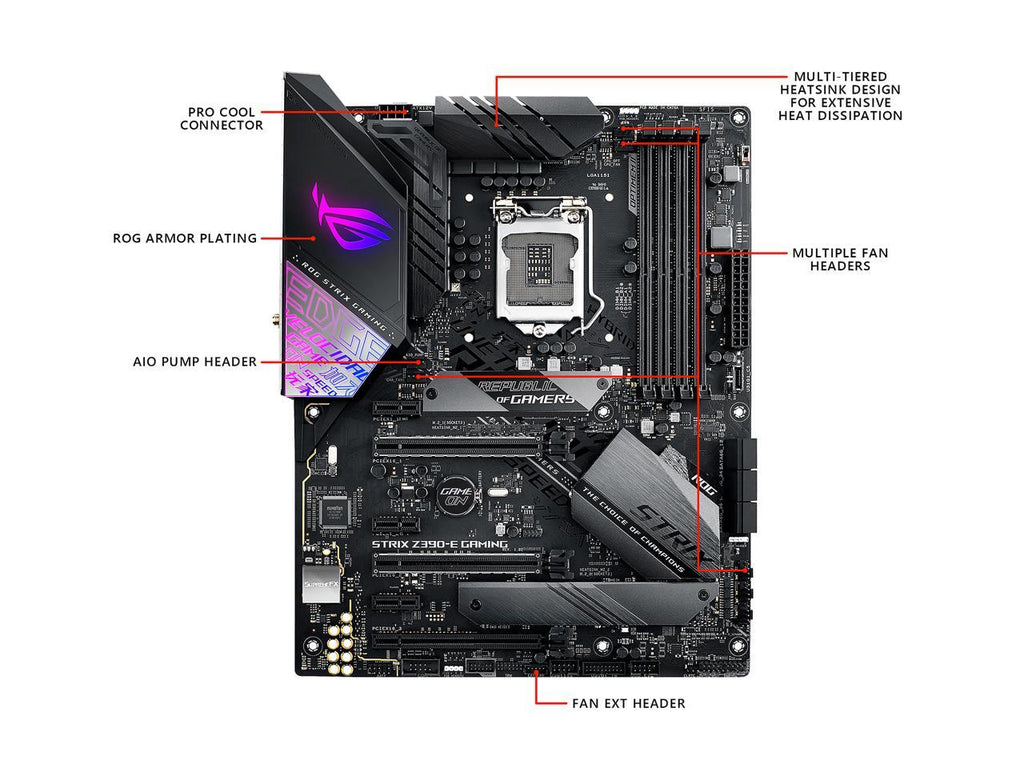

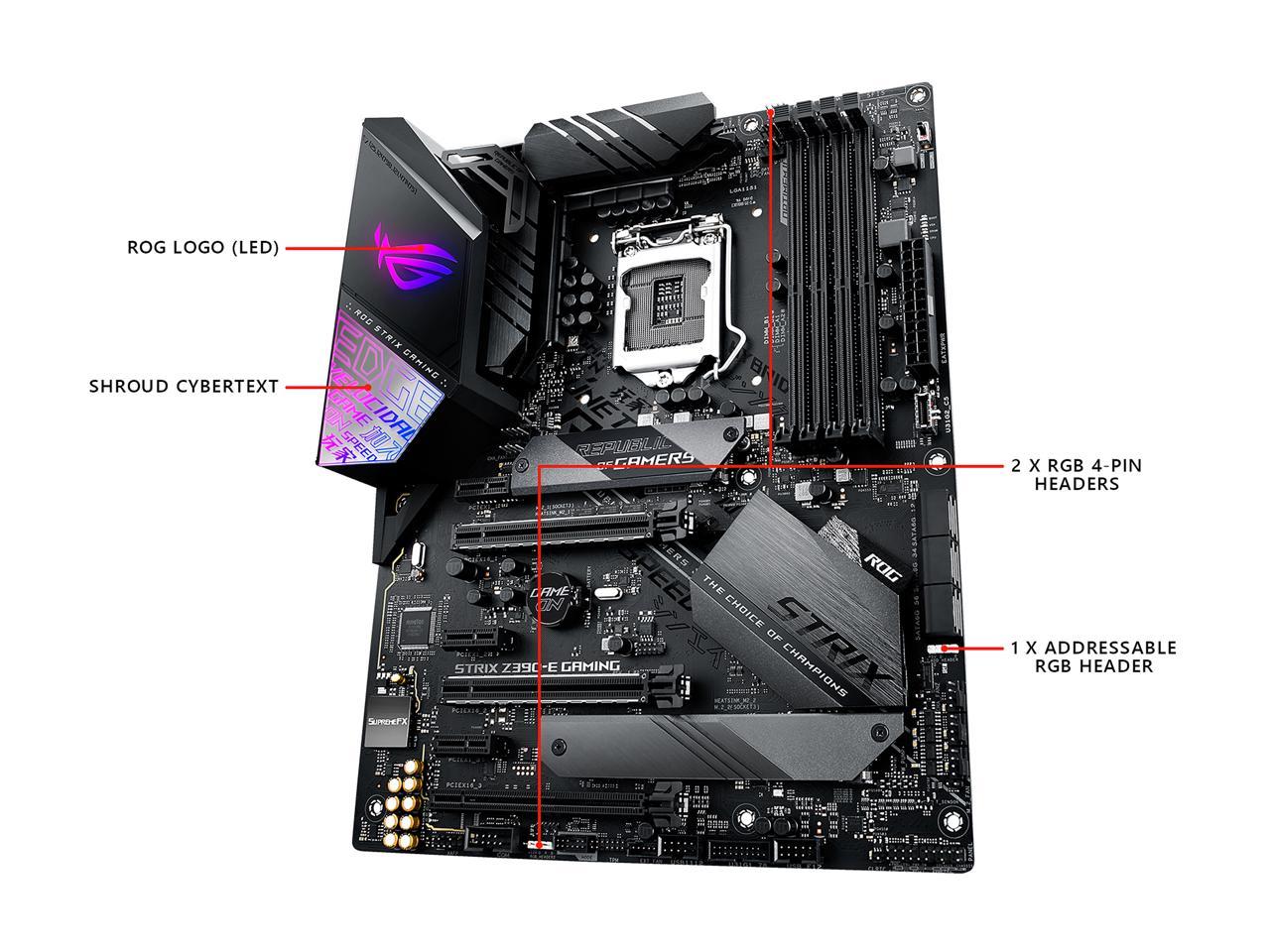

Other Connectors	1 x Aura Addressable Strip Header(s) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x 5-pin EXT_FAN (Extension Fan) connector 1 x MemOK! II switch(es) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x 14-1 pin TPM connector 1 x COM port header 1 x AIO PUMP Header

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

**Features**

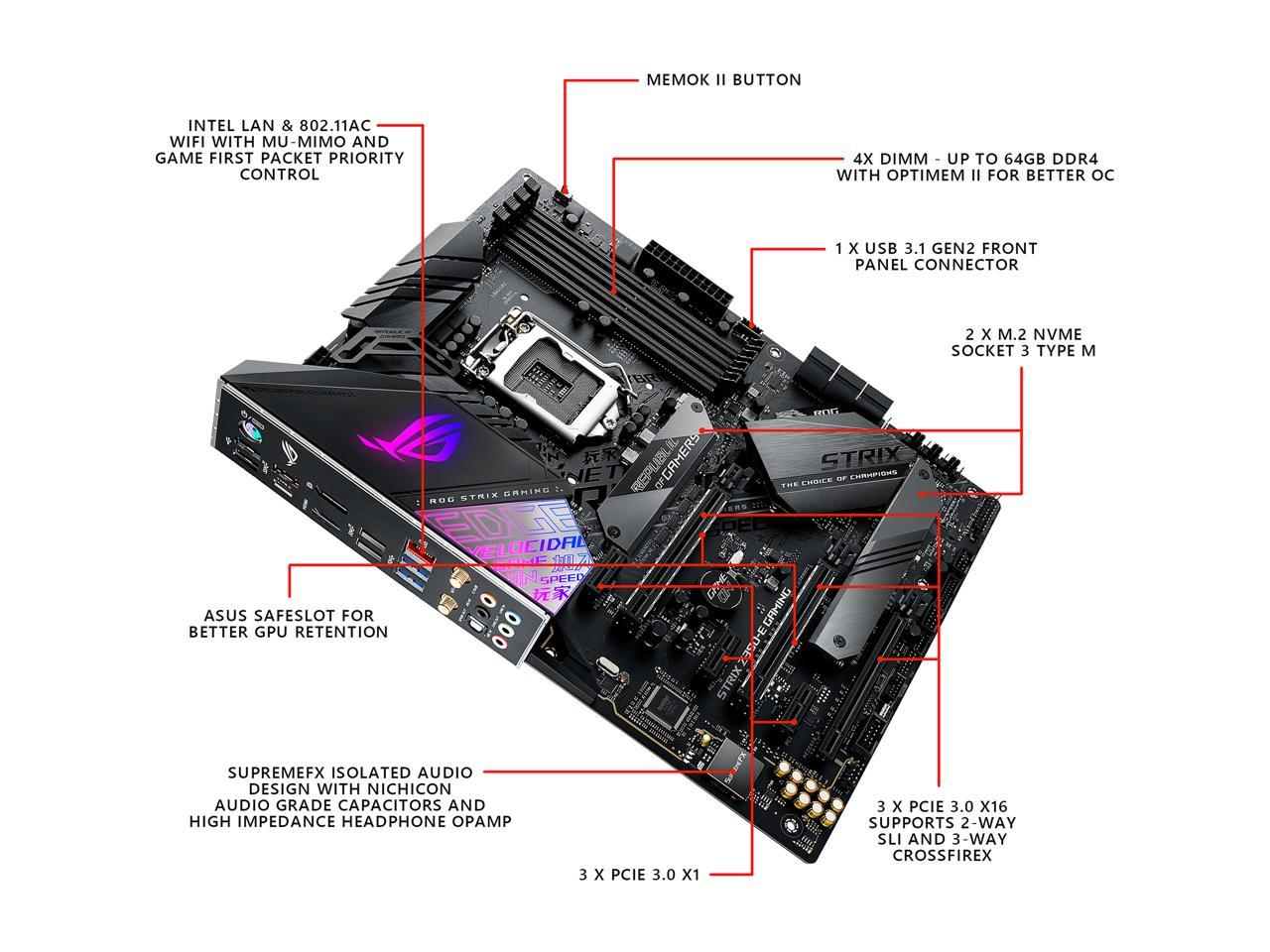

Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III Special Features: OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AI Overclocking ASUS Optimem II: - Improved DDR4 Stability AURA: - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features: - MemOK! II - AI Suite 3 - Ai Charger - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics: - 3D printing friendly - AURA-RGB Lighting Digi+VRM M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) DIY Friendly Design - Procool - SafeSlot - Digi+ VRM - DRAM Overcurrent Protection - Highly Durable components - ESD Guards BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Manageability: WOL, PXE Operating System: Windows 10 64-bit

**Packaging**
Package Contents	Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x CABLE TIE BLACK 1 x SLI HB BRIDGE (2-WAY-M) 1 x ROG Strix stickers 1 x Assistant Fans (40mm) 1 x screws for Assistant Fan(s) 1 x ROG Door Hanger(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s)

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	ROG Strix Z390-E Gaming
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus ROG
Product Line	Strix
Product Model	Z390-E Gaming
Product Name	Strix Z390-E Gaming Desktop Motherboard
Product Type	Desktop Motherboard
UPC	192876122839

Chipset

Chipset Manufacturer	Intel

Bluetooth	Yes

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	8

Width	12"
Depth	9.6"

Miscellaneous

Package Contents

Strix Z390-E Gaming Desktop Motherboard
User's Manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x CABLE TIE BLACK
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x Assistant Fans(40mm)
1 x screws for Assistant Fan(s)
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)

Environmentally Friendly

Yes

Warranty

Limited Warranty	3 Year

Asus Rog Strix Z390-E Gaming Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

Description

Asus Rog Strix Z390-E Gaming Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard
